6.
Using a wrench, lower the front of the deck
by loosening the jam nuts (c) on the back of
the pivot pin (b) and then tighten the lock
nut (a) on the front of the pivot pin to lower
the front of the deck and secure in place. See
Figure 4-9.
7.
The deck is properly leveled when the front
tip of the blade is 1/4" lower than the rear tip.
Adjusting the Front Gauge Wheels
WARNING
Keep hands and feet away from the discharge opening of
the cutting deck.
The front gauge wheels on the tractor deck are
an anti-scalp feature, and should not ride on
the ground. The front gauge wheels should be
approximately 1/4-1/2" above the ground when
the deck is set in the desired height setting.
Using the deck lift handle, set the deck in the
desired height setting, then check the gauge
wheel distance from the ground below. If
necessary adjust the front gauge wheels as follows:
1.
Visually check the distance between the
front gauge wheels and the ground. If the
gauge wheels are near or touching the
ground, they should be raised. If more
than 1/2" above the ground, they should
be lowered.
2.

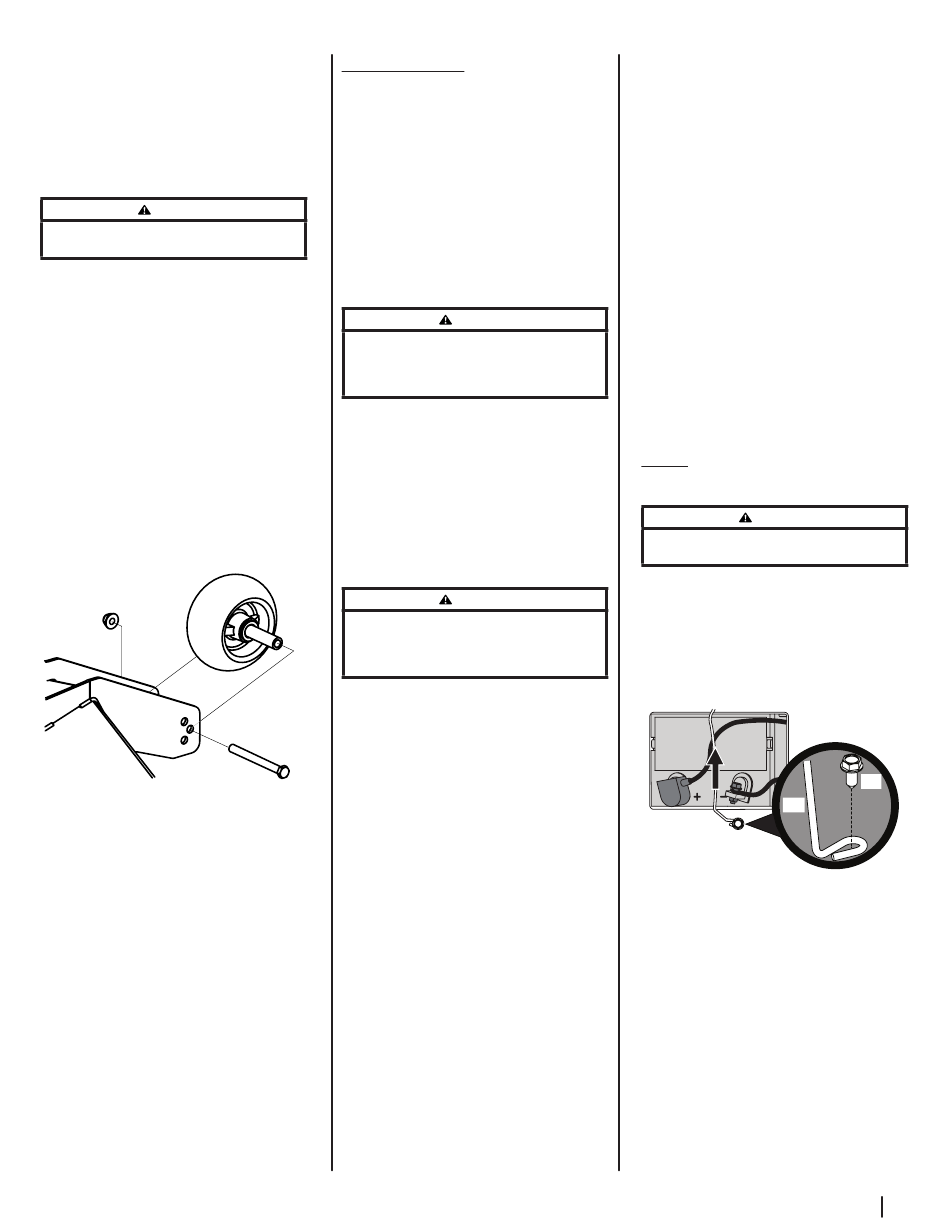

Remove the lock nut (a) securing one of the
front gauge wheel (b) hex screws (c) to the
deck. Remove the front gauge wheel (b),
hex screw (c) and spacer (d). See Figure 4-10.
(b)
(a)
(e)
Figure 4-10
3.
Insert the hex screw (c) into one of the three
index holes in the front gauge wheel bracket
(e) that will give the front gauge wheel (b) a
1/4-1/2" clearance with the ground.
4.
Note the index hole of the just adjusted
front gauge wheel (b), and adjust the other
front gauge wheel (b) into the respective
index hole of the other front gauge wheel
bracket (e).
Parking Brake Adjustment
If the tractor does not come to a complete stop
when the brake pedal is completely engaged,
or if the tractor's rear wheels can roll with the
parking brake applied (and the hydrostatic relief
valve open), the brake is in need of adjustment.
See your authorized dealer to have the brake
properly adjusted.
Off-Season Storage
Tractor Storage
If your tractor is not going to be operated for an
extended period of time (30 days to approximately
six months), the tractor should be prepared for
storage. Store the tractor in a dry and protected
location. If stored outside, cover the tractor
(including the tires) to protect it from the
elements. The procedures outlined below should
be performed whenever the tractor is placed
in storage.
1.
Change the engine oil and filter following
the instructions provided in the Engine
Operator's Manual.
Never store the tractor with fuel in the tank indoors or in
poorly ventilated enclosures, where fuel fumes may reach
an open flame, spark, or pilot light as on a furnace, water
heater, clothes dryer, etc.
2.
Service the engine as instructed in the separate
Engine Operator's Manual.
3.
Engines stored between 30 and 90 days
need to be treated with a gasoline stabilizer
and engines stored over 90 days need to
be drained of fuel to prevent deterioration
and gum from forming in fuel system or on
essential carburetor parts. If the gasoline in
your engine deteriorates during storage, you
may need to have the carburetor, and other
fuel system components serviced or replaced.
Drain fuel only into an approved container outdoors, away
(d)
from an open flame. Allow engine to cool. Extinguish
cigarettes, cigars, pipes, and other sources of ignition prior
to draining fuel.
4.
Remove the spark plugs and pour
approximately one ounce of oil into each
cylinder. Crank the engine one or two turns
to spread the oil evenly on the cylinder
walls. Replace the spark plugs.
(c)
5.
Clean the engine and the entire
tractor thoroughly.
NOTE: Use of a pressure washer or garden
hose is not recommended to clean your
tractor. They may cause damage to electrical
components, spindles, pulleys, bearings or
the engine. The use of water will result in
shortened life and reduce serviceability.
6.
Sharpen the blades so that the tractor will
be ready to use when needed.
7.
Protect the metal surfaces. Repair scratches
with the appropriate touch-up spray
paint. Brush a rust preventive oil on any
unpainted surfaces including the pulleys
and blades (be careful not to get any oil on
the drive belts).
8.
Clean and fully charge the battery, then
disconnect the negative cable at the battery
to prevent possible discharge. Recharge the
battery periodically when in storage.
NOTE: Remove the battery if exposed
to prolonged periods of sub-freezing
temperatures. Store in a cool, dry location
where temperatures are above freezing.
WARNING
WARNING
9.
Lubricate all lubrication points.
10.
Jack the tractor up and store it on blocks to
take the weight off of the tires.
Removing the Tractor from Storage
1.
Check the engine oil.
2.
Fully charge the battery, lower tractor
off blocks and inflate the tires to the
recommended pressure.
3.
Remove the spark plugs and wipe them
off. Using the starter, crank the engine to
pump the excess oil out of the spark plug
holes. Replace the spark plugs and the
ignition leads.
4.
If drained before storing, fill the fuel tank
with clean, fresh gasoline.
5.
Check the level of the engine oil in the
crankcase and the hydraulic reservoir tank.
6.
Start the engine and allow to idle for
a few minutes to ensure engine is
operating properly.
7.
Drive the tractor without a load to
make certain all the tractor systems are
functioning properly.
Service
Battery Removal
WARNING
Battery posts, terminals, and related accessories contain
lead and lead compounds. Wash hands after handling.
The battery is located beneath the seat frame. To
remove the battery:
1.
Remove the hex washer screw (a) securing the
battery hold-down bracket (b) to the frame.
Then flip the battery hold-down bracket (b)
up to free the battery. See Figure 4-11.
(b)
Figure 4-11
2.
Remove the hex cap screw and sems nut
securing the black negative battery lead
to the negative battery post (marked NEG).
Move the cable away from the negative
battery post.
3.
Remove the hex cap screw and sems nut
securing the red positive battery lead to the
positive battery post (marked POS).
4.
Carefully lift the battery out of the tractor.
5.
Install the battery by repeating the above
steps in the reverse order.
S
4 — P
ection
roduct
(a)
c
19
are
