ASSEMBLY INSTRUCTIONS

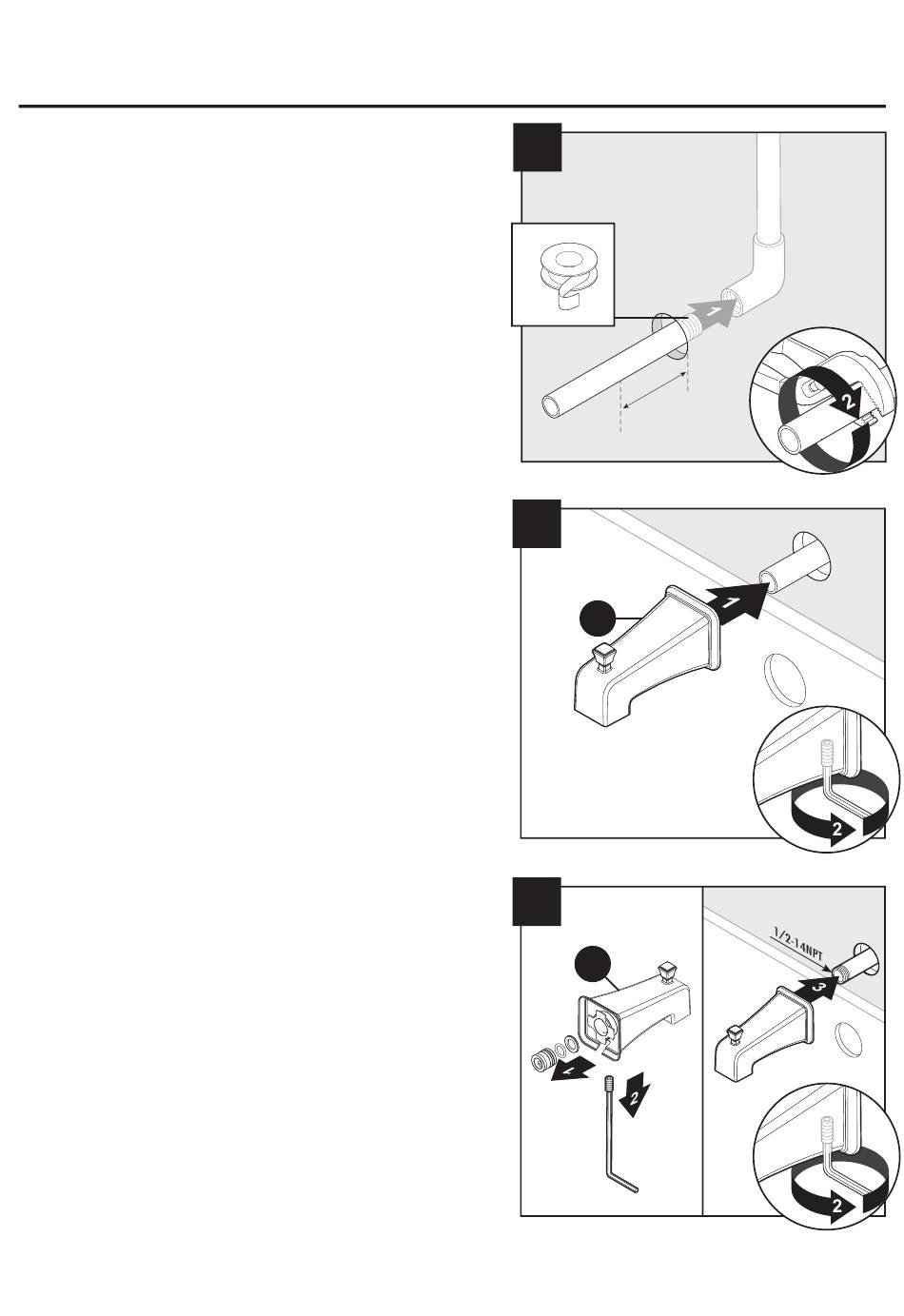

6. Install stub-out pipe (not included) for spout.
Use proper length stub-out pipe so pipe
threads will extend 1-1/2 to 2 inches beyond
finished wall.
7a. Slipped installation: Install tub spout (I).
Tighten set screw using hex wrench.
7b. Threaded installation: Apply thread tape on
the pipe nipple threads. Remove the adapter
assembly (including plastic adapter, plastic
washer, O-Ring), back out the set screw. Slide
spout (I) over the pipe with the spout tight to the
wall, tighten the set screw.
