MID LEVEL SPREADER ADJUSTMENT

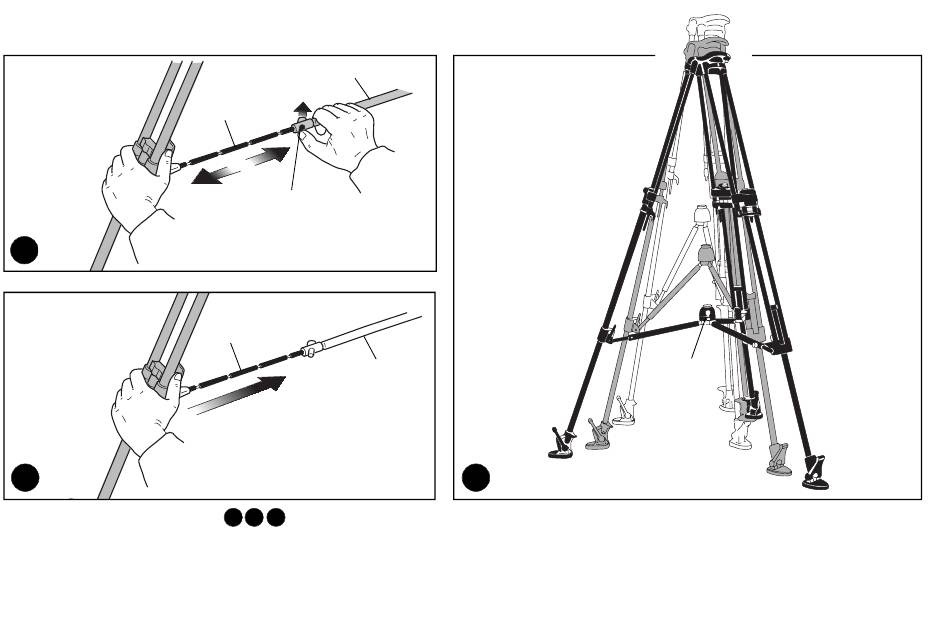

To adjust the spreader "G" (fig. 7), push in the buttons "H" (fig. 7). The spreader has 5 different working positions: the pressure on the button "H" (fig. 7), releases the
mechanism, allowing spreader adjustment "J" in five steps. To fold the spreader (fig. 8), lift the center part of the spreader while closing the legs.
It's possible to reduce or increase the spreader angle of the legs by rotating clockwise or anticlockwise the cap "Y" (fig. 9) until you reach the angle required.
