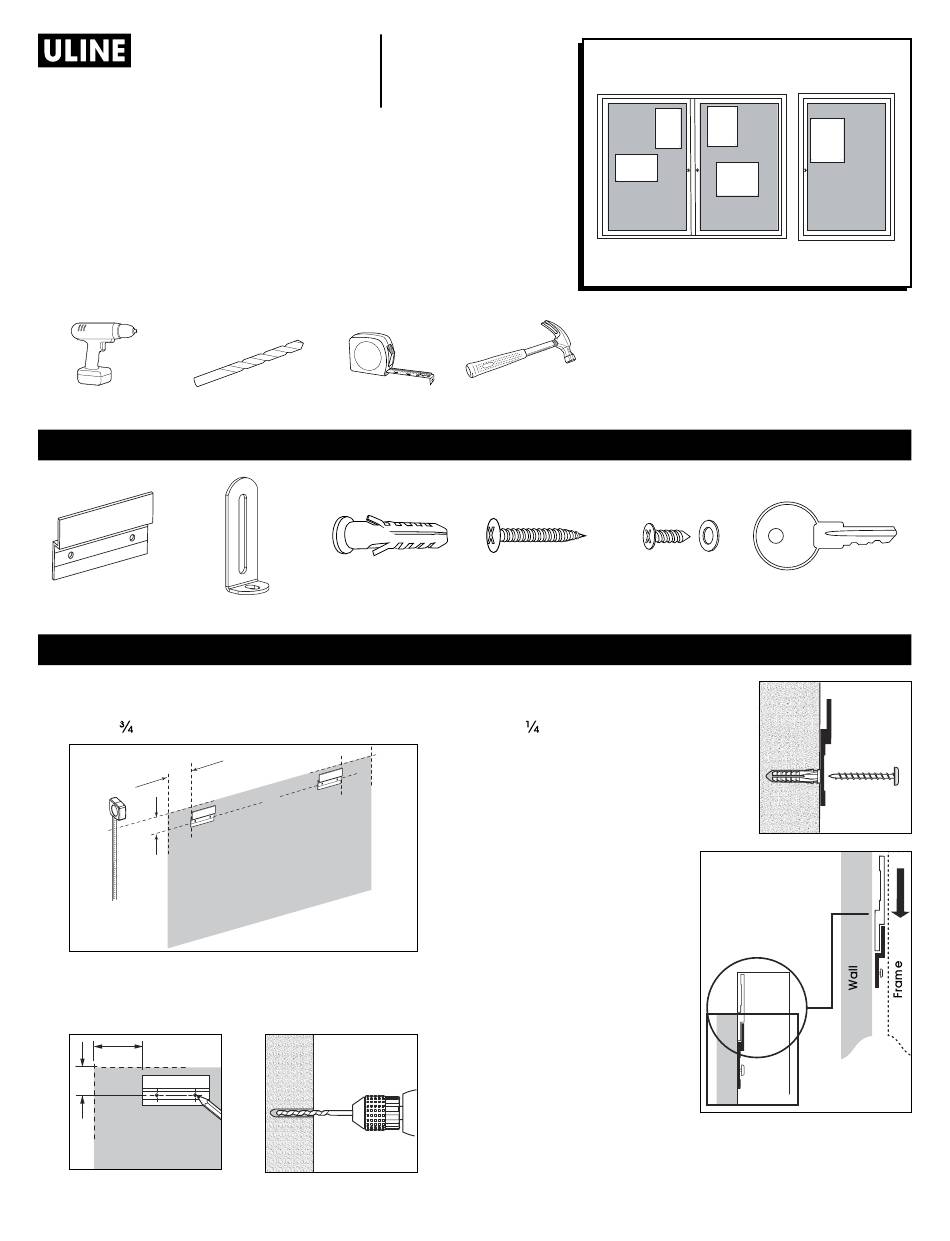

H-3040, H-3041
ENCLOSED CORK BOARD
TOOLS NEEDED
Drill
Hanging Bracket x 2
L-Bracket x 2
1.
Determine board location. Position top hanging
brackets 6" from outside edge of board with bracket
holes 2 " from top of board. (See Figure 1)
6"
2¾"
2. Mark wall at centers of bracket holes. (See Figure 2)
3. Drill holes for each bracket in marked locations
using a 1/4" drill bit. (See Figure 3)
6"
2¾"
Figure 2
PAGE 1 OF 6
1/4" Drill Bit
Tape Measure
Drywall Anchor x 6
TOP HANGING BRACKET MOUNTING
Figure 1
1/4" Drill Bit
Figure 3
1-800-295-5510
uline.com
Hammer
PARTS
1¼" Screw x 6
4. Insert wall anchors into holes,
flush with the wall. Insert
1 " screws through hanging
brackets, into the wall anchors.
Tighten firmly.
(See Figure 4)
5. Lower board onto the
top hanging brackets
so built-in brackets on
upper board frame are
engaged.
(See Figure 5)
Para Español, vea páginas 3-4.
Pour le français, consulter les pages 5-6.
1/4" Screw and
Key x 2
Washer x 2
Figure 4
Side View
Figure 5
0724 IH-3040
