Uline H-8404 Instructions De Montage

H-8404
L-SHAPED PACKING
TABLES
TOOLS NEEDED
Phillips Head
Screwdriver
Flat Head Screwdriver
3
2
4
1
8
BASE TABLE
1. Insert adjustable feet (1) into legs (2) and slide into
place at desired height.
NOTE: If desired, insert locking tabs through legs
and adjustable feet to lock feet into place.
2. Place legs (2) in upright position. Legs should be
placed approximately 65" apart.
3. Attach 72" stringer (3) to table legs using center 4 holes
in back legs. Fasten with eight bolts, lock washers and
nuts.
PAGE 1 OF 9
1-800-295-5510
uline.com
7/16" Wrench 3/8" Wrench
10 mm Wrench
(For Non-Steel Top Assembly)
Drill
3/16" Drill Bit
(Optional)
(Optional)

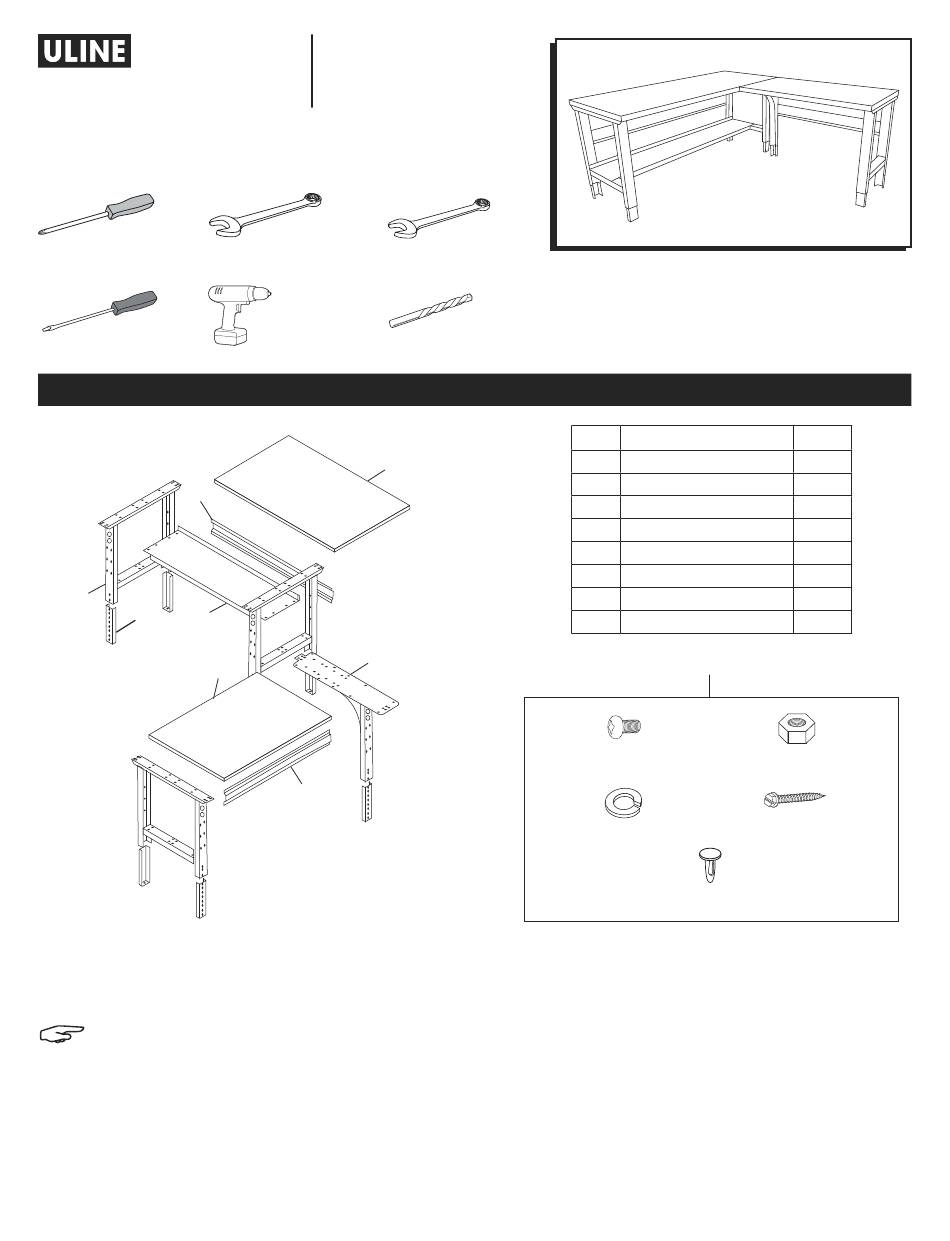

LEGS AND FRAME ASSEMBLY
5
6
7
# DESCRIPTION
1 Adjustable Foot
2 Leg
3 72" Stringer
4 Lower Shelf
5 72" Tabletop
6 L-Leg
7 48" Stringer
8 48" Tabletop
1/4"-20 x 5/8" Bolt x 20
Lock Washer x 20
Locking Tab x 7
4. Place lower shelf (4) across braces of legs. Attach lower
shelf using four nuts and bolts.
5. Place 72" tabletop (5) on a smooth, non-marring
surface with top side facing down.
6. Flip the assembled frame upside down and line up
with the pre-drilled holes on the bottom side of the top.
Para Español, vea páginas 4-6.
Pour le français, consulter les pages 7-9.
QTY
7
3
1
1
1
1
1
1
Hardware Kit
1/4"-20 Nut x 20
#14 x 3/4" Wood Screw x 38
