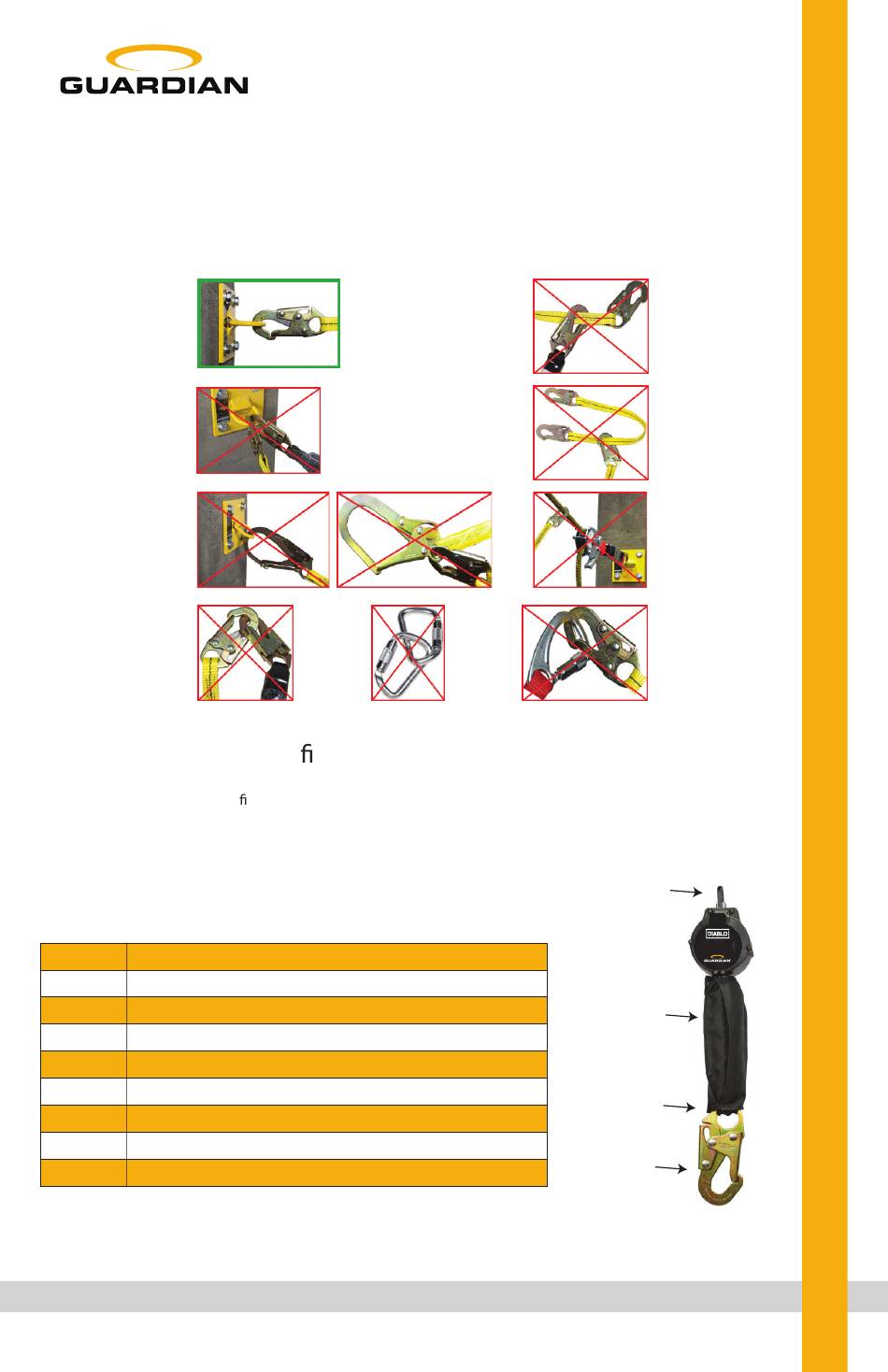

Compatibility: When making connections with Diablo SRL, eliminate all possibility of roll-out. Roll-out occurs
when interference between a hook and the attachment point causes the hook gate to unintentionally open
and release. All connections must be selected and deemed compatible with Diablo SRL by a Competent
Person. All connector gates must be self-closing and self-locking, and withstand minimum loads of 3,600 lbs.
See the following for examples of compatible/incompatible connections:
Connector
closed and
locked to
D-ring. OK.
Two connectors
to same
D-ring. NO.
Incompatible
or irregular
application,
which may
increase risk
of roll-out. NO.
Two or more
snap hooks or
carabiners
connected to
each other. NO.
Components and Speci cations
Materials: stainless steel, glass- lled nylon, polyester, and galvanized steel or aluminum.
Average arrest force: 1,350 lb.
Maximum arrest force:1,800 lb.
Maximum arrest distance: 47 in.
Minimum fall clearance: 7 ft 5 in.
Part #
11080CSA Diablo 6' Single Leg SRL w/Steel Snap Hook
11081CSA Diablo 6' Single Leg SRL w/Aluminum Snap Hook
11082CSA Diablo 6' Single Leg SRL w/Aluminum Rebar Hook
11083CSA Diablo 6' Single Leg SRL w/Steel Rebar Hook
11084CSA Diablo 6' Double Leg SRL Kit w/Steel Snap Hook
11085CSA Diablo 6' Double Leg SRL Kit w/Aluminum Snap Hook
11086CSA Diablo 6' Double Leg SRL Kit w/Aluminum Rebar Hook
11019
11087CSA Diablo 6' Double Leg SRL Kit w/Steel Rebar Hook
3
Description
Connector
to integral
lanyard.
NO.
Connector
directly to
webbing.
NO.
Connector
directly to
horizontal
lifeline. NO.
Connection
Point
Shock Absorber
w/ Cover
Lifeline
(4/5" width)
Connector
