8.Operations

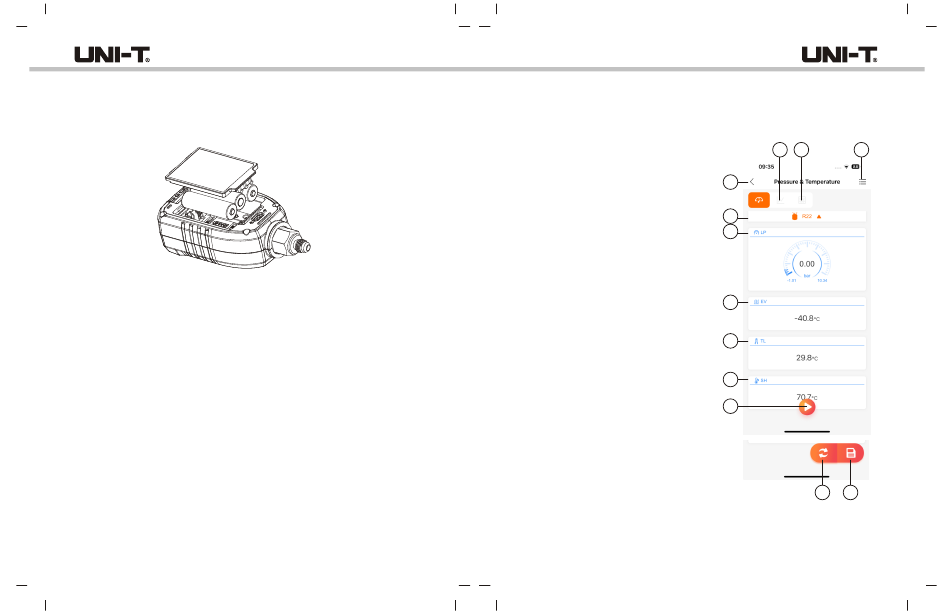

1) Battery Installation
a)Toggle right to open the battery cover.
b) Install the battery as per the polarity and cover it.
2) Basic Operation
a) Long press "POWER" button to power on the device, and pressure value will be
showed on the screen.
b) Simultaneously long press "POWER" and "Bluetooth" buttons to switch high or
low pressure.
c) The pressure value should be 0 after power-on, if not, simultaneously long press
"Unit" and "Record" buttons to zeroing.
d) Use the conventional fluorine tube with 1/4" SAE connector, and connect the
Pressure Gauge to the air-conditioner system.
e) 10 preset refrigerant types are optional in the device, and can be changed through
phone APPs connecting Bluetooth.
f) Connect mobile APP iENV to view the data, export data report, etc.
g) Connecting UT-T16 temperature clamp, short press "Bluetooth" button, and the
Evaporating temperature/Low-pressure temperature (TL)/Superheat (SH in low
pressure), or the Condensing temperature/High-pressure temperature (TH)/
Subcool (SC in high pressure) will be circularly showed on the temperature
display area.
Notes: TL/SH and TH/SC can be measured by connecting the temperature clamp
UT-U16; if fails to connect the temperature clamp, - - - will be showed.
7
UT336P UT336P
3) APP Use
a) Long press "Bluetooth" button, the Bluetooth icon will be flashing to connect with
① Return: Disconnect and back to the
② Refrigerant Types: Users can set
③ High-pressure/Low-pressure value:
Automatically displays in the APPs
after switching high/low pressure.
④ Condensing/ Evaporating
temperature: Automatically displays
in the APPs after switching high/low
pressure.
⑤ High-/Low-pressure temperature:
⑥ Superheat/Subcool:
⑦ Record: Start to record or stop
recording (The current data is only
recorded by separate APP, not
synchronously recorded by device)
⑧ Refresh: Restart to record (The icon
will be showed after stopping
recording.)
⑨ Save: Edit the recordings;
⑩ Settings Menu
⑪ Interface of Data Details:
⑫ Interface of Line Chart:
mobile APP iENV, and then enter the main interface (real-time).
connecting interface.
and update 10 refrigerant types to
the device..
1
2
3
Automatically displays in the APPs
4
after switching high/low pressure.
Automatically displays in the
5
APPs after switching high/low
pressure.
6
7
Export PDF report and CSV files,
etc. (The icon will be showed after
stopping recording.)
Check when there is available data.
Check when there is available data.
12 11 10
8 9
8
