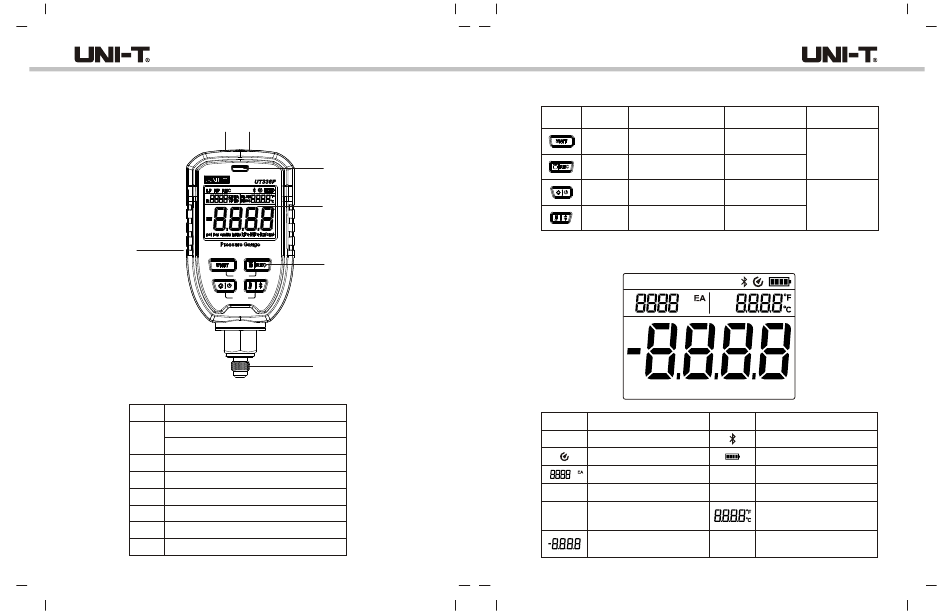

5. Product Structure
6 7
5
ZERO
LP/HP
Descriptions
No.
High pressure in red LED.
1
Low pressure in blue LED.
Screen display area
2
3 Buttons area
4 1/4" SAE Connector
5 Battery holder (rear)
Hand strap hole
6
3.5mm port for temperature clamp
7
5
UT336P
1
2
3
4
UT336P
6.Buttons
Icons Buttons Short Press
Unit Pressure unit switch
Refrigerant type
Record
switch
Screen backlight
POWER
ON/OFF
Temperature
Bluetooth
display switch
7.Display
LP HP REC
ZE TL
R YF ZD TH
kPa MPa
psi bar cmHg inHg
Low pressure icon
LP
REC Data record icon
Auto-power-off icon
ZE Refrigerant type
R YF ZD
High-pressure temperature
TH
SC
Subcool icon
psi bar cmHg
Pressure value inHg
MPa
Button
Long Press
Combination
Temperature
unit switch
Zeroing
Record ON/OFF
Power on/off
High/Low
pressure
icon switch
Bluetooth ON/OFF
SH
SC
kg/cm²
High pressure icon
HP
Bluetooth icon
Battery icon
TL Low-pressure temperature
SH Superheat icon
Temperature value;
Temperature unit
kPa Pressure unit
kg/cm²
