INSTRUCTIONS FOR USING THE GYROSCOPE:
REV switch : Reverse direction of the steering servo
BLUE/RED switch: Toggles between the blue and red light systems,
selecting a different operating mode depending on the characteris-
tics of the track and the speed of the servo (the blue light system is
often used to suppress servo jitter at high sensitivities).
LIMIT GAIN knob: Left-to-right 0-100% sensitivity setting.
END POINT button: locks the servo at maximum range/restores the
initialization, ensuring that the frame is set to the maximum beam size.
After the EPA value is set : use the matching tool to press and hold
the END button - turn on the power of your car and then the red and
blue LEDs blink slowly. Then enter the gyro locking setup, press the
END button when the left side of the control direction is exhausted,
press the END button when the right side of the control direction is
exhausted and then the direction is back to the center at once, and
then the LEDs will turn to be always on, that is, the gyro locking
operation is successful.
For initialization : press and hold the END key for 3 seconds, and
when the red LED turns to normal, the locking procedure is released
and the initialization is successful.
Special Notes:
1. The white side of the harness is the S-terminal of the signal cable. Make sure the signal cable is properly connected to the RX before using the gyroscope.
2. The gyroscope should be mounted on a flat surface and away from a Power Station to avoid vibration that may affect normal use.
3. Check if there is any vibration from other electronic devices that may cause the gyroscope to fail the self-test when powering on the device.
GYRO PARAMETERS:
• Size: 25.6X24.5X8.0mm
• Weight: 12.0g
• Operating Voltage: 4.8-7.4V
• Operating Current: 20mA/6V
• Supports Servo Pulse Width:
1520us(50Hz&333Hz)

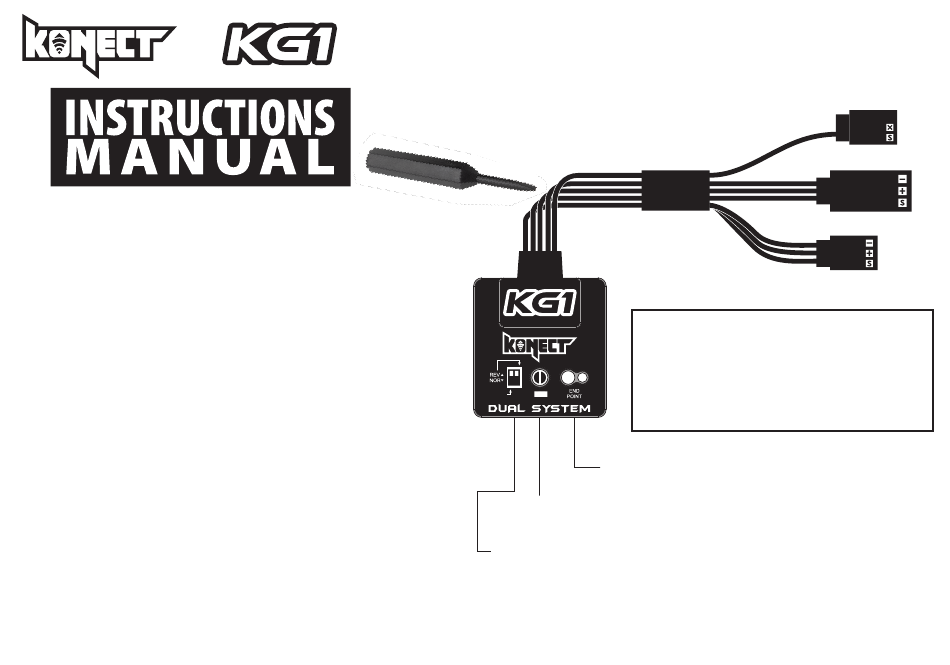

RED/BLUE
GAIN
LIMIT GAIN: Gain Adjustment
RED/BLUE: Red light system mode / Blue light system mode
REV/NOR: Servo Forward and Reverse Switch
• Operating Temperature Range: -10°C+45"
• CControl System: PID control system
• Gyro Sensor: U.S.A. Invensense
• Angular Velocity: Max +4000/s
LED status display
Red light blinks rapidly self-test
Red and blue light blinking slowly: set bean angle
Red light continues to be on for a long time: red
light system
Blue light keeps on long time: Blue light system
END POINT: Function Setting
LED: Dual color LED status light
Channel 3 or Aux on receiver
Servo steering
Channel 1 or ST on receiver
