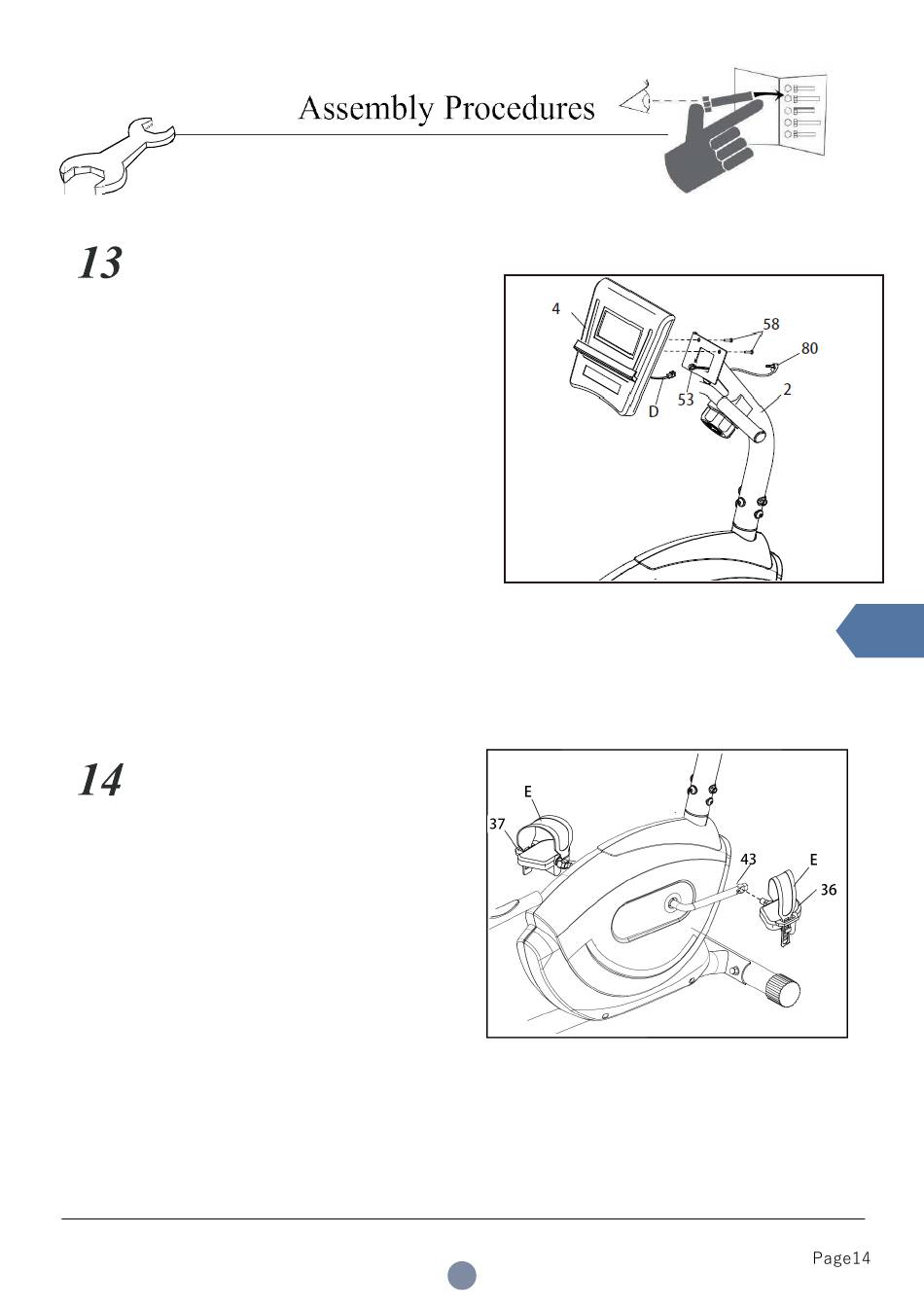

Match and link the sensor line (D) of the console (4) with
the sensor line (53) of front post (2).
Fix the electronic watch (4) on the front post (2) with two
M5*12mm (back of the electronic watch).
Then, insert the heart rate line plug (80) into the socket at
the back of the console (4).
Tighten the correct right pedal (36) clockwise to the
right arm of the crank (43),
Tighten the correct left pedal (37) counterclockwise to
left arm of the crank (43).
the
Then connect the right pedal strap (E) to the right pedal
(36), as shown in the figure, connect the left strap (F) to
the left pedal (37) in the same way.
Notes: After the indoor exercise bike is assembled, please check it to ensure that it is installed
correctly and runs normally. Before using the exercise bike, please confirm all parts are properly
tightened. Additional parts may be included. Place pads under the Exercise Bike to protect the floor.
