Page 1
All manuals and user guides at all-guides.com...
Page 2

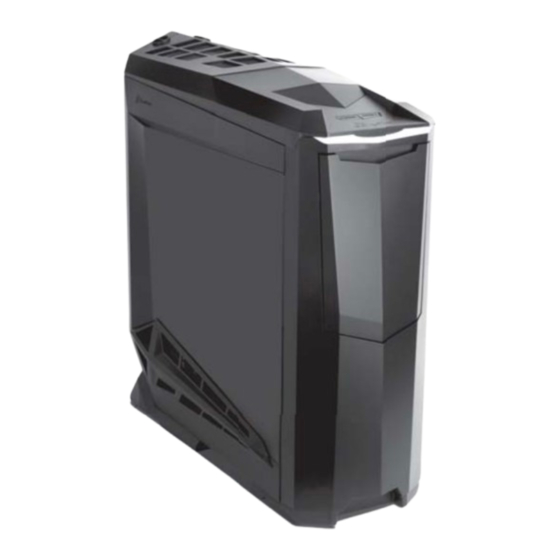

All manuals and user guides at all-guides.com SERIES SERIES Specifications Model SST-RV01B (black) SST-RV01B-W (black + window) Color Matte black Material Reinforced plastic outer shell, 0.8mm SECC body Motherboard SSI EEB, SSI CEB, Extended ATX, ATX, Micro ATX Drive Bay Exposed 5.25”...
Page 3
All manuals and user guides at all-guides.com SERIES SERIES Disassemble Chart FRONT I/O CARD SUPPORT SilverStone SST-CP05 VENT FRONT I/O Pin Definition INCLUDE PACKAGE...
Page 4
All manuals and user guides at all-guides.com SERIES SERIES lnstallation Guide Поверните рукоятку в положение Please follow the direction and rotate “UNLOCK”, как показано на рисунке, the knob to “UNLOCK” position as затем сместите назад и снимите shown, then pull backward to remove с...
Page 5
All manuals and user guides at all-guides.com SERIES SERIES lnstallation Guide Для того чтобы вынуть фиксатор Please remove two thumb screws to карты расширения, удалите два remove the expansion card supporter винта с накатанной головкой. as shown. Bitte entfernen Sie die zwei Fingerschrauben,um den Träger der Erweiterungskarte wie gezeigt zu entfernen.
Page 6
All manuals and user guides at all-guides.com SERIES SERIES lnstallation Guide Приведите нажимную кнопку 5,25 Press the 5.25” drive bay push button to “unlock” position as shown in the diagram. -дюймового отсека в положение “unlock”, как показано на схеме. Drücken Sie den Knopf des 5.25” Laufwerksständers in die "UNLOCK”...
Page 7
All manuals and user guides at all-guides.com SERIES SERIES lnstallation Guide Приведите нажимную кнопку 5,25-дюймового Press the 5.25” drive bay push buttons to “lock” position to secure optical drive. Press down отсека в положение “lock”, чтобы закрепить on the front door again to enable it to close on оптический...
Page 8
SST-CP05 SATA-Festplattenlaufwerke mit Hot-Swap-Funktion, d.h. Austausch ohne Stromabschaltung,unterstützen.) Remettez le casier dans le boîtier. (En option le SilverStone SST-CP05 peut supporter des disques durs SATA qui ne possèdent pas la fonction de montage à chaud). Reinstale la bandeja de disco duro en el chasis.
Page 9
All manuals and user guides at all-guides.com SERIES SERIES lnstallation Guide Надежно закрепите опоры Please fasten and secure the motherboard материнской платы (ШУРУП D). standoffs (SCREW D) as required. Then Затем установите материнскую install your motherboard and secure with плату и закрепите ее шурупами screws (SCREW C).
Page 10
All manuals and user guides at all-guides.com SERIES SERIES lnstallation Guide Установите блок питания, как показано Please install your power supply as shown, align with the screw holes and secure with н а р и с у н к е , в ы р о в н я й те е го с included screws (SCREW C).
Page 11
All manuals and user guides at all-guides.com SERIES SERIES lnstallation Guide Установите на место боковые Reinstall the side panels onto the main панели корпуса. chassis. Bringen Sie die Seitenteile wieder am Hauptgehäuse an. Réinstallez les panneaux latéraux sur le boîtier Reinstale los paneles laterales en el chasis principal.
Page 12
All manuals and user guides at all-guides.com SERIES SERIES Appendix 1 : Filter removal guide Please remove 5 screws shown in Открутите 5 шурупов, указанных the diagram to remove the side panel на диаграмме, чтобы снять фильтр filter. боковой панели. muss man sicher sein,dass alle notwendige Kabel und Leitung in Verbindung gebracht werden.und...
Page 13
All manuals and user guides at all-guides.com SERIES SERIES Нажмите на рукоятку фильтра Please press on the power supply filter бл ок а питания, к ак пок азано handle as shown then pull it to remove from the chassis. н а р и с у н к е , и з ат е м в ы н ьт е его...
Page 14
All manuals and user guides at all-guides.com SERIES SERIES Install the included radiator mounting Установите прилагаемые крепежные supporters and secure it together the подставки радиатора и прикрепите их к радиатору шурупами. radiator and its screws. B r i n g e n S i e d e n b e i g e f ü g t e n Träger der Kühlkörper-Halterung a n u n d b e f e s t i g e n S i e d i e s e zusammen mit dem Kühlkörper...
Page 15
All manuals and user guides at all-guides.com SERIES SERIES Remark: 170mm SIDE PANEL COOLER Motherboard Maximum height for CPU cooler is 170mm Maximum depth for power supply is 295mm...
Page 16
All manuals and user guides at all-guides.com SERIES SERIES Remark 70mm The gap between I/O and top cover is 70mm Acceptable connector Unacceptable connector (Over 70mm tall with adaptor)
Page 17
All manuals and user guides at all-guides.com ovember, 2008 08810...
