5 Complete installation ETS-05
Ensure that the pipe and sensor are thermally insulated and clad to the
de˚sign specification after installation of thermostat. Seal cladding with
sealant (A). When thermostat installation is complete, test as described
in the Testing & Commissioning Section. Retain this instruction for future
use, e.g. setting, testing, maintenance etc.

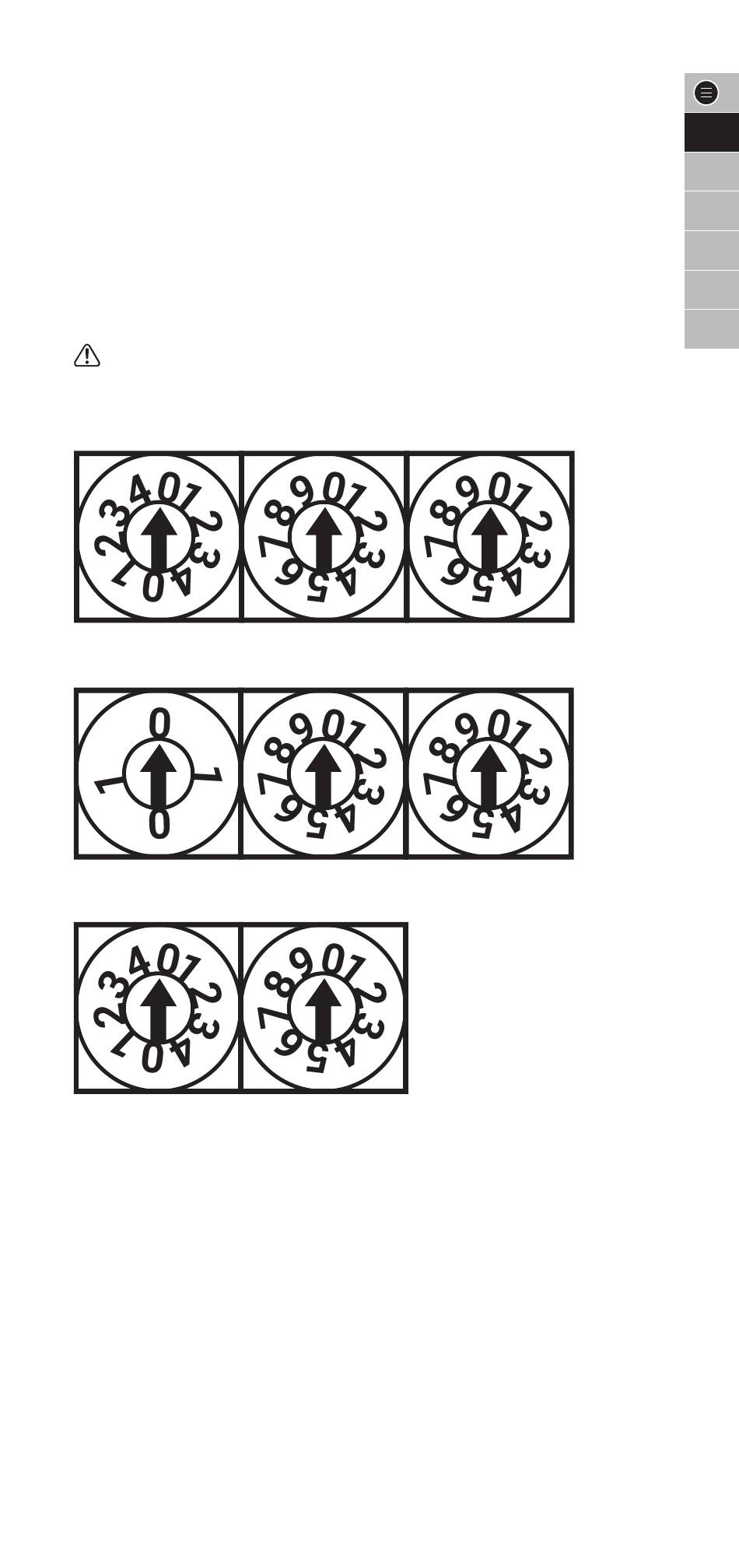

6 Temperature setting dials
If necessary, loosen lid screws and remove lid. Adjust digital switches
to switching temperature (˚C). The switches present the setpoint
temperature in three digits (100, 10, 1). Locate lid and tighten lid screws.
WARNING: Ensure thermostat is isolated elsewhere for a minimum
of 1 minute before opening.
High Temperature version 0˚C - 499˚C
Low Temperature version 0˚C - 199˚C
Ambient version 0˚C - 49˚C
