Introduction
They are four-beam infrared sensors, widely used as a perimeter
guarding device in gated houses, shops and indoor garages. The
product requires to be paired to a control panel of our brand.
When an intruder walks past the detection area and two or more
light beams been blocked, the IR sensors will immediately send a
warning signal to the control panel.
Packaging List
Transmitter x 1
CR123A Battery x 5
BM4200-UM-ML-V1.0.indd 1-2
All manuals and user guides at all-guides.com
Receiver x 1
Screw pack x 1 Manual x 1

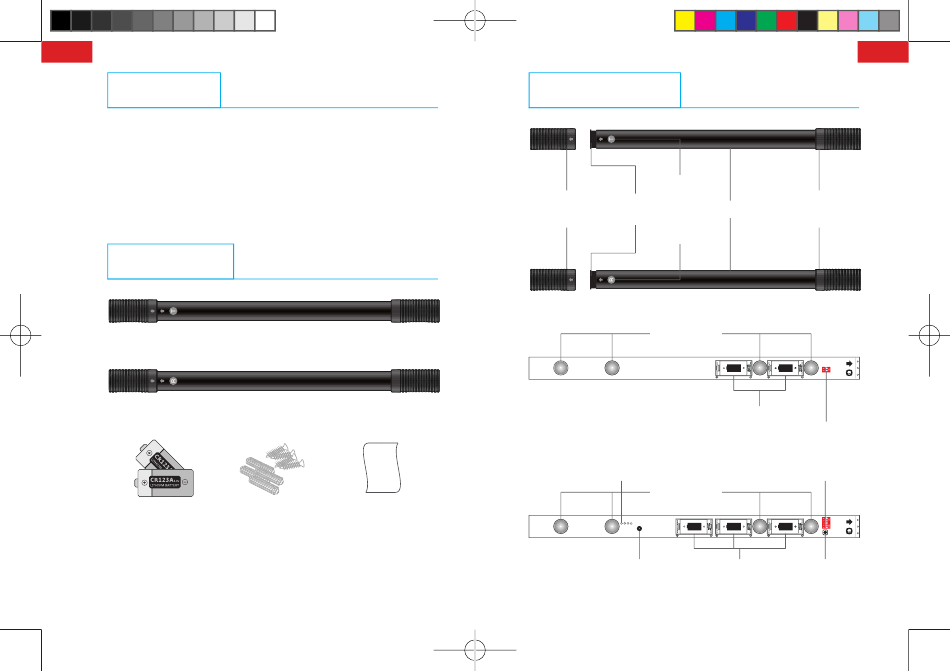

Product Overview
Transmitter (T)
Upper installation cap
Waterproof
(removable)
rubber plug
Receiver (R)
Transmitter Circuit Board
Beam transmitter
Receiver Circuit Board
LED light
Beam receiver
Buzzer
EN
Lower installation cap
Beam bar
(fixed, non-removable)
Battery
Power output setting switch
Zone mode and alarm time setting switch
Battery Installation mode switch
