Humanscale float Instructions De Montage page 8

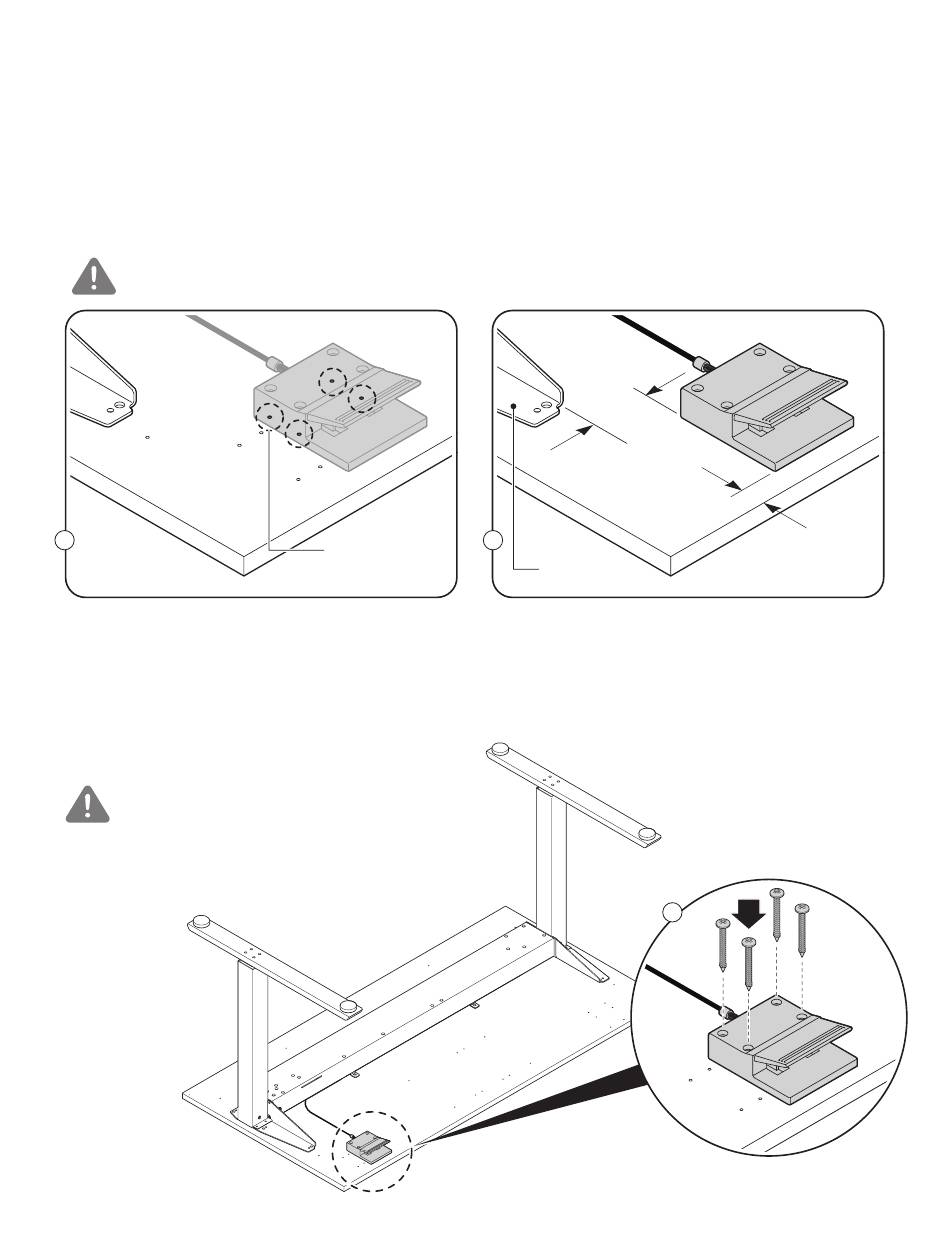

Attach the Release Paddle
1
Position the Release Paddle onto the Worksurface. Right hand Paddle can only be mounted on the right side, and the
left hand paddle can only be mounted on the left hand side. They are not interchangeable.
Humanscale Worksurface - Align the mounting holes with the corresponding pilot holes on the worksurface. If you
ordered a left-hand paddle, use the designated Left-hand hole pattern and vice versa (1a).
Your own Worksurface - Position the Paddle 1" (25 mm) back from Front edge of the Worksurface and 2-1/4"
(60 mm) over from the inside of the Wing Bracket (1b). Note: Follow the same dimensions if you ordered a left-hand
paddle.
CAUTION: DO NOT OVER TIGHTEN SCREWS WHEN
MOUNTING THE RELEASE PADDLE.
1a
Humanscale Worksurface
2
Using a #2 Phillips driver, secure the Release
Paddle to the Worksurface using four
No. 8 × 1-1/2" pan-head wood screws.
CAUTION: DO NOT OVER TIGHTEN
SCREWS WHEN MOUNTING THE
RELEASE PADDLE.
8
All manuals and user guides at all-guides.com
1b
Corresponding
pilot holes
2.25"
(60 mm)
2.25"
(60 mm)
Wing Bracket
Your own Worksurface
2
1"
(25 mm)
1"
(25 mm)
