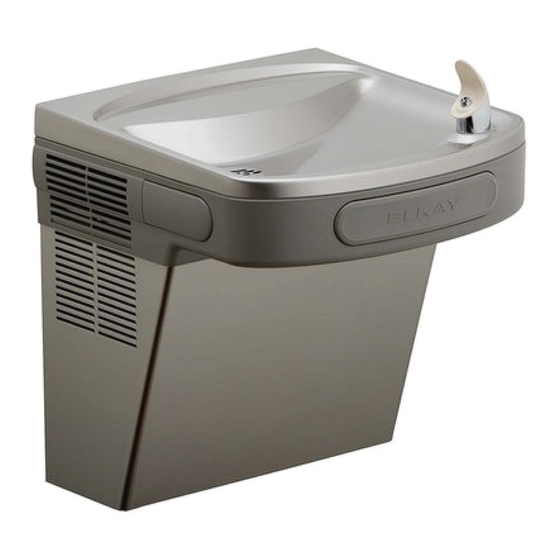

EZFS8*1H, 2H, 3H
LZFS8*1H, 2H, 3H
EZFSD*1H
LZFSD*1H
INSTALLATION & USE MANUAL
Manual de instalación y uso
Manuel d'installation et utilisation
EZ™ & LZ™ Series Barrier-Free Water Coolers
EZ™ & LZ™ La Barrera de la serie Liberta Agua Coolers
EZ™ & LZ™ Coolers d'Eau de Barrière-Libère de feuilleton
Model EZS8L
Page 1
1000002685 (Rev. C - 01/21)

Publicité

loading

Sommaire des Matières pour Elkay EZ Série

  • Page 1 EZFS8*1H, 2H, 3H LZFS8*1H, 2H, 3H EZFSD*1H LZFSD*1H INSTALLATION & USE MANUAL Manual de instalación y uso Manuel d’installation et utilisation EZ™ & LZ™ Series Barrier-Free Water Coolers EZ™ & LZ™ La Barrera de la serie Liberta Agua Coolers EZ™ & LZ™ Coolers d’Eau de Barrière-Libère de feuilleton Model EZS8L Page 1 1000002685 (Rev.
  • Page 2 EZFS8*1H, 2H, 3H LZFS8*1H, 2H, 3H EZFSD*1H LZFSD*1H Note: Danger! Electrical shock hazard. Disconnect power before servicing unit. Nota: peligro! Peligro de descarga eléctrica. Desconecte antes de reparar la unidad l’appareil. Remarque : Danger ! Risque de choc électrique. Débrancher avant de réparer Uses HFC-134A refrigerant Usa refrigerante HFC-134A Utilise du fl...
  • Page 3 EZFS8*1H, 2H, 3H LZFS8*1H, 2H, 3H EZFSD*1H LZFSD*1H Fig. 2 Page 3 1000002685 (Rev. C - 01/21)
  • Page 4: Entretien

    EZFS8*1H, 2H, 3H LZFS8*1H, 2H, 3H EZFSD*1H LZFSD*1H HANGER BRACKETS INSTALLATION INSTALACIÓN DE SOPORTES PARA COLGAR SUPPORTS DE CROCHET DE SUSPENSION INSTALLATION Retire el soporte fi jador que se encuentra conectado a 1) Remove hanger brackets fastened to back of cooler la parte posterior del enfriador sacando un (1) tornillo.
  • Page 5: Entretenir Des Instructions

    EZFS8*1H, 2H, 3H LZFS8*1H, 2H, 3H EZFSD*1H LZFSD*1H Service Instructions Lower and Upper Shroud To access the refrigeration system and plumbing connections, remove four screws from bottom of cooler to remove the lower shroud. To remove the upper shroud for access to the pushbars, regulator, solenoid valve or other components located in the top of the unit, remove lower shroud, disconnect drain, remove four screws from tabs along lower edge of upper shroud, unplug two wires and water tube.
  • Page 6 EZFS8*1H, 2H, 3H LZFS8*1H, 2H, 3H EZFSD*1H LZFSD*1H NOTE: When installing replacement bubbler and pedes- tal, tighten nut only to hold parts snug in position. Do Not Overtighten. NOTA: Al instalar el grifo y pedestal de reemplazo, apriete la tuerca unicamente para mantener las piezas en una posicion adjustada.
  • Page 7 EZFS8*1H, 2H, 3H LZFS8*1H, 2H, 3H EZFSD*1H LZFSD*1H OVERLOAD COLD CONTROL Fig. 7 115V Wiring Diagram SOLENOID Esquema eléctrico 115V VALVE Diagramme de câblage 115V RELAY OVERLOAD COLD CONTROL SHORT WHITE LEAD FROM POWER CORD SOLENOID Fig. 8 VALVE TO "N" TERMINAL ON 220V Wiring Diagram POWER INLET Esquema eléctrico 220V...
  • Page 8 POUR OBTENIR DES PIÈCES, CONTACTEZ VOTRE DISTRIBUTEUR LOCAL OU COMPOSEZ LE 1.800.834.4816 IMPRIMÉ AUX É.-U. ELKAY MANUFACTURING Co. • 1333 BUTTERFLIED ROAD SUITE 200 DOWNERS GROVE, IL 60515 USA - • 630.574.8484 • www.elkay.com 1000002685 (Rev. C - 01/21) Page 8...
