2007 DS Coax Multilingual a01.qxp
Models:
/
/
DS350
DS400
DS460
Congratulations on your
KICKER purchase
Please record your purchase
information and keep your sales
receipt for validation of warranty.
Your DS coaxials were specially designed for "Livin' Loud" out in the harsh automotive
environment. They are made of advanced materials and construction techniques to
maintain optimal performance for years to come.
Application
The Kicker DS coaxial speakers are specifically designed for mounting in free-air
applications. The speakers do not require a sealed enclosure for optimum performance. It is
important to isolate the sound coming off the front of the driver from the sound radiating
from the back of the driver. This isolation is usually accomplished by using the driver in a
factory speaker location, or in a location with a semi-isolated rear chamber. See Figure 1.

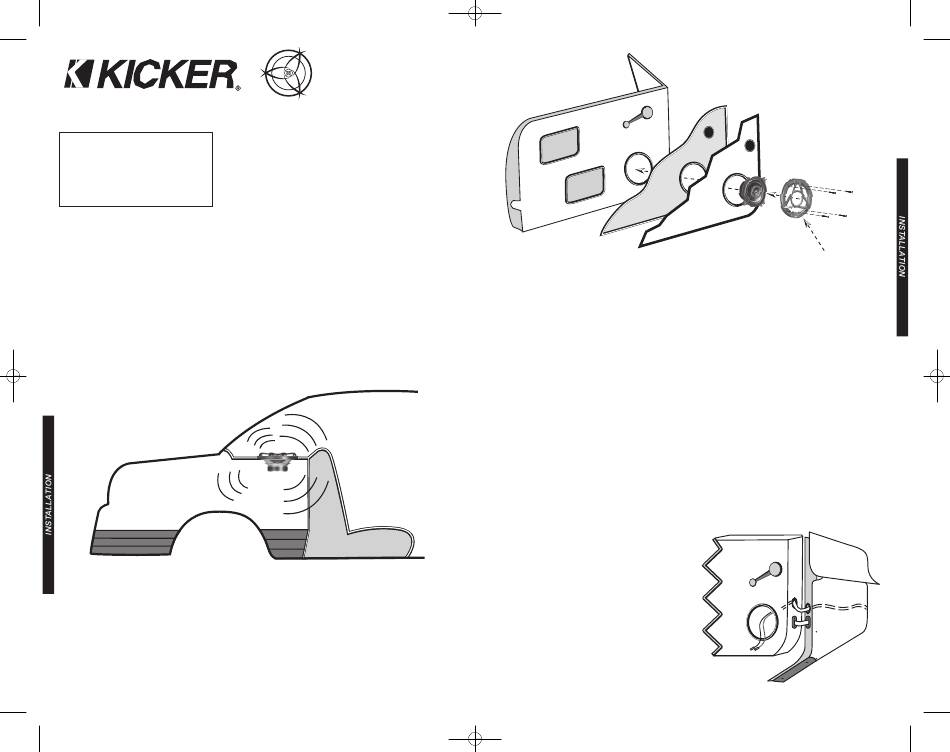

Figure 1
Trunk / Storage Space
Location
The sound produced by the DS coaxials is directional. Find the best location for
stereophonic sound. If necessary, add more DS coaxial speakers to the system to help
distribute and balance the sound. After determining the best mounting locations, carefully
check the areas where the mounting hardware will be placed. See Figure 2.
Please allow two weeks of break-in time for the speaker to reach optimum performance.
DSCOAXIALSPEAKER
2
11/10/2008
10:52 AM
Page 2
DSCoaxialSpeaker
Owner'sManual
/
/
/
/
DS5250
DS600
DS650
DS680
_________________________
Authorized Kicker Dealer:
_________________________
Purchase Date:
_________________________
Speaker Model Number:
Front Sound
Waves
Rear Sound
Waves
Rear Seat
Door Body
/
DS6930
Mounting
If you are replacing factory speakers in their original locations, you may have to enlarge the
speaker cut-outs and pre-drill new screw holes using a 7/64" (2.5mm) bit. Custom mounting
locations will require more preparation and work. In either case, make sure the speaker will
not interfere with the trunk and door opening and closing mechanisms, and the enclosed
screws will not puncture the fuel tank, wiring, or interfere with any other mechanical parts on
the underside of the mounting surface. Cycle the windows all the way down and up.
If the speaker cut-out locations require you to cut metal, avoid structural metal and braces.
If the door body and panel cannot support the weight of the speaker, an optional reinforcing
panel (thin piece of wood or Medium Density Fiberboard) may be sandwiched between the
panels. Mount the speaker to the vehicle as outlined in Figure 2.
If factory speaker wiring is not available in your desired location, it may be necessary to run
the supplied wire through the door jamb. The speaker wire should be kept away from sharp
edges and avoid the possibility of getting pinched by the door. An existing grommet in the
door jamb is the ideal place to run the speaker wire. If the factory hole and grommet do not
exist or are inaccessible, you must drill a hole
to run the speaker wire through the door jam.
Be careful not to drill into other wiring or
exiting door mechanisms. Any time a wire is
run through a hole, it is necessary to insert a
rubber or plastic grommet to protect the wire
from damage as outlined in Figure 3.
If the supplied hardware is not applicable to
your installation, some other means of
securely attaching the speakers to the vehicle
must be used.
Reinforcing Panel
Figure 2
(Optional)
Door Panel
Speaker
cut-out
Speaker
cut-out
Coaxial Driver
Place Speaker Grille over the Coaxial Driver
and mount with the enclosed Screws
Stagger the holes for the wiring and use a rubber or
plastic grommet to protect the wire from damage
Front Door
Body
Speaker
cut-out
Speaker Grille
Screws
Front Dash
To the
amplifier
or source
unit
Kick Panel
Figure 3
3
