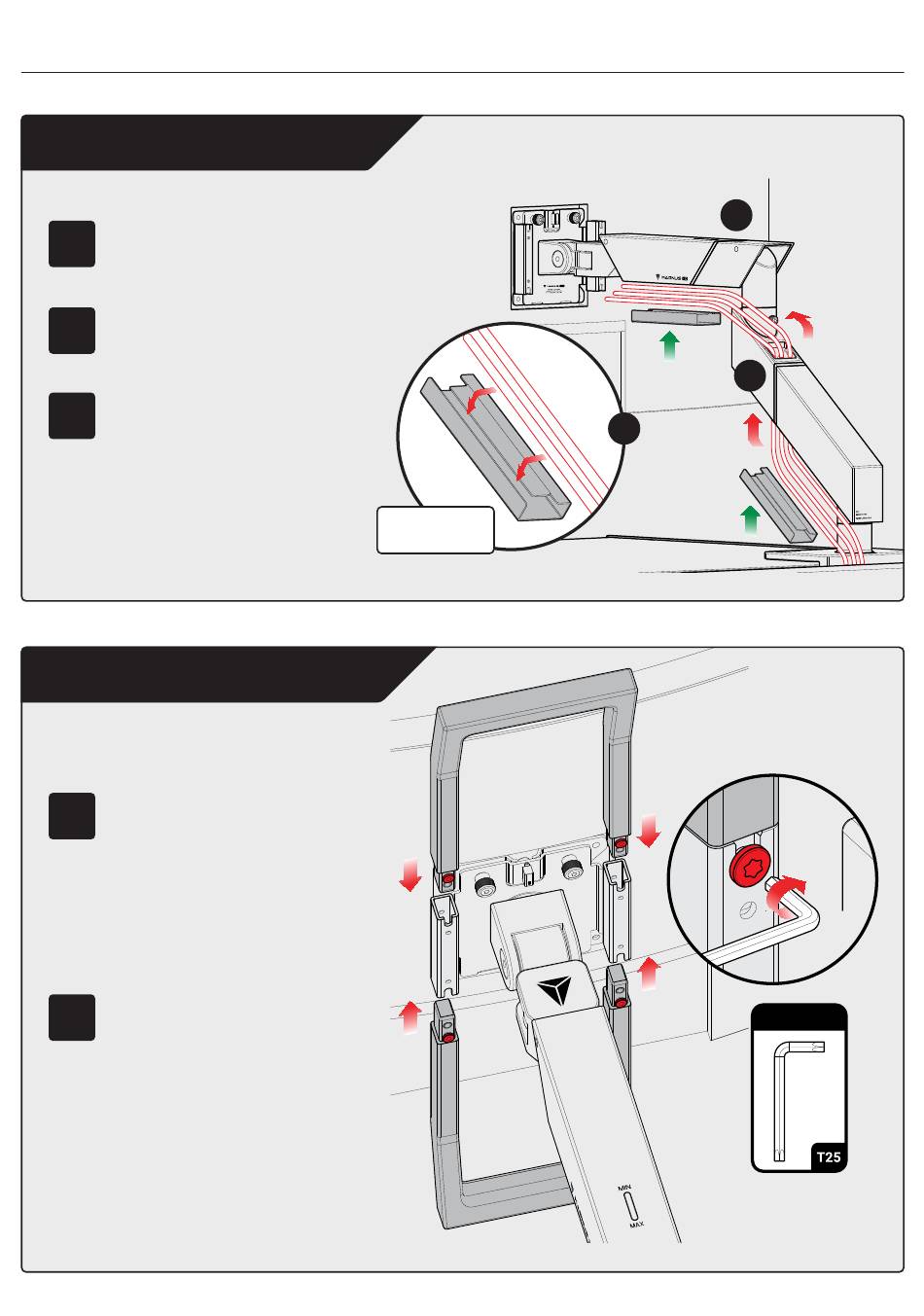

STAGE C: CABLE MANAGEMENT
Before you begin routing your cables, fully
01
extend the arm to ensure easy arm rotation
when fully assembled.
Fully connect your cables from your power source
02
or computer through the Cable Channel on the
bottom arm to your monitor.
Slot the loose cables under both arms
03
into their respective Magnetic Cable
Sheaths and attach them to the base of
each arm.
Note: Leave some slack in the cables
to ensure that your monitor rotates
without any obstruction.
STAGE D: HANDLE INSTALLATION
Insert each handle into the slots
01
located on the VESA mount. You
should feel a click when the handles
are fully inserted.
Note: Both handles should be angling
away from your monitor screen
Tighten the pre-installed hex screws
02
on the handle to fasten it securely to
the VESA mount.
8
Maximum Cable
Diameter: 8.5mm
01
02
03
ALLEN KEY
