b) Insert the lower end of the mounting rod(b) into the motor yoke(d),
aligning the holes in the rod with those in the yoke.
c) Pass the safety screw(c) through the hole.
d) Insert the flat washer(e), followed by the pressure washer(f) and the
hexagonal nut(h).
e) Fix the nut, making sure it is tight.
f) Finally, secure the connection with the safety pin (g) by placing it through
the safety screw.

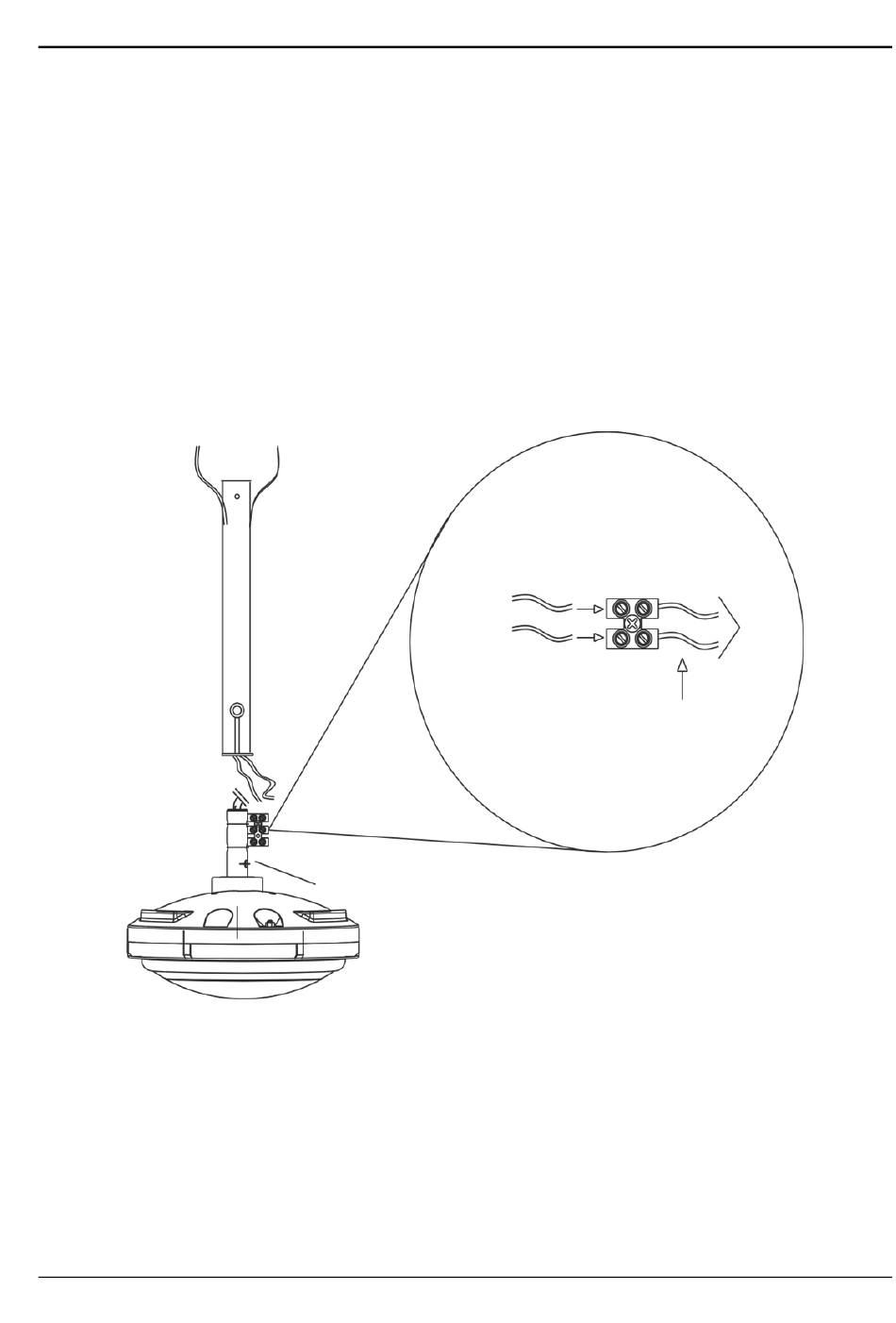

g) Make the electrical connection on the terminal that is in the yoke of the
motor and tighten the screws.
h) Once finished, hang your fan on the mounting plate hook and make the
electrical connection on the main terminal.
i) Check that the wires are free and housed in the correct way and position
the top cap near the support plate. Tighten the screw properly.
WARNING: Be careful not to damage the cables with the safety screw when
going through the holes.
Instructions for use
Insert the mounting rod
cables in the terminal
Connection toward
electric motor
