4.3 DIN Rail Mounting
The Relay Driver will mount to standard 1-3/8" (35mm) DIN rail.

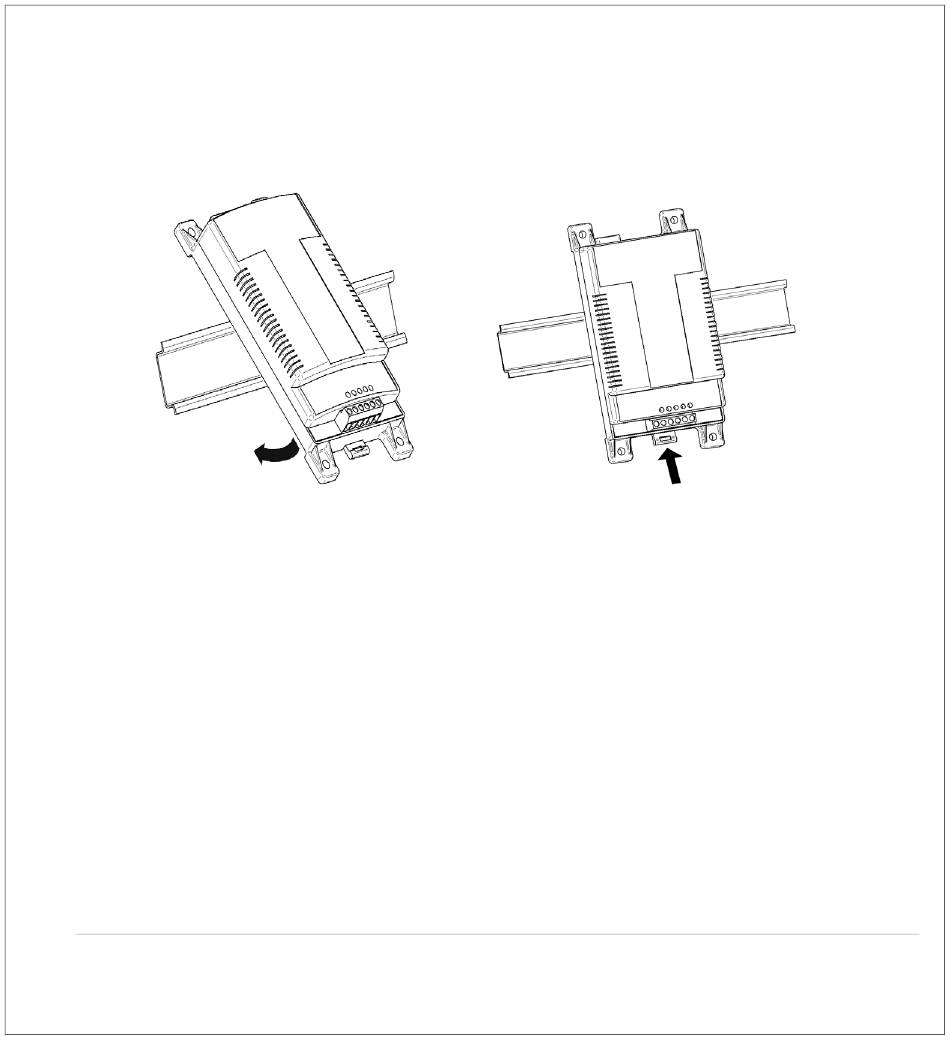

Figure 21. Figure 22.
Step 1
The DIN rail location should be protected from direct sun, high
temperatures, corrosive fumes, and water. Do not install in a confined
area where battery gases can accumulate.
Step 2
Place the Relay Driver over the DIN rail in the location where it is to be
mounted. Make sure there is sufficient room above and below the
Relay Driver for wire connections.
Step 3
The Relay Driver was designed for tool-less installation onto a DIN rail.
On the bottom of the Relay Driver, there are 3 hooks that catch the
