NOTICE:
Mounting surface should be
at least 3/4" (19 mm) thick to securely
support the charging bank.
Wall-mount holes for stack of
two charging banks (Fig. 6)
1. Disconnect the two charging banks
from the hub and remove the battery
packs.
2. Secure two brackets to the two sides
of the lower/upper charging bank
with four M8 x 50 bolt and washer
sets (included), using the provided
hex wrench.
3. Put a charging bank against the wall on the floor, place another charging bank
onto it by aligning the four protrusions on the upper charging bank with the dents
in the lower charging bank.
4. Using the hex wrench, secure the upper charging bank to the lower charging
bank with two M8 x 95 bolt and washer sets (included).
5. Mark the locations of the eight wall-mount holes at the desired location on a wall.
6. Use eight M8 x 25 bolt and washer sets (included) to securely mount the two
charging banks to the wall.
NOTICE:
Mounting surface should be at least 3/4 " (19 mm) thick to securely support
the charging banks.

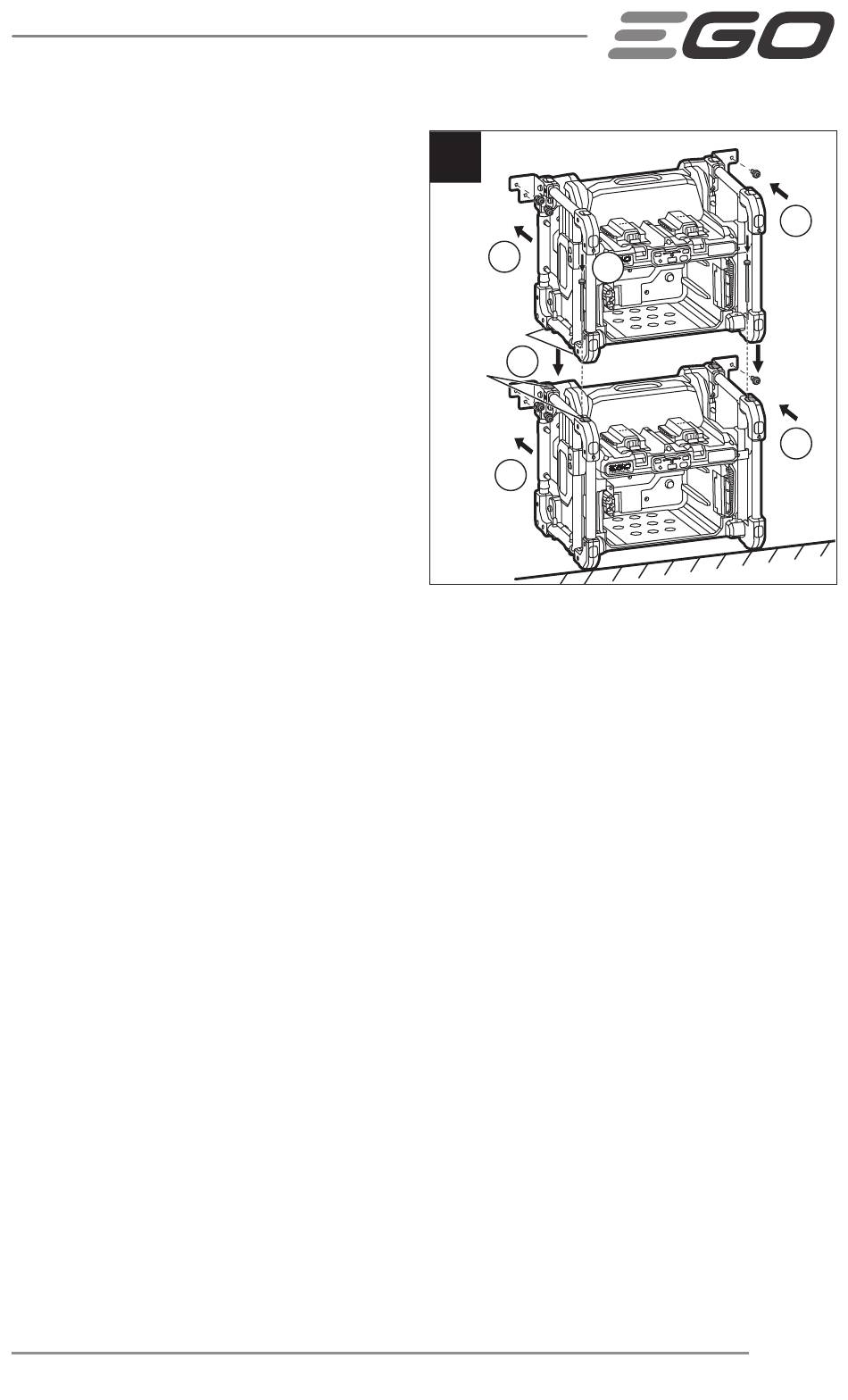

PGX COMMERCIAL CHARGING BANK — PGX1400PB/PGX1400PB-FC
™
6
c
Protrusions
a
Dents
c
b
c
c
