To switch off the UHF input amplifier.

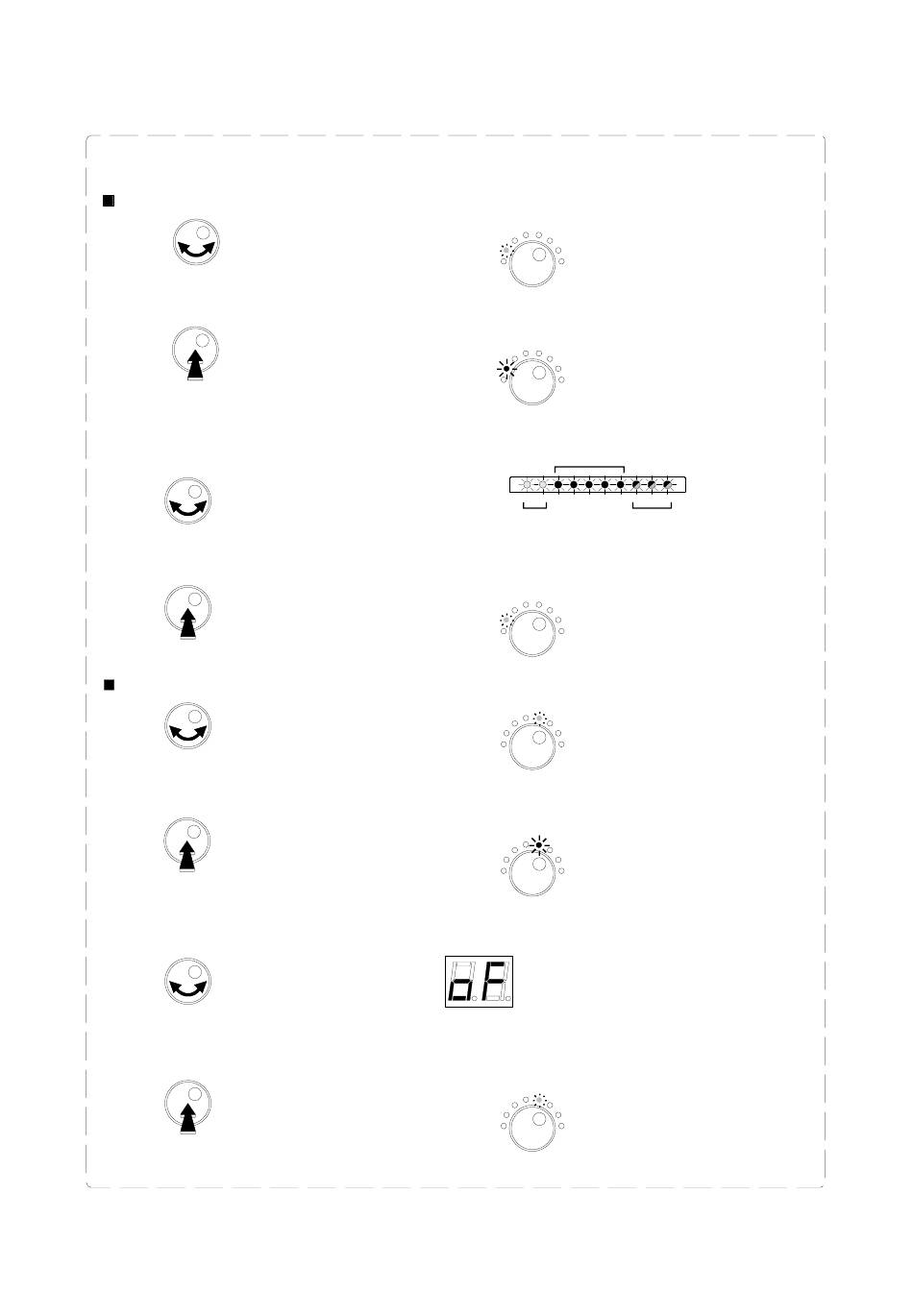

- Select the input to be attenuated.
- Turn the button to select the Select Filter mode.
- Push the rotary button to enter the selected mode.
- Turn the button to select the input.
Turn continuously the button through every cluster
to have access to the input selection.
- Push the button to confirm.
- Turn the button to select the Manual Level mode.
- Push the rotary button to enter the selected mode.
- Turn the button to switch off the 20 dB amplifier.
- Push the button to confirm.
Select Filter
The LED is GREEN.
Select Filter
The LED is now RED colored.
2
1 2 3 4 5 6
1
All LEDs of selected input are activated
Select Filter
The LED is GREEN.
Manual Level
The LED is GREEN.
Manual Level
The LED is now RED colored.
In 'OFF' position
the input signal is
20 dB attenuated.
Manual Level
The LED is GREEN.
