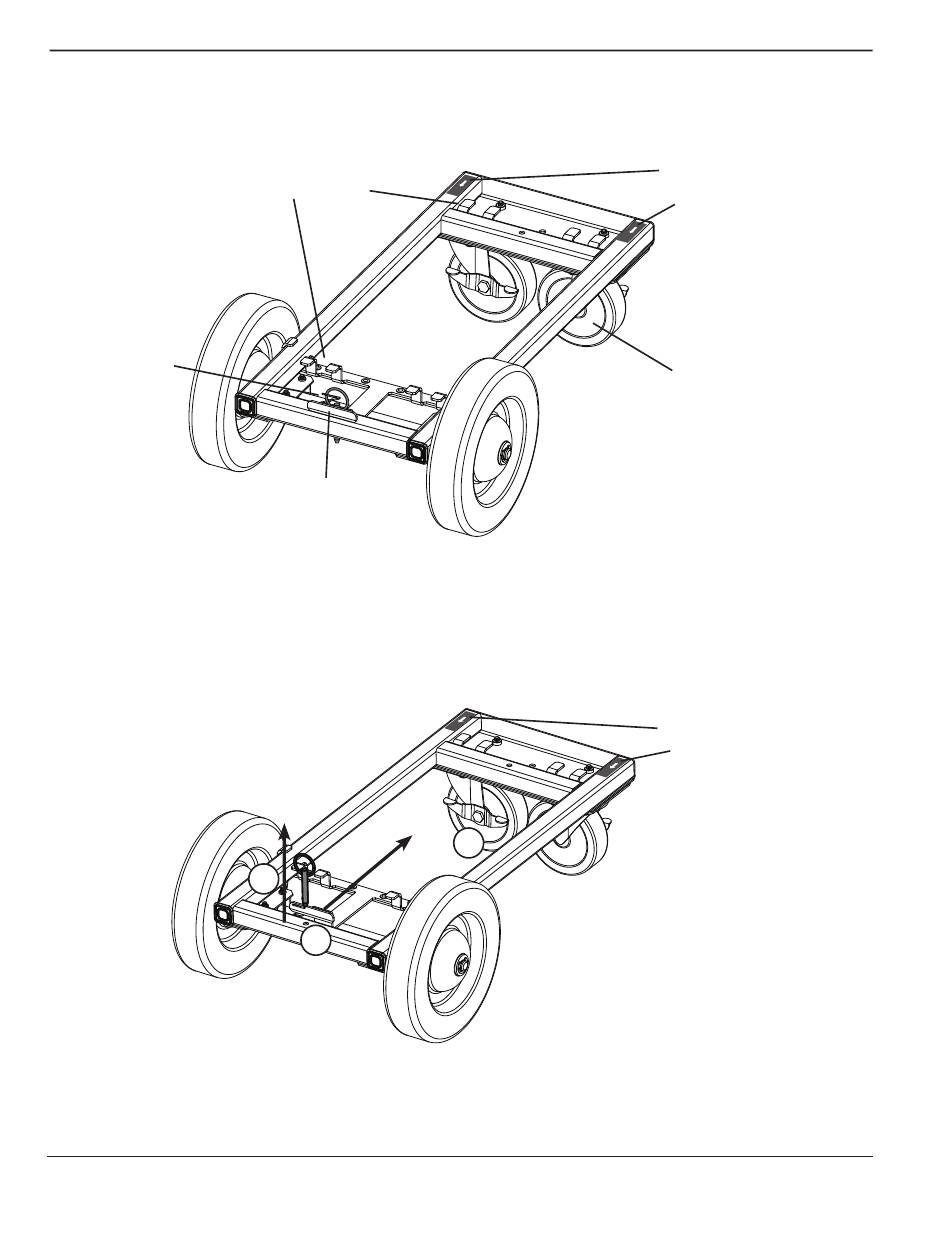

Wheel Kit OperatiOn
Locking the power supply to the wheel cart
Quick Lock mechanism in
Locking pin in
locked position
1. Lift the locking pin (1) straight up. The pin is connected to the axle with a wire cable.
2. Push the rear locking mechanism handle (2) forward toward the casters (3) and slide the locking mechanism until
the mechanism stops.
2
All manuals and user guides at all-guides.com
locked position
Rear locking
mechanism handle
1
2
3
Positioning labels
(wheel kit 229467 only)
Casters with lock
Positioning labels
(wheel kit 229467 only)
Field Service Bulletin
