1
Quick Setup Guide

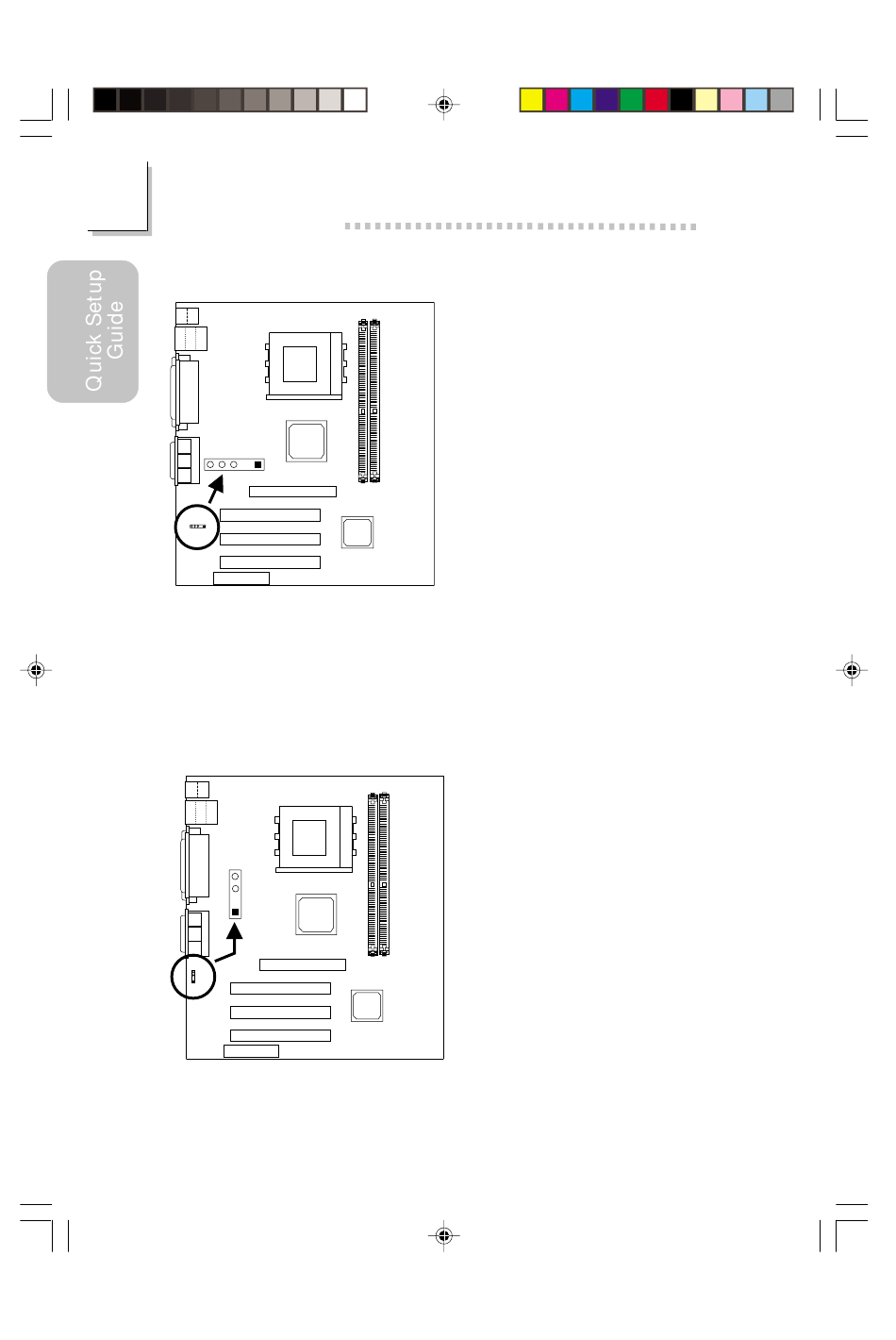

1.3.9 IrDA Connector
IrDA (J12)
5
4
3
2
1
The sequence of the pin functions on some IrDA cable may be reversed
from the pin function defined on the system board. Make sure to connect
the cable to the IrDA connector according to their pin functions.
1.3.10 S/PDIF-out Connector
4
S/PDIF-out
3
(J6)
2
1
16
1 VCC
2 N. C.
3 IRRX
4 Ground
5 IRTX
1 AVDD5
2 N. C.
3 SPDIF
4 Ground
