USER MANUAL
SQUEEGEE BLADE CHECK AND REPLACEMENT
1.
Clean the steel or the aluminum squeegee, as shown in the
previous paragraph.
2.

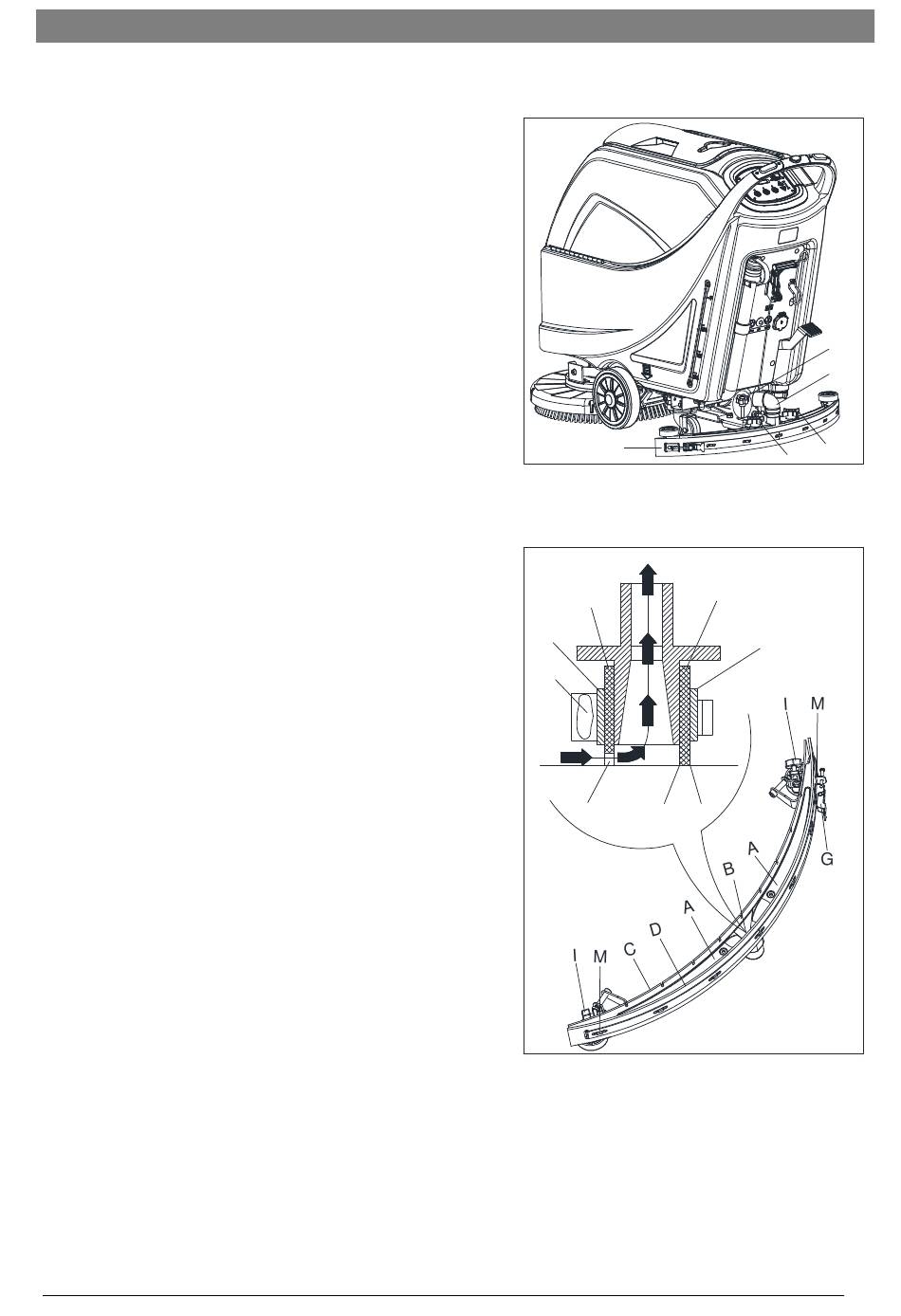

Check that the edges (E, Figure20) of the front blade (C)
and the edges (F) of the rear blade (D) lay down on the
same level, along their length; if necessary adjust their
height according to the following procedure:
Remove the tie rod (G), disengage the fasteners (M) and
•
adjust the rear blade (D), then engage the fasteners (M)
and install the tie rod (G).
Loosen the knobs (I) and adjust the front blade (C), then
•
tighten the knobs.
3.
Check the front blade (C) and rear blade (D) for wear, cuts
and tears; if necessary replace them according to the
following procedure. Check that the front corner (J) of the
rear blade (D) is not worn; if necessary, overturn the blade
to replace the worn corner with an integral one. If the
other corners are worn too, replace the blade according to
the following procedure:
Remove the tie rod (G), disengage the fasteners (M) and
•
remove the retaining strip (K), then replace/overturn the
rear blade (D). Assemble the blade in the reverse order of
disassembly.
Unscrew the knobs (I) and remove the retaining strip (L),
•
then replace the front blade (C). Assemble the blade in the
reverse order of disassembly. After the blade replacement
(or overturning), adjust the height as shown in the
previous step.
4.
Connect the vacuum hose (A, Figure19) to the squeegee.
5.
Install the squeegee (B) and screw down the knobs (C).
6.
If necessary, adjust the squeegee balance adjusting knob
(D).
B
C
L
I
E
22
ENGLISH
C
Figure 19
D
K
J
F
Figure 20
D
A
C
