JUNCTION BOX MOUNTING
STEP BY STEP INSTRUCTION FOR WALL MOUNT INSTALLATION:
1. Turn OFF power at the switch or circuit breaker prior to the installation
process or when replacing the lamp.
2. Feed wires from junction box through center of Canopy Mounting Plate (G),
then connect as follows:
a. Connect black fixture wire to black supply wire using
Wire Connector (C).
b. Connect white fixture wire to white supply wire using
Wire Connector (C).
c. If applicable, connect copper fixture ground wire to the ground wire using
Wire Connector (C) or to junction box grounding screw in accordance with electric codes.
3. Secure Canopy Plate (G) to junction box using two (2) Mounting Screws (D). Tighten with screwdriver and adjustable wrench.
4. Slide Metal Pole Clamp (A) through the center of the integral post.
5. Push Fixture Housing (B) onto Canopy Plate (G) and secure with Metal Pole Clamp (A), Clamp Screw (E), and Clamp Nut (F).
6. Attach Plastic Lens (J) by lining up slots in lens to tabs on Fixture Housing (B), then twist to secure into place.
7. Install 42 Watt Compact Fluorescent Lamp (H) into lamp socket. Do not over-tighten.
8. Apply weatherproof silicone caulk or sealant around the fixture base and to unused screw holes.
9. Turn power back ON.
POLE MOUNT INSTALLATION
STEP BY STEP INSTRUCTION FOR POLE MOUNT INSTALLATION:
1. Turn OFF power at the switch or circuit breaker prior to the installation process or
when replacing the lamp.
2. Slide Metal Pole Clamp (A) through the center of the integral post.
3. Feed wires from pole and connect as follows:
a. Connect black fixture wire to black supply wire from junction box using
Wire Connector (C).
b. Connect white fixture wire to white supply wire from junction box using
Wire Connector (C).
c. If applicable, connect copper fixture ground wire to the ground wire using
Wire Connector (C) in accordance with electric codes.
4. Push Fixture Housing (B) onto pole (not included) and secure with Metal Pole Clamp (A), Clamp Screw (E), and Clamp Nut (F).
5. Attach Plastic Lens (J) by lining up slots in lens to tabs on Fixture Housing (B) , then twist to secure into place.
6. Install 42 Watt Compact Fluorescent Lamp (H) into lamp socket. Do not over-tighten.
7. Apply weatherproof silicone caulk or sealant around integral post and metal pole surface.
8. Turn power back ON.
TROUBLESHOOTING
If this fixture fails to operate properly, check to make sure:
•
The correct lamp is properly installed.
•
The lamp is not faulty.
•
The line voltage at the fixture is correct.
•
The fixture is wired correctly.
•
The fixture is grounded correctly.
Questions: For further assistance or more information,please call 1-800-562-5625,8 am – 5 pm (Pacific Time),Monday – Friday.
LIMITED LIFETIME WARRANTY – This product is warranted to be free from defects in material and workmanship for life of product. If
a defect occurs, call 1-800-562-5625 for instructions on how to have defective product repaired or replaced free of charge. LIMITA-
TIONS - This warranty only covers Brink's assembled lighting products and accessories and is not extended to other components,
Lamp Bulb(s), or equipment used on the product. Warranty extends to original purchaser of product. Receipt or other approved proof of
purchase required for warranty service. NOT LIABLE FOR INCIDENTAL, INDIRECT, OR CONSEQUENTIAL DAMAGES. Some states do not
allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. This
warranty gives you specific legal rights, and you may also have other rights which vary from state to state. NOT COVERED - Product
failure not relating to faulty material or workmanship, corrosion of brass components, reimbursement for installation or unauthorized
service.

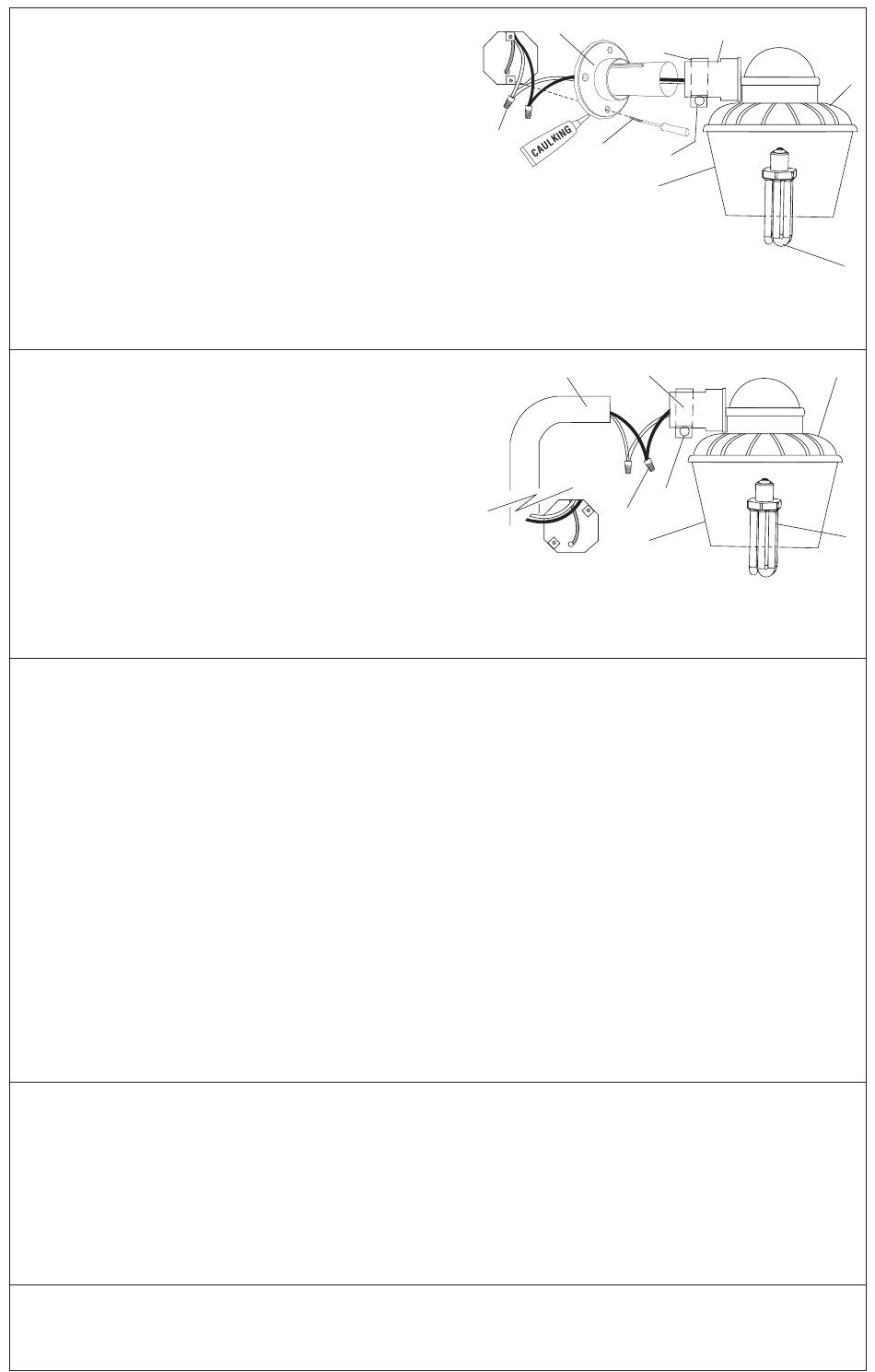

G
INTERGRAL POST
A
C
D
F and G
J
POLE
A
F and G
C
J
