4 | Assembly / Mounting
Check the LED light before installation to ensure it is complete and shows no signs of damage. Do not use the luminaire
or accessories if they are damaged, as there is a risk of injury.
The LED light comes fully assembled. The luminaire is fastened via the delivered holder. As option there are this moun-
ting accessories:
INROLED_50 zip ties, F&B, detectable PP, blue, pair
3
See the drawing: OPTION
5 | Connection
Power supply: double insulation between primary and secondary is required. Suitable connection material, cables and
accessories can be found in the accessory range of LED2WORK.
PIN assignment of the M12 connector is as follows:
PIN assignment
PIN 1 = 24V DC
PIN 2 = not used
PIN 3 = GND
PIN 4 = 24V DC
PIN 5 = not used
10 | BA INROLED_25 . BA 01/2024
When mounting the light, make sure that the light is fastened securely and stably. If the
luminaire falls down, its weight poses a risk of injury!

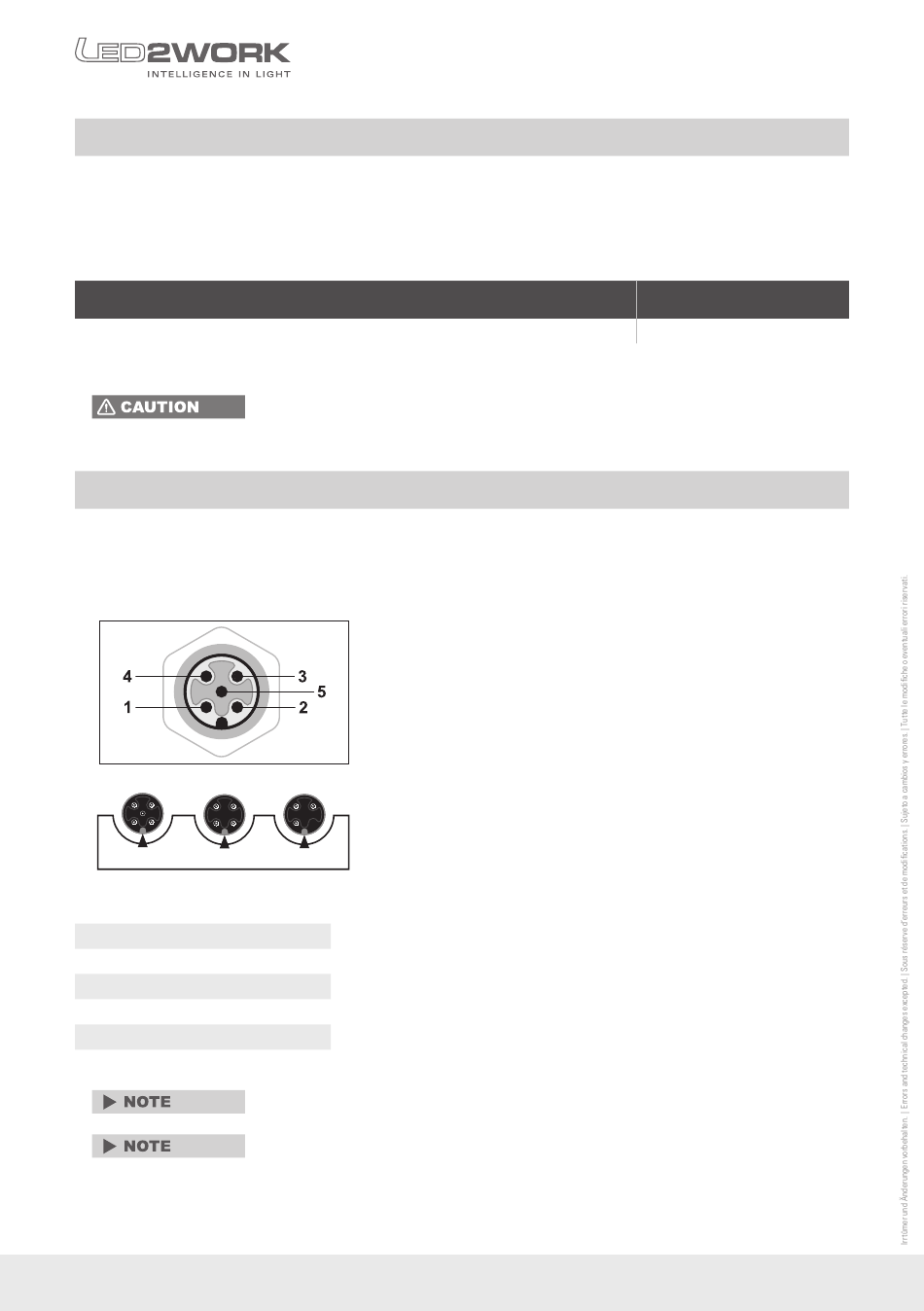

Schematic drawing of M12 plug
Possible variants of the M12 connector
PIN 3 = 0V DC. 24V DC for supply can be connected to PIN1 or PIN 4. It is not necessary to
assign both PINs (PIN 1 and PIN 4) at once!
The light is not equipped with a ON/OFF switch. Usually you switch the light ON or OFF
via external switches of machines or systems.
Product no.
210200-13
