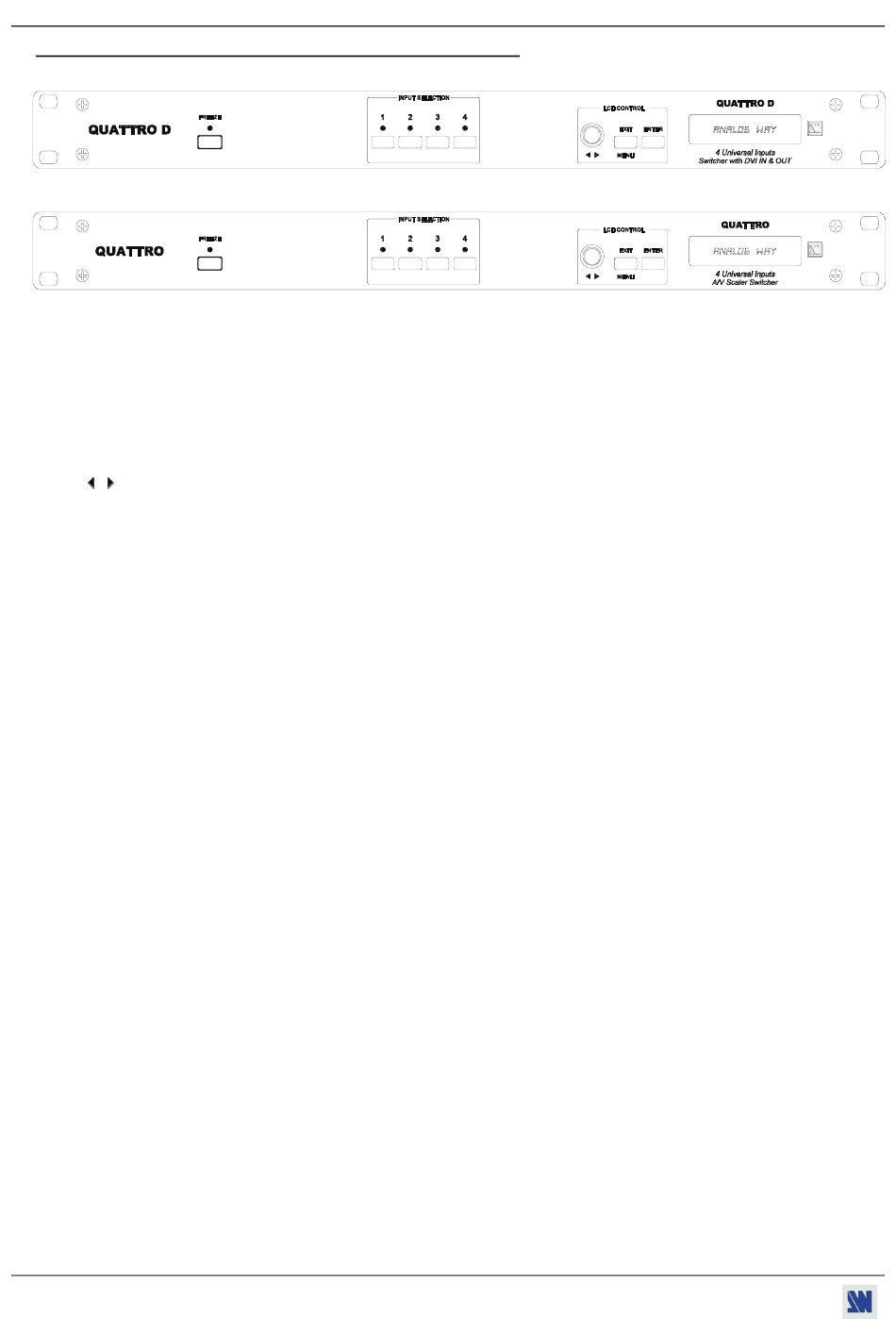

1-7. QUATTRO / QUATTRO D FRONT PANEL DESCRIPTION

• QUATTRO D (QTD402)
• QUATTRO (QTA401)
FREEZE :

INPUT SELECTION:

CONTROL
EXIT - MENU:
ENTER:
PAGE 10
Freeze the output (the blinking LED indicates the FREEZE is active).
• Selection of the 4 input sources: 1 to 4.
• A long push (1 second) on the selected input button allows to active the BLACK
function. A black screen is displayed onto the corresponding output. A short push on the
same button allows to inactive this function.
Allows to scroll thru the different menus (in Control mode).
Switches between Status and Control mode.
Validates a selected item.
