Bohrbild
Bohrbild
Bohrbild
Flügel
Vantail
(14)
Leaf
Flügel
Vantail
Leaf
10
* M6 = 909220 Bohrer Ø 5.5 mm
909221 Gewindeformer M6
10
* M6 = 909220 Bohrer Ø 5.5 mm
* M6 = 909220 Bohrer Ø 5.5 mm
909221 Gewindeformer M6
909221 Gewindeformer M6
Bohrlehre 909109
Bohrlehre 909109
Bohrlehre 909109
EWA_pr60S_Bohrbild
EWA_pr60S_Bohrbild
Schéma de perçage
Schéma de perçage
(14)
14
4
21
* M6 = 909220 foret Ø 5.5 mm
4
* M6 = 909220 foret Ø 5.5 mm
Gabarit de perçage
909109
Gabarit de perçage
909109
Schéma de perçage
Rahmen
(21)
Cadre
(14)
Frame
(21)
Rahmen
Cadre
(14)
Frame
909221 taraud M6
14
21
* M6 = 909220 foret Ø 5.5 mm
909221 taraud M6
909221 taraud à refouler M6
Bohrlehre
Gabarit de perçage
inklusiv Bohrer 909220 und Gewinde-
909109
former 909221
Gabarit de perçage
Bohrlehre
mèche 909220 et taraud 909221 in cluse
inklusiv Bohrer 909220 und Gewindeformer 909221
Drilling template
Gabarit de perçage
bit 909220 and tapper 909221 included
mèche 909220 et taraud 909221 à refouler inclus
Bohrlehre
Drilling template
inklusiv Bohrer 909220 und Gewinde-
bit 909220 and thread former 909221 included
former 909221
Gabarit de perçage
mèche 909220 et taraud 909221 in cluse
Drilling template
bit 909220 and tapper 909221 included

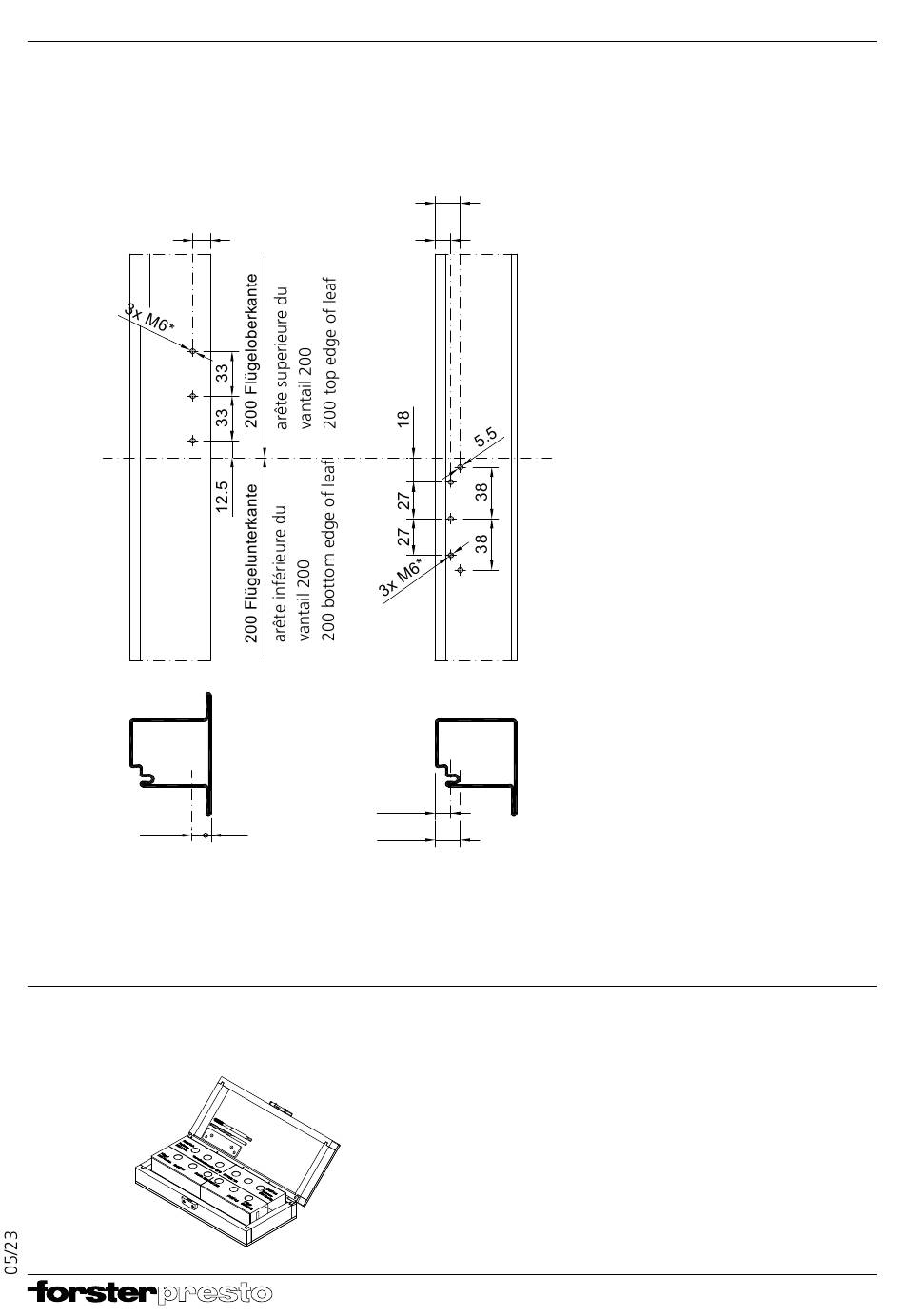

Hole layout
Hole layout
Hole layout
Masstoleranz ± 0.05 mm
Masstoleranz ± 0.05 mm
Tolérance dimensionnelle
Tolérance dimensionnelle
± 0.05 mm
± 0,05 mm
Dimensional tolerance
Dimensional tolerance
± 0.05 mm
± 0.05 mm
* M6 = 909220 drill bit Ø 5.5 mm
909221 tapper M6
* M6 = 909220 drill bit Ø 5.5 mm
* M6 = 909220 drill bit Ø 5.5 mm
909221 tapper M6
909221 thread former M6
Drilling template
909109
Drilling template
909109
Drilling template
909109
www.forster-profile.ch
Masstoleranz ± 0.05 m
Tolérance dimensionn
± 0.05 mm
Dimensional tolerance
± 0.05 mm
