4.2 Transportation kit assembly

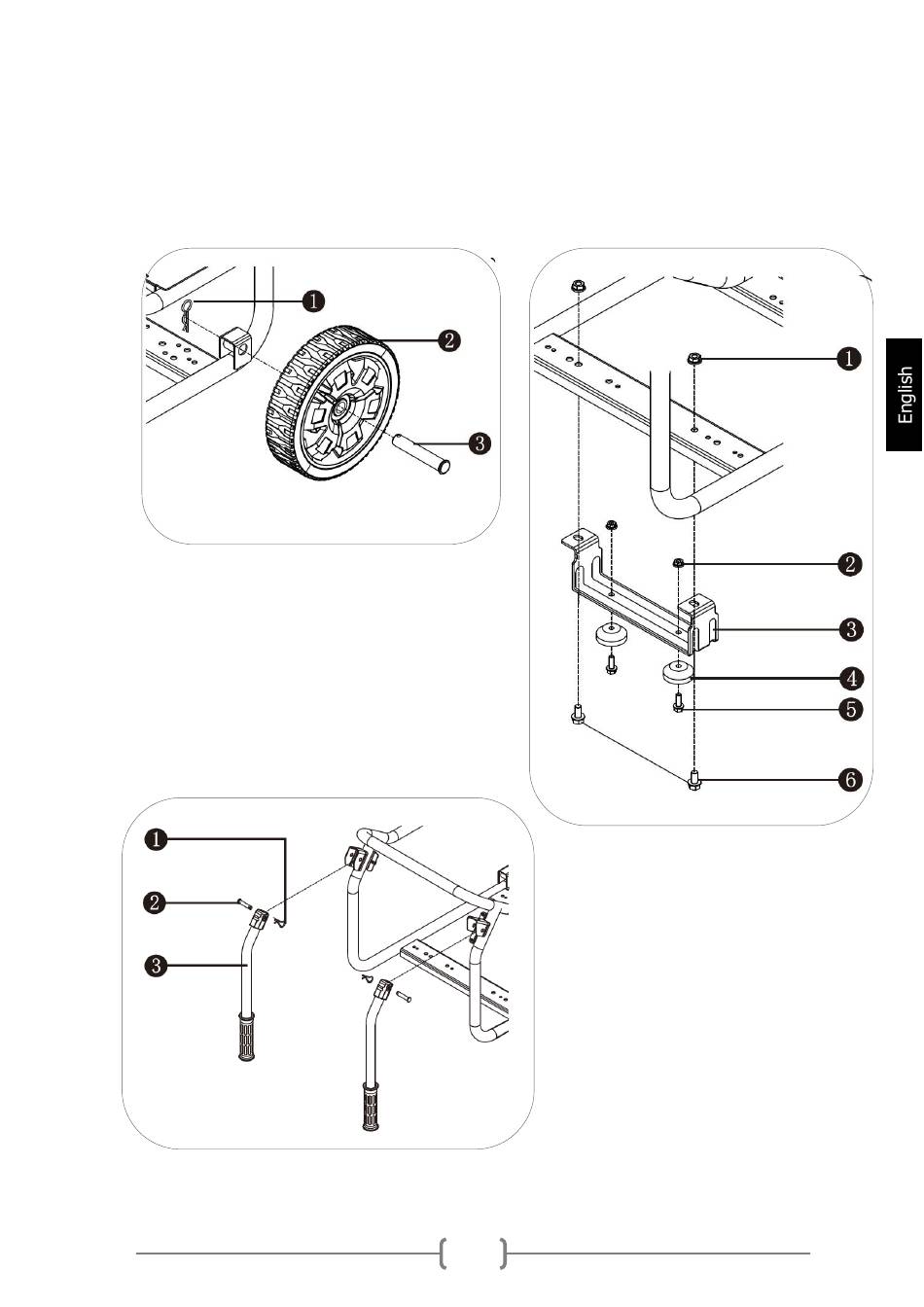

Fix the wheels according to the lower figure: Cross the wheel (2) with the shaft (3), pass
the end of the shaft through the hole provided in the generator frame for this purpose.
Finally fix the shaft with the pin
Fix the transport wheels and support feet
according to the figure on the right.
Attach the rubber feet (4) to the bracket foot (3)
using the M6x18 screws (5) and the M6 nuts
(2).
Once the bracket foot is assembled, fix it to the
machine frame using the M8 x18 screws (6)
and the M8 nuts (1).
(1)
Fix the handles according to the
figure on the left.
Place the transport handles (3) on
the frame by matching the holes of
the handle and the frame.
Cross the holes with the pins (2) and
fix them at the other end with the pin
R (1).
