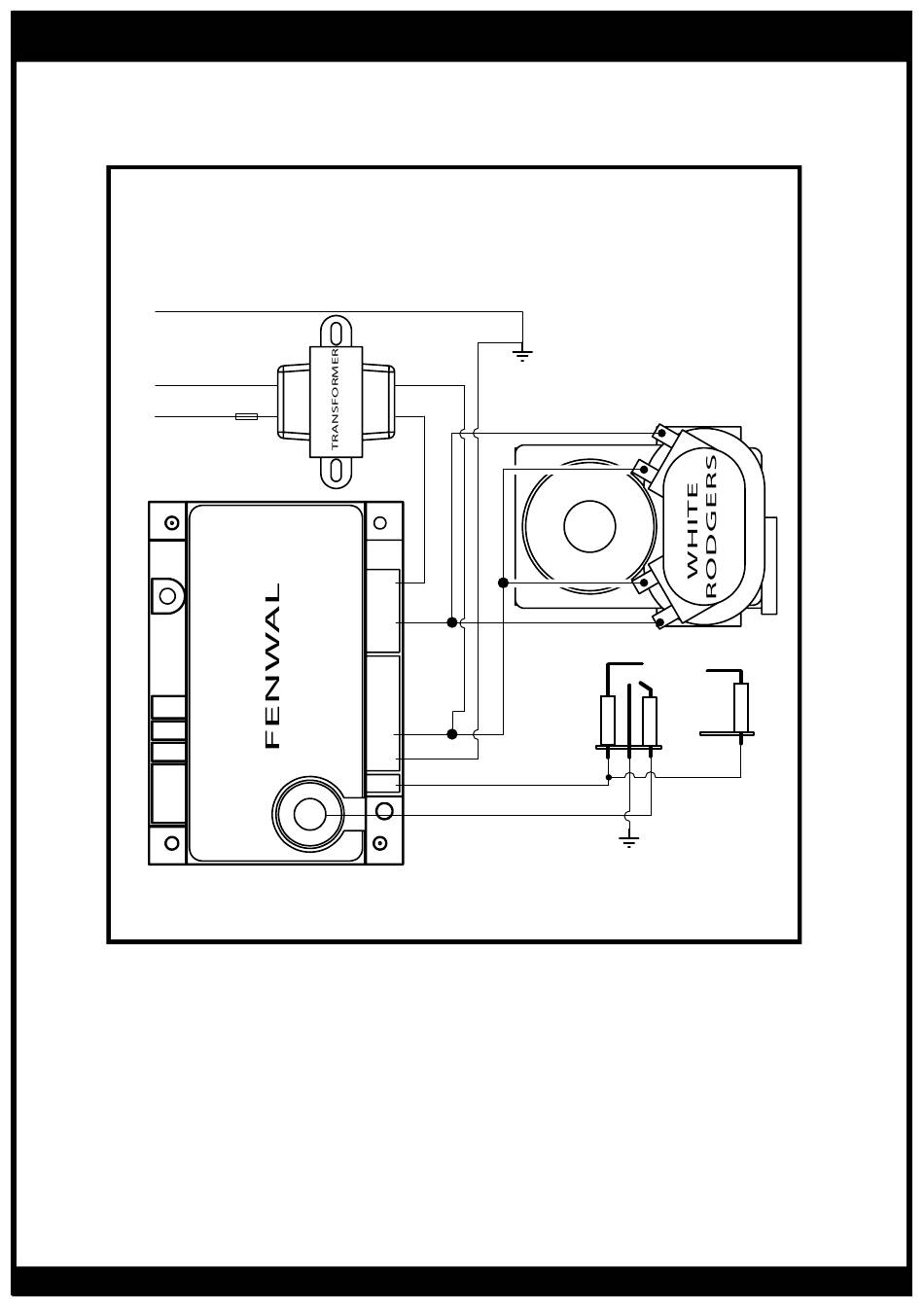

WIRING DIAGRAM - FENWAL CONTROL, WHITE RODGERS GAS vALvE
Green
E
N
White
Black - 110 V
L
Note:
If any of the original wire as supplied with the heater must be replaced, it must be replaced with 18AWG, 90ºC type UL
approved wire or its equivalent. If Transformer must be replaced, a UL approved model of similar type must be used.
20
ELECTRICAL DIAGRAM
SEE INSTRUCTION MANUAL FOR DETAILS ON HOW
TO CONNECT THE ELECTRICAL COMPONENTS.
T H
V 1
V 2
GND.
S 1.
www.bromicheating.com
Blue
24 V
Red
Orange
Ignition + ionisation
Blue
Yellow/Green
White
Black HT Cable
ionisation
