Installation
Mounting Location Requirements
● Do not subject the solar charge controller to direct sunlight or any other heat sources. Protect the
charge controller from any dust, dirt, and moisture.
● Mount it flat to a vertical wall. If there is a backing material installed on the wall, make sure that it
is non-flammable material. Ensure the electrical terminals face downwards.
●
Maintain a minimum clearance of 6 inches (or 15 cm) above and below and around the
controller to ensure unhindered air circulation. Mount the charge controller as close to the
batteries as possible (for accurate voltage sensing).

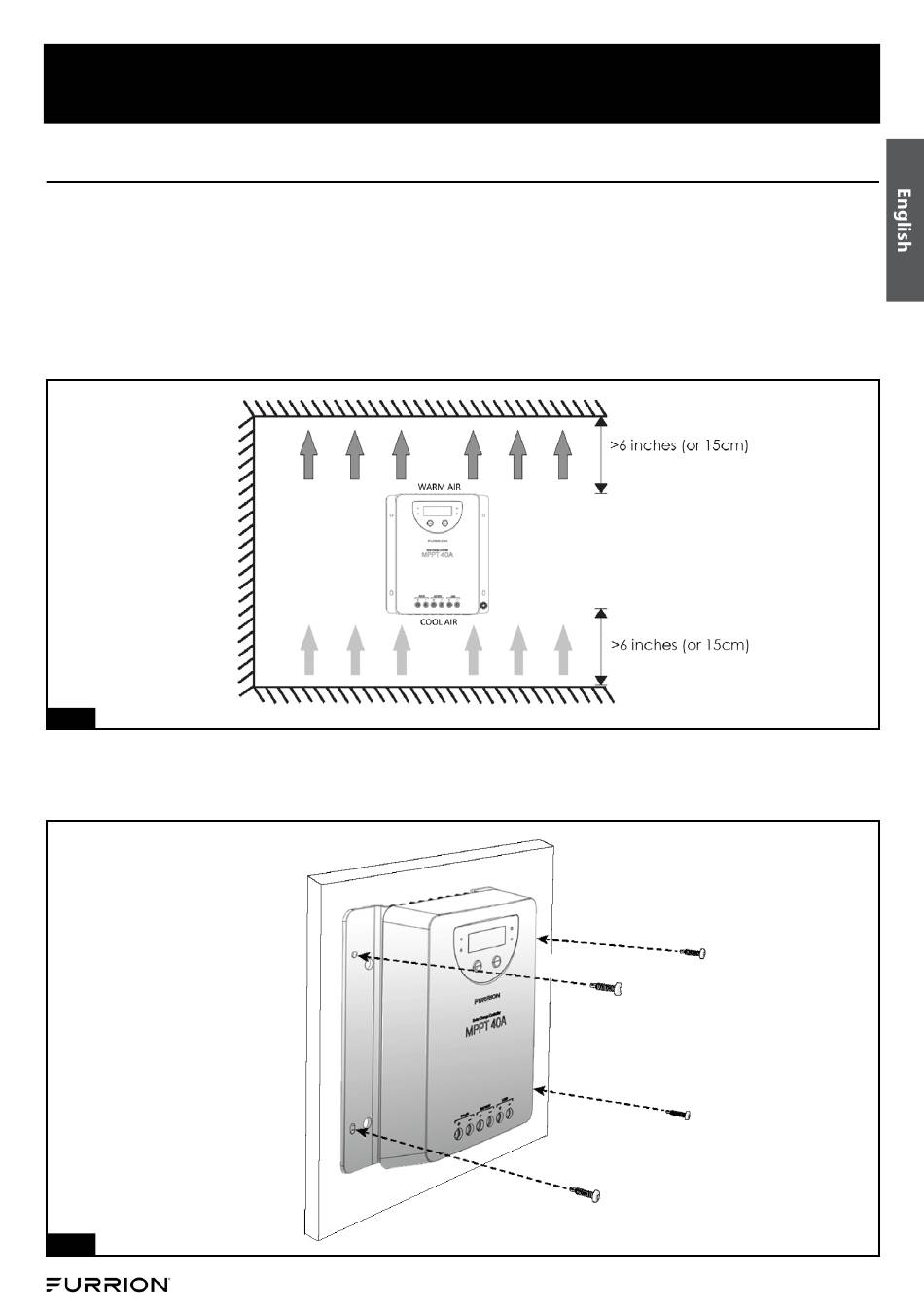

Fig. 5
Fig. 5
● Mark the position of the charge controller's mounting holes on the wall, drill 4 holes and insert
dowels and affix the charge controller to the wall using appropriate screws and the cable terminal
openings facing downwards.
Fig. 6
Fig. 6
- 10 -
