Technical Data
Type
Power supply
Nominal force *
Nominal stroke *
Running time (OPEN)
Ingress protection
Lifetime
Duty cycle
Housing
Temperature range
Fire stability
Additional functions *
* Programmable with SCS software

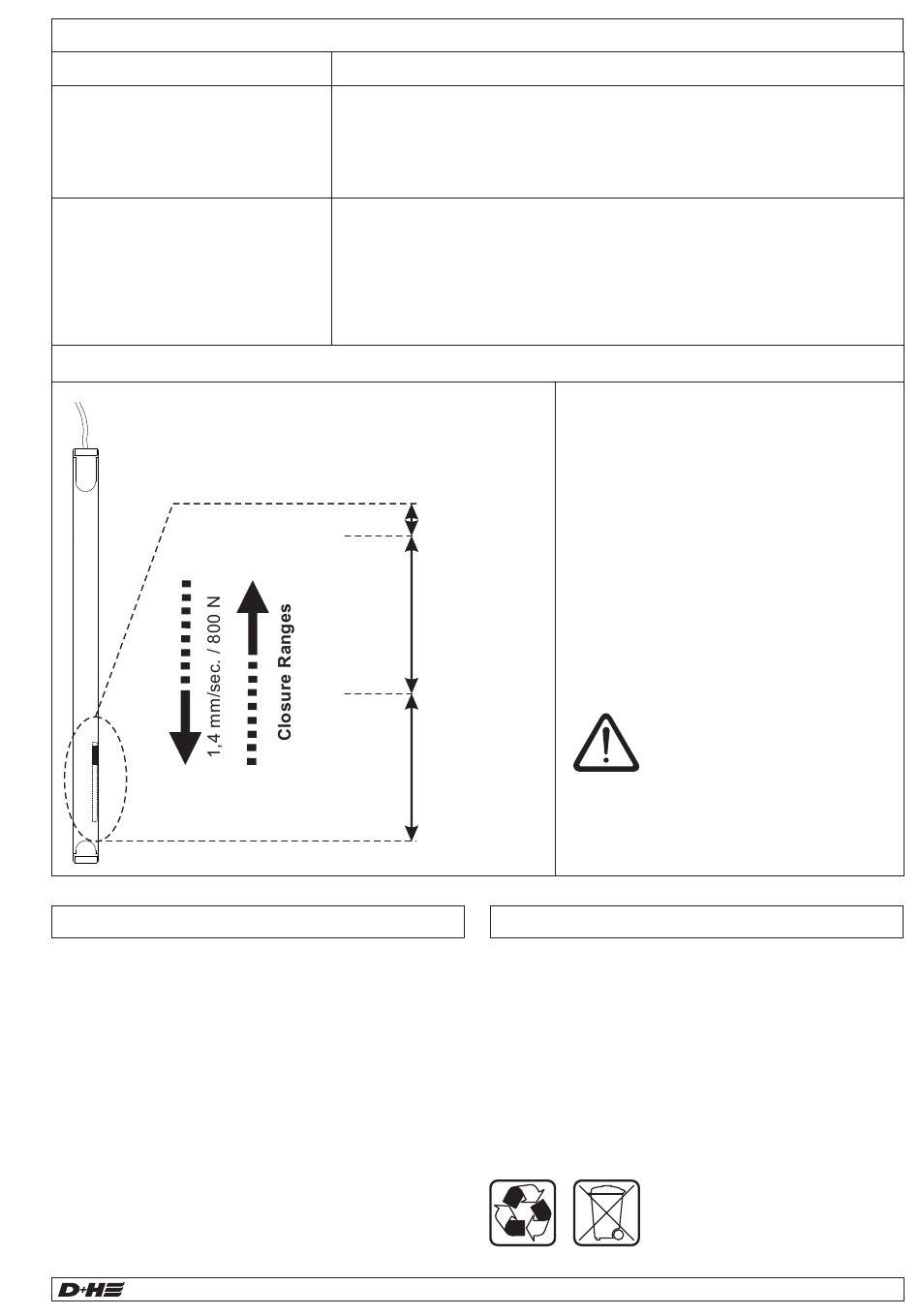

Running speed and forces
Cable from
the top
CLOSED
OPEN
Maintenance and cleaning
Maintenance work is only allowed when the device is in
a de-energized condition! Inspection and maintenance
has to be carried out according to D+H maintenance
notes. Only original D+H spare parts may be used.
Repair is to be carried out exclusively by D+H.
Wipe away debris or contamination with a dry, soft
cloth.
Do not use cleaning agents or solvents.
99.826.21 3.0/12/22
LDCO 1000/038
24 V DC / ±15% / 0.8 A
800 N (179.8 lbf)
38 mm
≤ 30 sec.
IP 54
>20 000 double strokes
30 %, With cycle time 10 minutes
Stainless steel - PA 6, end caps
-5 ... +75 °C (23 ... 167 °F)
30 min / 300 °C (572 °F)
Closing edge protection activated, 2 stroke repeatings
0,8 mm/sec.
I
2 mm
800 N
0,8 mm/sec.
II
23 mm
250 N
1,4 mm/sec.
III
800 N
English
Entrapment protection
In "CLOSE" direction the drive has an
active clamping protection for the main
closing edge. With an overload in the
closing range 3 and 2 the drive runs
"OPEN" for 10 seconds, then drive
"CLOSE" again. If after two attempts a
closing is not possible, the drive remains
in this position.
In addition, the drive has a passive
clamping protection. The closing speed
in closure Range 2 and 1 is reduced. The
drives were not evaluated for entrapment
protection.
Higher forces can occur on
besides closing edges.
Danger of violent pressure
in handaccessible area.
Disposal
Electrical devices, accessories, batteries and packa-
ging should be sorted for environmental-friendly
recycling. Do not dispose electrical devices and
batteries into household waste!
Only for EC countries:
According the European Guideline 2012/19/EU for
waste electrical and electronic equipment and its
implementation into national right, electrcal devices
that are no longer usable must be collected separa-
tely and disposed of in an environmentally correct
manner.
LDCO 1000/038 -L/-R
3/12
