CHARGING MODES (CONTINUED)
STEP 6: ABSORPTION (Provides gradually declining current charge for maximum battery voltage)
STEP 7: ANALYSIS (Tests if the battery can hold charge)
STEP 8: MAINTENANCE (Continuously monitors the battery, and charges with trickle current once the voltage is lower than
the threshold.)

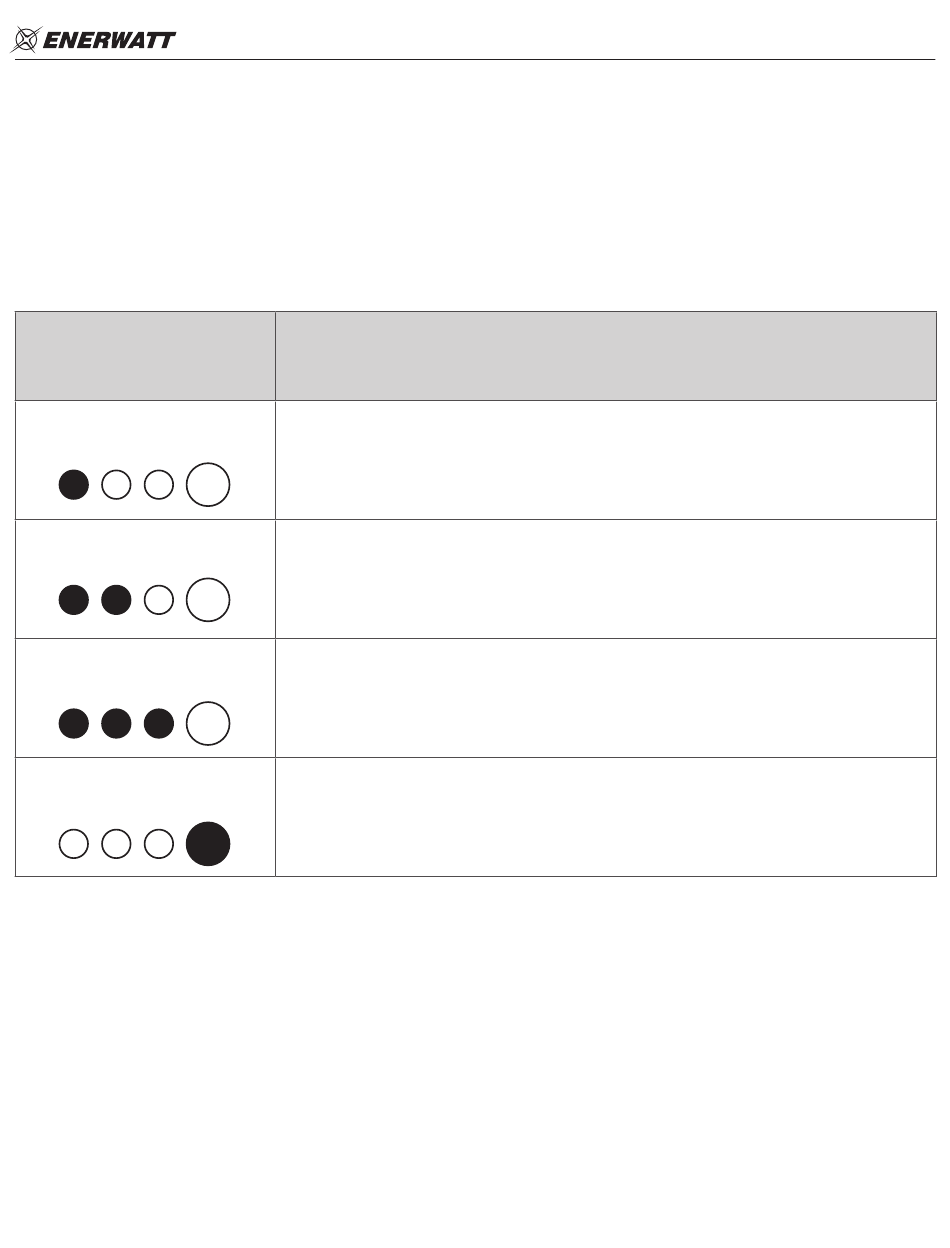

BATTERY LEVEL INDICATOR
LED
25 %
25 % 50 % 75 % 100 %
50 %
25 % 50 % 75 % 100 %
75 %
25 % 50 % 75 % 100 %
100 %
25 % 50 % 75 % 100 %
The 25% Charge Red LED will slowly flash when the battery level is less than 25%.
When 25% is reached, the LED will be solid.
The 50% Charge Red LED will slowly flash when the battery level is less than 50%.
When 50% is reached, the LED will be solid.
The 75% Charge Red LED will slowly flash when the battery level is less than 75%.
When 75% is reached, the LED will be solid.
The 100% Charge Green LED will slowly flash when the battery level is less than 100%.
When 100% is reached, the 100% Charge LED will be solid.
The 25%, 50% and 75% Charge LEDs will turn off.
