Minor semi-axis setting

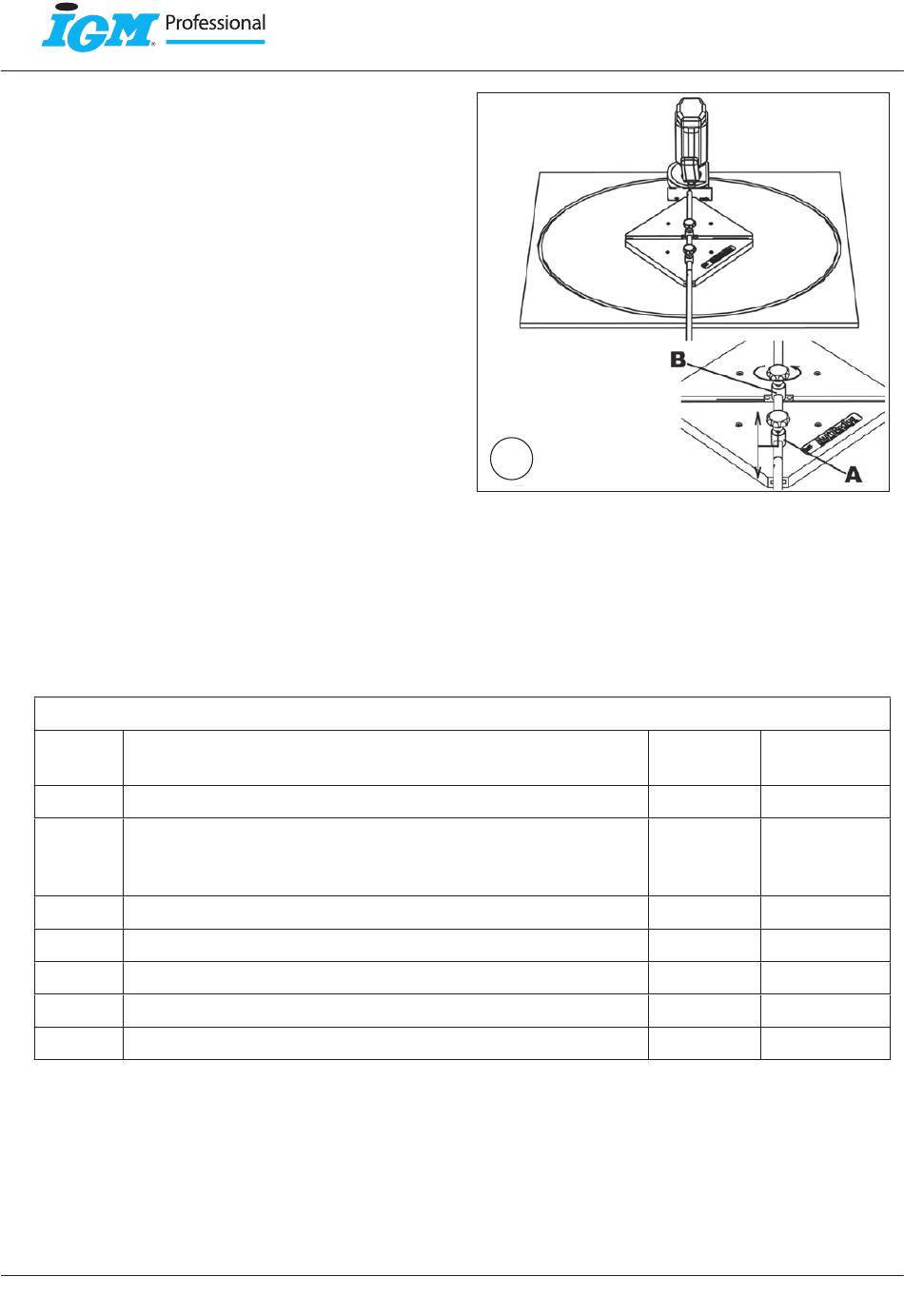

(fig. 6) Rotate the router by 90°. (Cross frame is not
rotated! Slider B is in the center of the cross frame).
Set the required minor semi-axis length by shifting
the distance rod in the slider B pin; slider A is still
tighten! Setting finished, tighten the control screw of
the slider B.
Attention: If the work piece is bent or otherwise
crooked, after the tightening of the cross frame, the
sliders may jam in the grooves. Therefore use only
flat material!!!
1/ Respect the safety at work indicated by the producer of your portable router and tools used.
2/ The MultiRadius jig is safe if used in accordance with all principals of safety at work with routers and router bits.
3/ Always unplug the router when setting the MultiRadius jig.
4/ Read carefully the operating instructions before using the jig.
For questions contact your distributor or directly the producer.
FMR3000 Spare parts list v.2,1
Pos. #

Description

2 Sliders - complete
8, 9, 10,
11,12,13, Set of screws
14
6 *Guide rod D8 mm
Guide rod D10 mm
5 Distance rod with screw D16x400 mm
7 Control screw M8
Drawing compass
*not included in the basic pack
