C O N N E C T I O N S

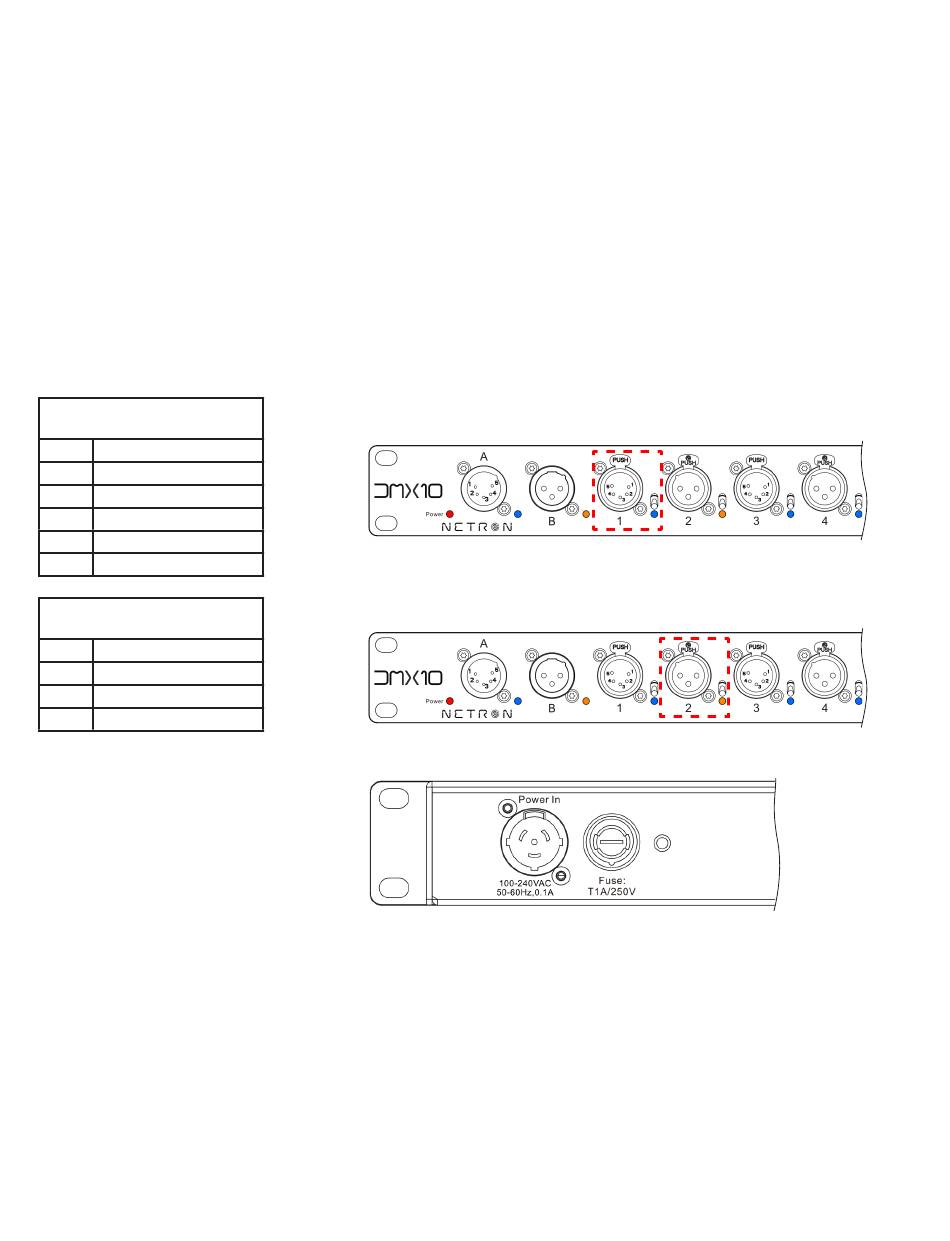

FRONT DMX CONNECTIONS: DMX10-53
-
(1) 5Pin DMX Input
-
(1) 3Pin DMX Input
-
(5) 5Pin Opto-Isolated DMX Outputs
-
(5) 3Pin Opto-Isolated DMX Outputs
5x DMX Output connections (#s 1, 3, 5, 7, & 9) are 5pin female XLR; the pin-out on all sockets is pin 1
to shield, pin 2 to cold (-), and pin 3 to hot (+). Pins 4 and 5 are not used.
5x DMX Output connections (#s 2, 4, 6, 8, & 10) are 3pin female XLR; the pin-out on all sockets is pin
1 to shield, pin 2 to cold (-), and pin 3 to hot (+).
Carefully connect DMX cables to the respective ports.
To prevent damaging the DMX ports, provide strain relief and support. Avoid connecting FOH Snakes
to the ports directly.
5-Pin Connectors
Labelled: 1, 3, 5, 7, & 9
Pin
Connection
1
Com
2
Data -
3
Data +
4
Not connected
5
Not connected
3-Pin Connectors
Labelled: 2, 4, 6, 8, & 10
Pin
Connection
1
Com
2
Data -
3
Data +
REAR CONNECTIONS
-
Power In
-
Fuse
