ENGLISH
PRECAUTIONS
•
Make sure that the device is intact after removing it from the package.
•
Disconnect the device from the mains before cleaning or maintenance. Do not use spray products to
clean the device.
•
Never touch the surface of the sensor of the CCTV camera. In the case of accidental contact, clean
the sensor with a soft cloth moistened with alcohol.
•
Check that the working temperature is within the indicated range and that the environment is not
particularly humid.
•
Disconnect power by means of the circuit breaker in the event of a failure and/or bad operation.
•
The device can only be opened by qualified technical personnel.
•
Exclusively contact an authorised service centre for repairs.

TECHNICAL SPECIFICATIONS

Type of sensor:.................................................................................................................................. 1/3" CCD
Sensitive element: ................................................................. 500 pixels (horizontal) x 582 pixels (vertical)
Scanning system: .............................................................. 2:1 interlaced - CCIR - V: 50 Hz - H: 15.625 kHz
Horizontal resolution:....................................................................................................................... >380 lines
Synchronisation: ...................................................................................................................................Internal
Auto-Iris: .......................................................................................................... Selectable DC - VIDEO driver
Shutter control: ...............................................................................................1/50 ~ 1/100,000 sec (ON/OFF)
Back-lighting compensation:............................................................................................ ON/OFF Switchable
Gain control: .................................................................................................................... ON/OFF Switchable
Minimum luminosity: ................................................................................................................... 0.3 Lux F=1.2
Video output: ............................................................................................Composite output 1 Vpp, 75 Ohm
Lens mount:............................................................................................................................... "C" and "CS"
S/R ratio:............................................................................................................................ >48 dB (AGC OFF)
Power: ................................................................................................................................................. 230 Vac
Consumption: ........................................................................................................................................50 mA
Working temperature range:........................................................................................................... -10 to 50°C
Storage temperature range: ........................................................................................................... -30 to 60°C
Dimensions (L x W x H):................................................................................................... 137 x 52.8 x 50 mm
Weight: .................................................................................................................................................... 350 g

ACCESSORIES PROVIDED

•
BNC crimp connector.
•
"C" – "CS" mount adapter.
•
4-pin Auto-Iris connector.

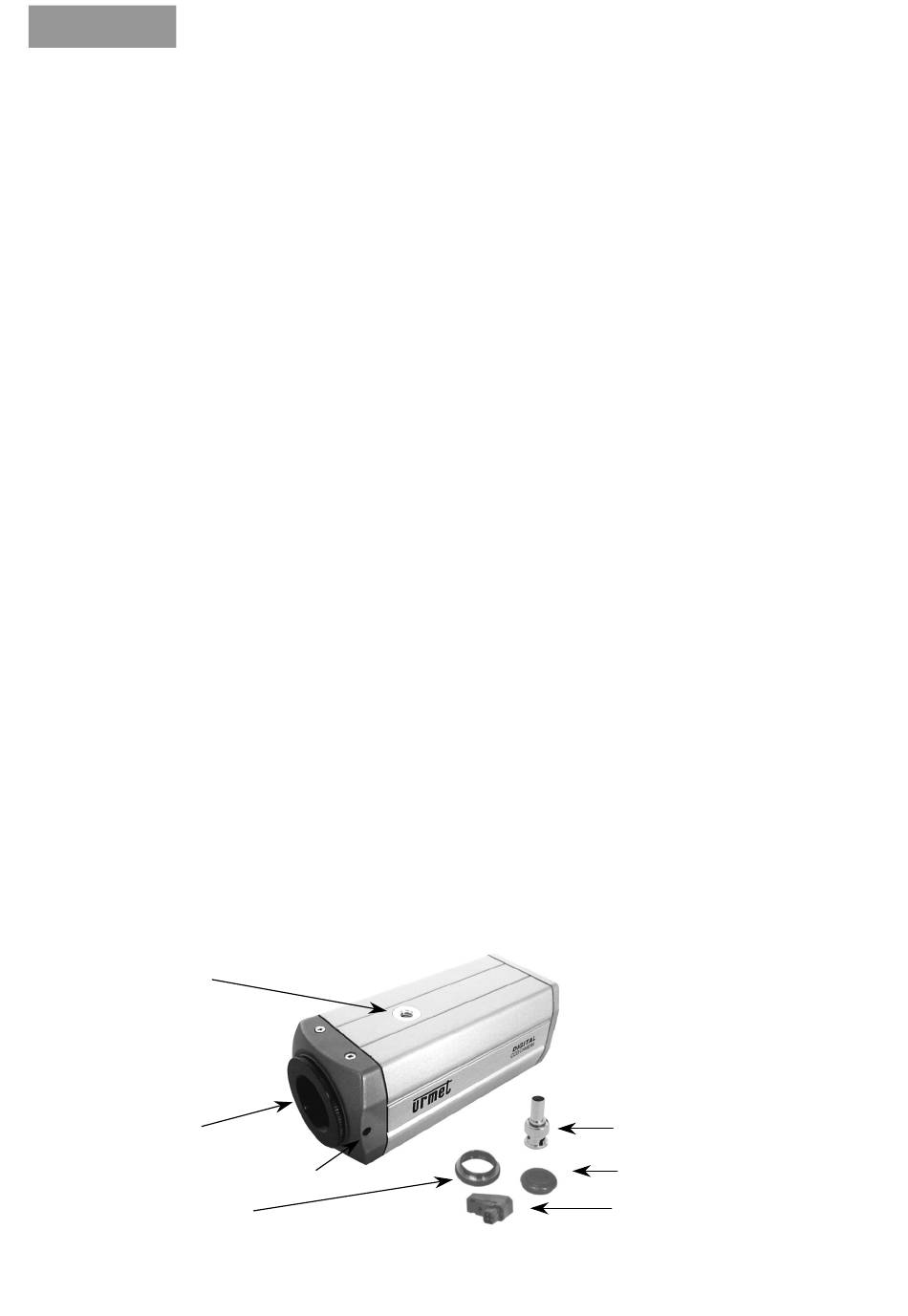

IDENTIFICATION OF THE MECHANICAL PARTS
Mounting bracket
Back-focus ring
Back-focus ring mount fixing screw
"C"-"CS" mount adapter
LBT7984
BNC crimp connector
Lens mount cap
AUTO-IRIS connector
