Operation

Observe the safety instructions!
Important note: The machine must only be commissioned when the protection
and safety equipment is completely mounted.
Dust extraction:
When used in enclosed rooms, the machine must be connected to a dust
extractor unit.
Connecting the dust extractor for surface planing:

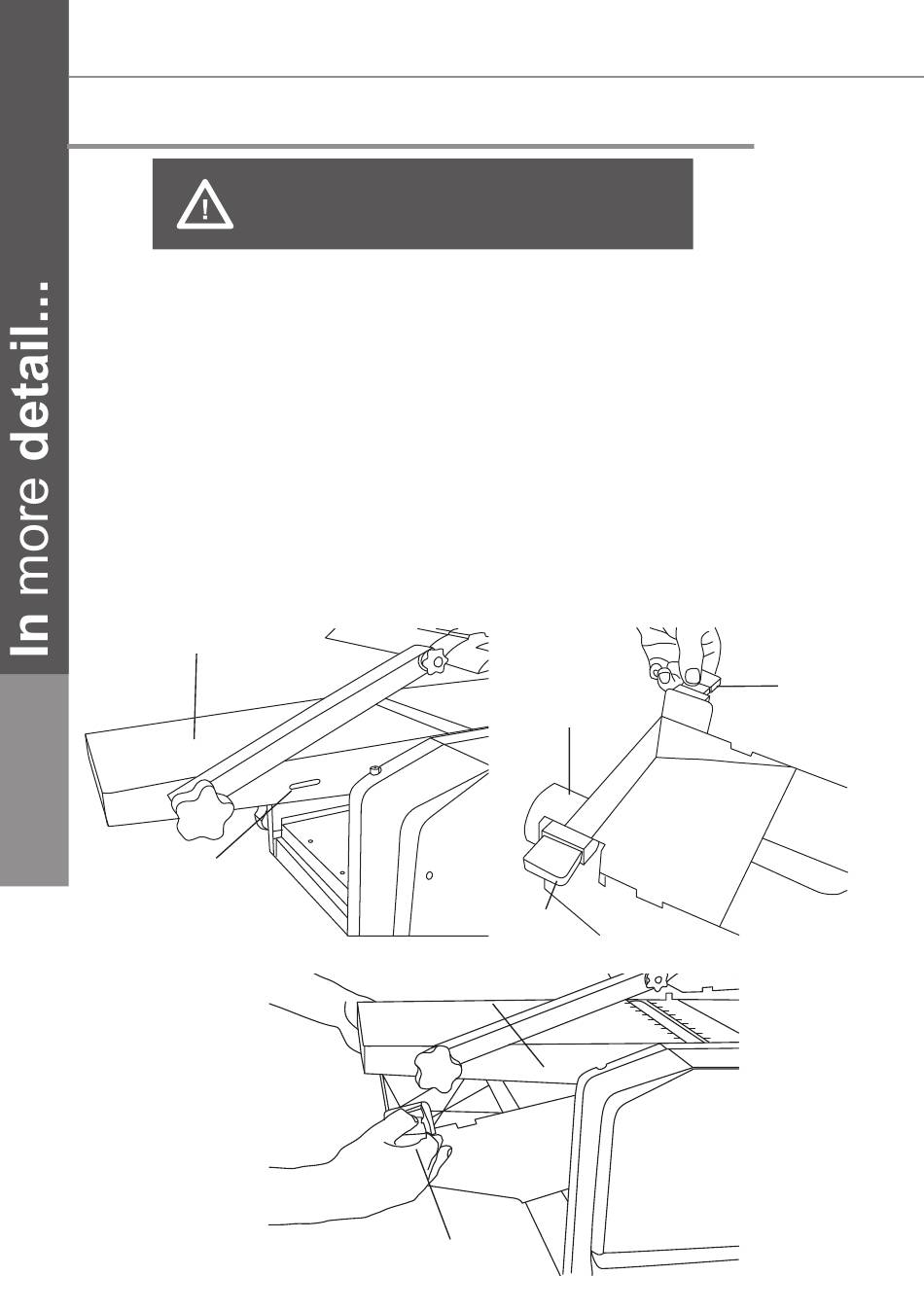

• Lift the arm G of the cutter block guard in order to free the mortises (Fig. 6).
• On both sides of the suction connector, pull out the switching pins I (Fig. 7).
• Set the thicknessing table to the lowest position and push the suction
connector into the machine until both switching pins I can slide into the
mortises H (Fig. 8).
