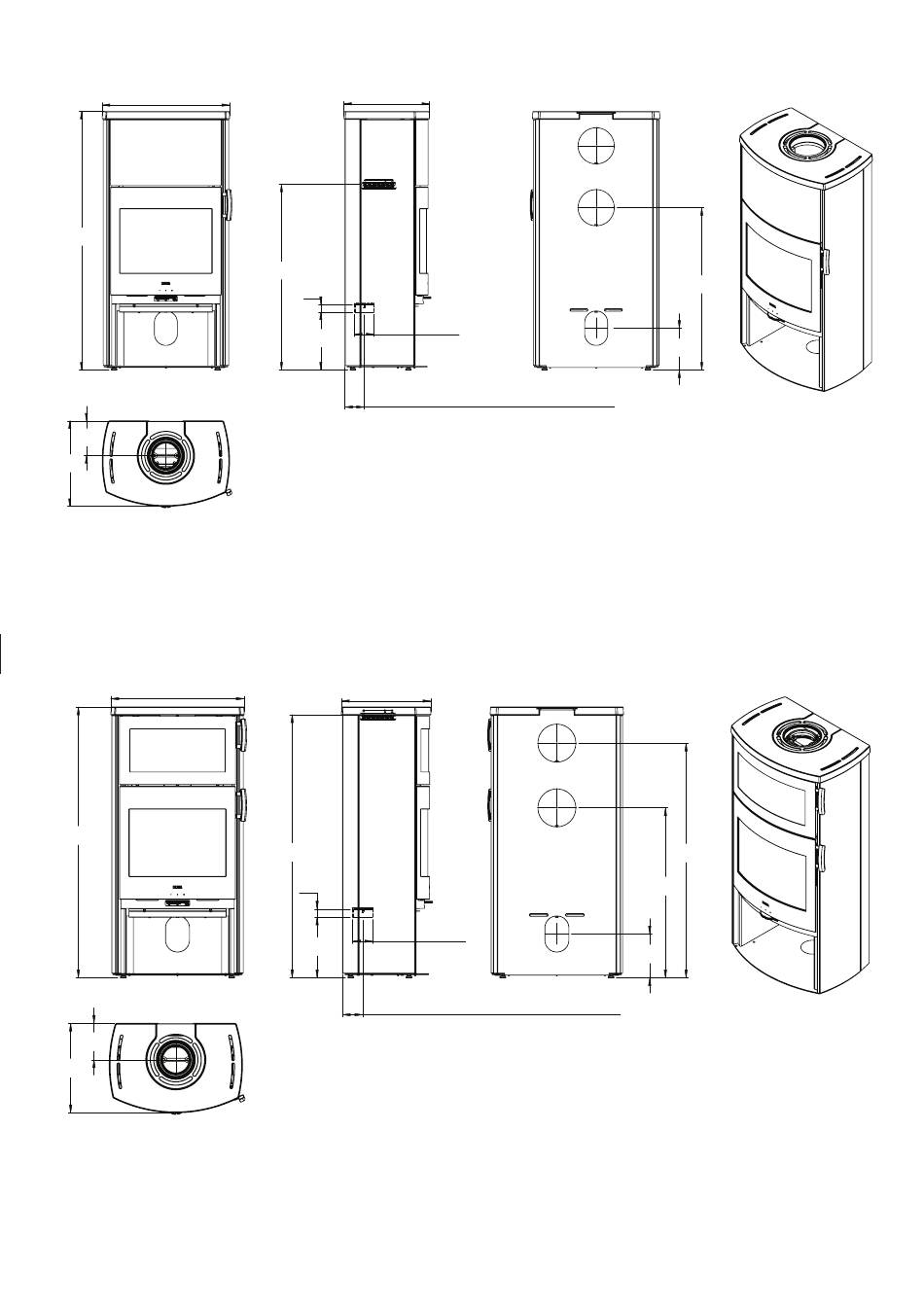

Icon-Line Eclipse XL S série
665
1351
182
447
Icon-Line Eclipse XL B série
665
1350
182
447
447
970
40
ø100
303
101Center fresh air from bottom
The same dimensions apply to
thermal stones (Steel) and
stone models
447
1312
40
ø100
303
101 Center fresh air from bottom
The same dimensions apply to
baking stove (Steel) and
stone models
848
219
1170
848
219
