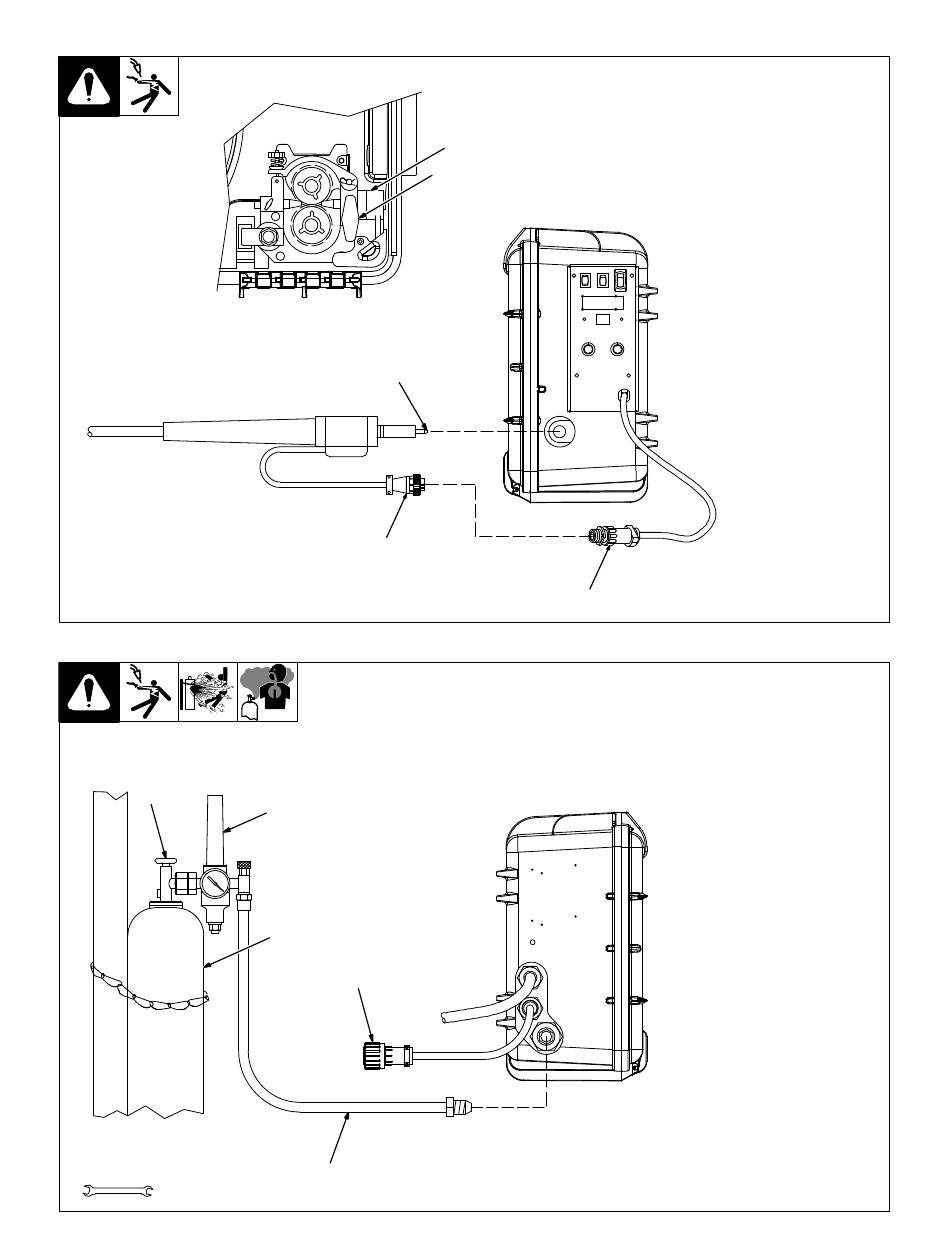

4-10. Connecting Welding Gun
4-11. Connecting Shielding Gas
3
Tools Needed:
5/8 in.
Internal Side View
3
4
4
2
5
1
2
1
5
Rear View
1 Gun Securing Knob
2 Gun Block
3 Gun Outlet Wire Guide
Loosen knob, insert gun end into
block. Position outlet wire guide as
close as possible to drive rolls with-
out touching. Tighten knob.
4 Gun Trigger Plug
5 Gun Trigger Receptacle
804 209-A
1 Gas Hose With 5/8-18
Right-hand Thread Fittings
(Customer Supplied)
2 Shielding Gas Cylinder
.
Shielding gas pressure not to
exceed 90 psi (620 kPa).
3 Valve
4 Flowmeter
5 14-Pin Plug
Close valve on cylinder when fin-
ished welding.
804 208-A
OM-221 687 Page 17
