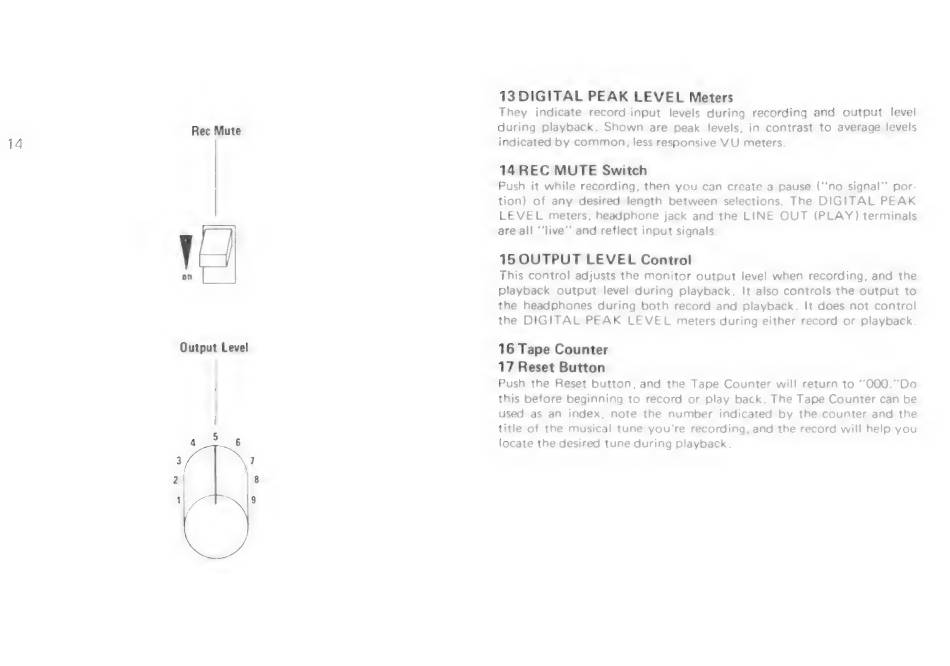

14
Rec Mute
Output Level
They
indicate
record-input
levels during
recording
and
output
level
during playback.
Shown
are peak
levels, in contrast
to average levels
indicated by common,
less responsive VU meters.
14 REC MUTE Switch
Push it while recording, then you can create a pause (''no signal' por-
tion) of any desired
length between
selections.
The
DIGITAL
PEAK
LEVEL
meters, headphone jack and the LINE OUT
(PLAY) terminals
are all ''live'' and reflect input signals.
15 OUTPUT LEVEL Control
This control adjusts the monitor output level when recording, and the
playback
output
level during playback.
It also controls the output
to
the headphones during both record and playback.
It does not control
the DIGITAL
PEAK
LEVEL
meters during either record or playback.
16 Tape Counter
17 Reset Button
