Multi-Product Mounting
The Strike Array 4 has an interlocking system to connect multiple Strike Array 4 or Strike Array 2 products together,
vertically or horizontally. Make sure the mounting clamps are capable of supporting the weight of the product. For our
Chauvet line of mounting clamps, go to http://trusst.com/productcategory/truss-clamps/.

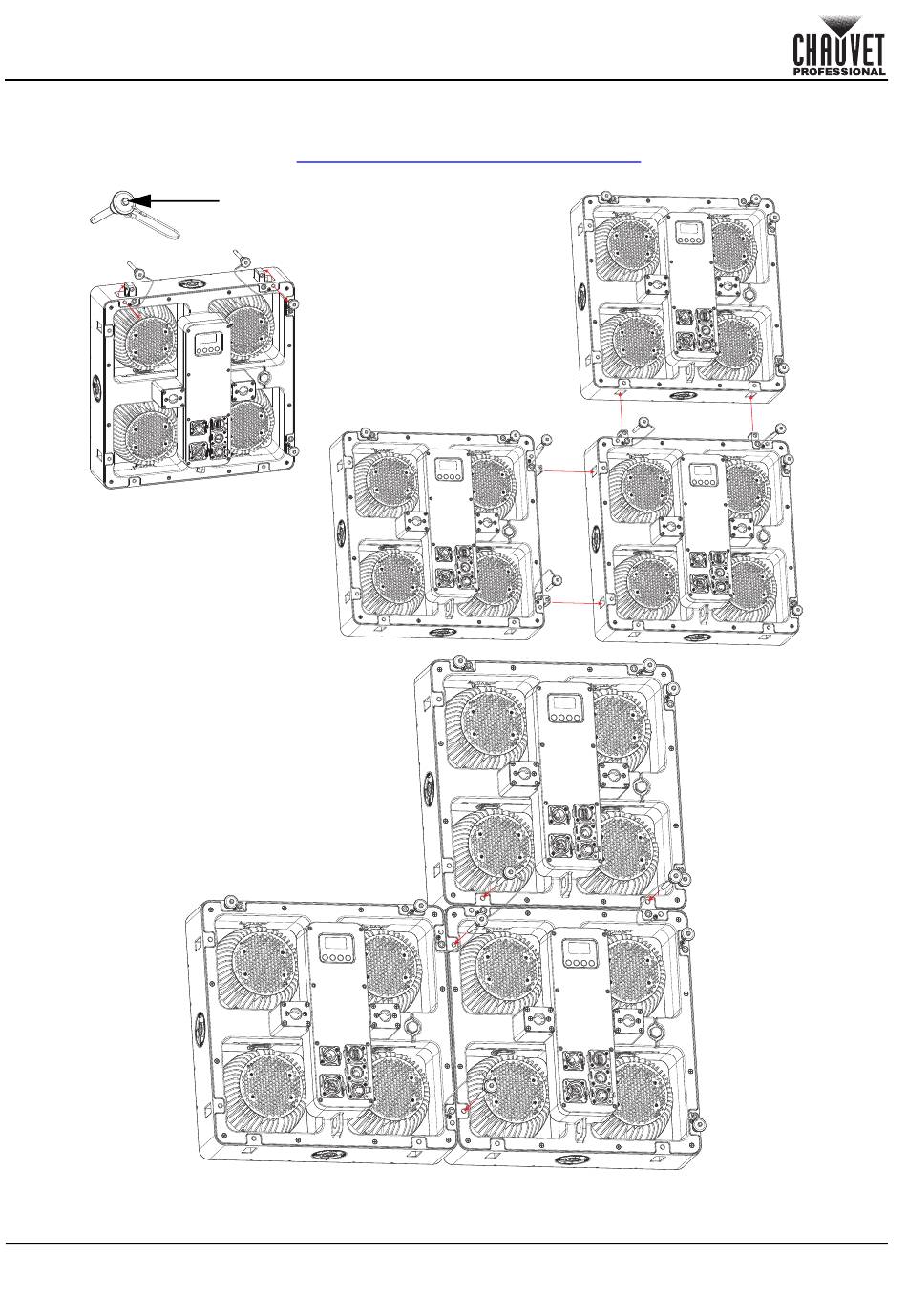

Multi-Product Mounting Diagram
3
QUICK REFERENCE GUIDE
Latch Press and hold the latch
button button to remove or
insert the retaining pins
Remove the retaining pins
to release the integrated
hanging hardware
Insert the integrated
hanging hardware into the
opening of the next product
(vertically or horizontally)
Insert the retaining
pins to lock the
products together
