AC Power
This product has an auto-ranging power supply that can work with an input voltage range of 100–240 VAC, 50/60 Hz.
Power Linking
You can link up to 5 Strike Array 4 products at 100 V, 6 products at 120 V, 11 products at 208 V, 12 products at 230 V, or
12 products at 240 V. Never exceed this number. Power linking cords can be purchased separately.
AC Plug
Connection
AC Live
AC Neutral
AC Ground
To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely
disconnect the product from power via breaker or by unplugging it.
DMX Linking
The Strike Array 4 will work with a DMX controller using a 5-pin DMX serial connection. A DMX Primer is available from
www.chauvetprofessional.com.
DMX Connection
The Strike Array 4 uses a wireless DMX data connection for its DMX personalities: 1 Ch, 3 Ch, 4 Ch, 5 Ch, 6 Ch, and
10 Ch. See the User Manual for information about connecting and configuring the product for DMX operation.
Master/Slave Connection
The Strike Array 4 uses the DMX data connection for its Master/Slave mode. See the User Manual for information about
connect and configure the product for master/slave operation.
RDM (Remote Device Management)
Remote Device Management, or RDM, is a standard for allowing DMX-enabled devices to communicate bi-directionally
along existing DMX cabling. Check the DMX controller's User Manual or with the manufacturer as not all DMX controllers
have this capability. The Strike Array 4 supports RDM protocol that allows feedback to make changes to some menu map
options. Download the User Manual from
Mounting
Before mounting this product, read the
weight of the product. For our Chauvet line of mounting clamps, go to http://trusst.com/productcategory/truss-clamps/.

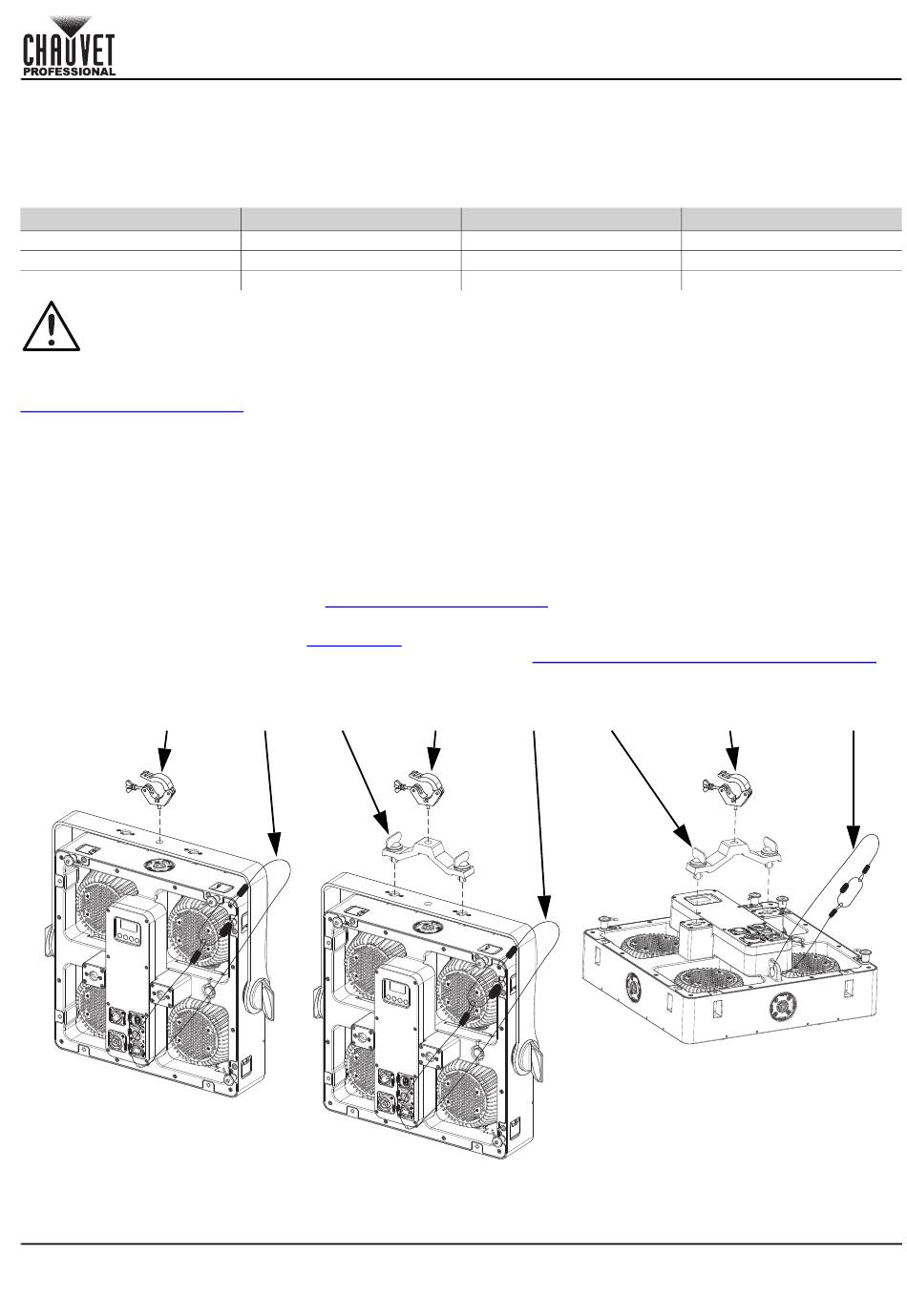

Product Mounting Diagram
Mounting
clamp
Strike Array 4 QRG Rev. 5
QUICK REFERENCE GUIDE
Wire (U.S.)
Black
White
Green/Yellow
www.chauvetprofessional.com
Safety Notes. Make sure the mounting clamps are capable of supporting the
Safety Omega Mounting
cable bracket
Wire (Europe)
Brown
Blue
Green/Yellow
for more details.
Safety
clamp cable bracket
Screw Color
Yellow/Brass
Omega Mounting
clamp
EN
Silver
Green
Safety
cable
