INSTALLATION INSTRUCTIONS
C-PHB-C-L2F-SCCT Series
With Emergency Backup
FIELD INSTALLED OCCUPANCY SENSOR
ACCESSORY KIT
Requires use of PIR Occupancy Sensor or
Microwave Occupancy Sensor (120-277V only)
NOTE: When occupancy sensor is used, dimming is controlled by the
occupancy sensor.
1.
Remove (8) screws holding fixture back cover in place and remove
back cover. Set screws aside for later use. See Figure 1.
2.
Remove one 1/2" knockout on one end of the fixture.
3.
Mount the sensor by passing the sensor wires and threaded nipple
through the 1/2" knockout opening. Secure the sensor in place
with the conduit nut.
4.
Wire the sensor to the dimming and voltage supply leads by
following the wiring directions included with the sensor.
NOTE: Vin (switched) must be connected to the sensor hot (black)
input lead, and sensor output lead (red) must be connected to the
fixture hot black (switched) line lead.
5.
Replace the fixture back cover and secure in place using the (8)
screws removed in Step 1.
6.
Adjust sensor settings using the installation instructions included
with the sensor.
FACTORY INSTALLED OCCUPANCY SENSOR
NOTE: When occupancy sensor is used, dimming is controlled by the
occupancy sensor.
1.
Adjust sensor settings using the installation instructions included
with the sensor
FCC NOTICE
CAUTION: Changes or modifications not expressly approved could
void your authority to use this equipment.
This device complies with part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This device may not cause
harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits
for a Class A digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with
the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area
is likely to cause harmful interference in which case the user will be
required to correct the interference at his own expense.
CAN ICES-005 (A)/NMB-005 (A)
http://lighting.cree.com/warranty
Document
LPN00708X0002A0_A
Created By:
TMT

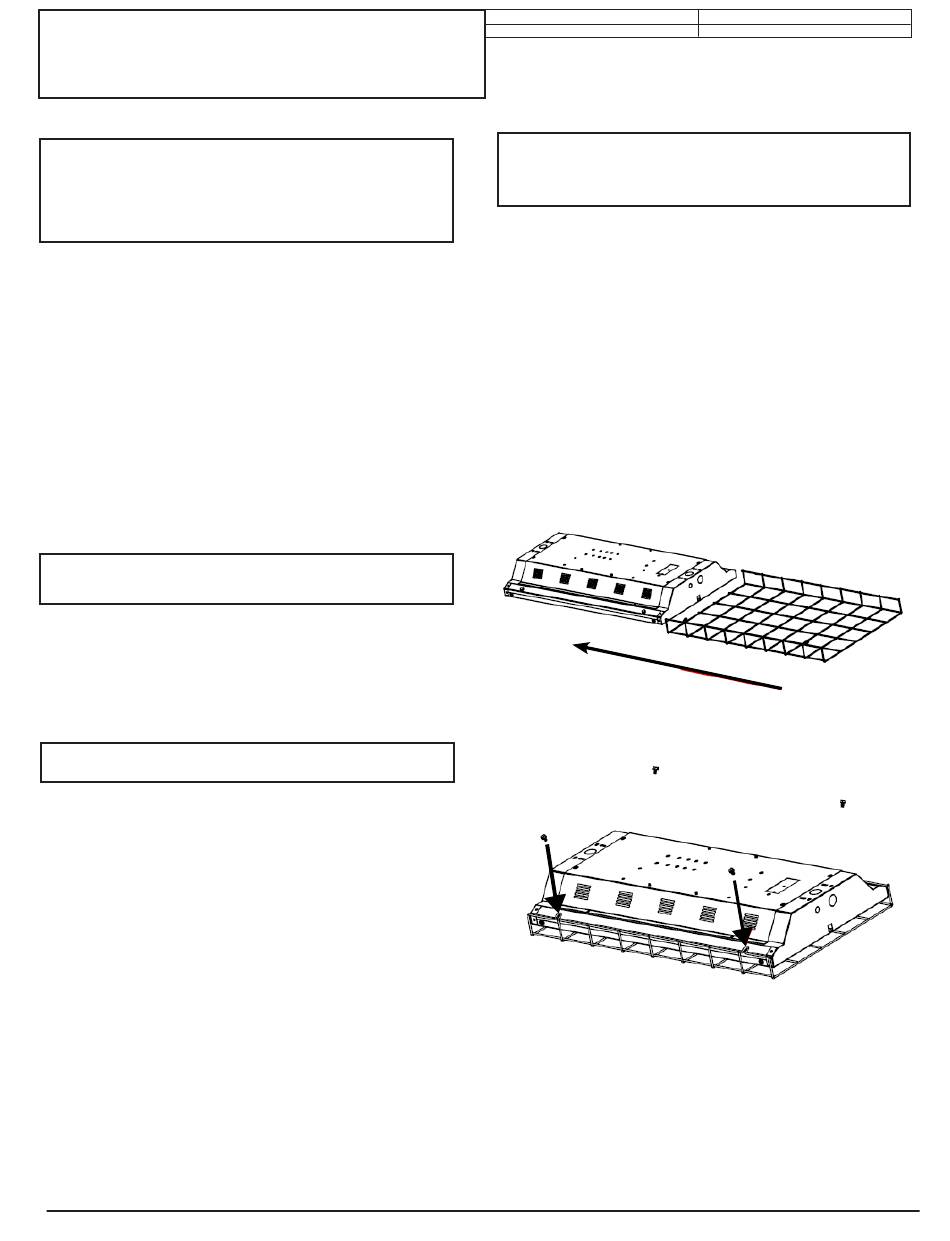

WIRE GUARD ACCESSORY
Requires use of Wire Guard Accessory Kit
1.
Slide the wire guard over the bottom face of the fixture, making
sure the screw attachment locations on the wire guard are
positioned above the attachment holes on the fixture.
See Figure 9.
2.
Secure wire guard to fixture using (4) screws provided with wire
guard. See Figure 10.
FIGURE 9
FIGURE 10
|
866.924.3645
Date:
1-19-2023
