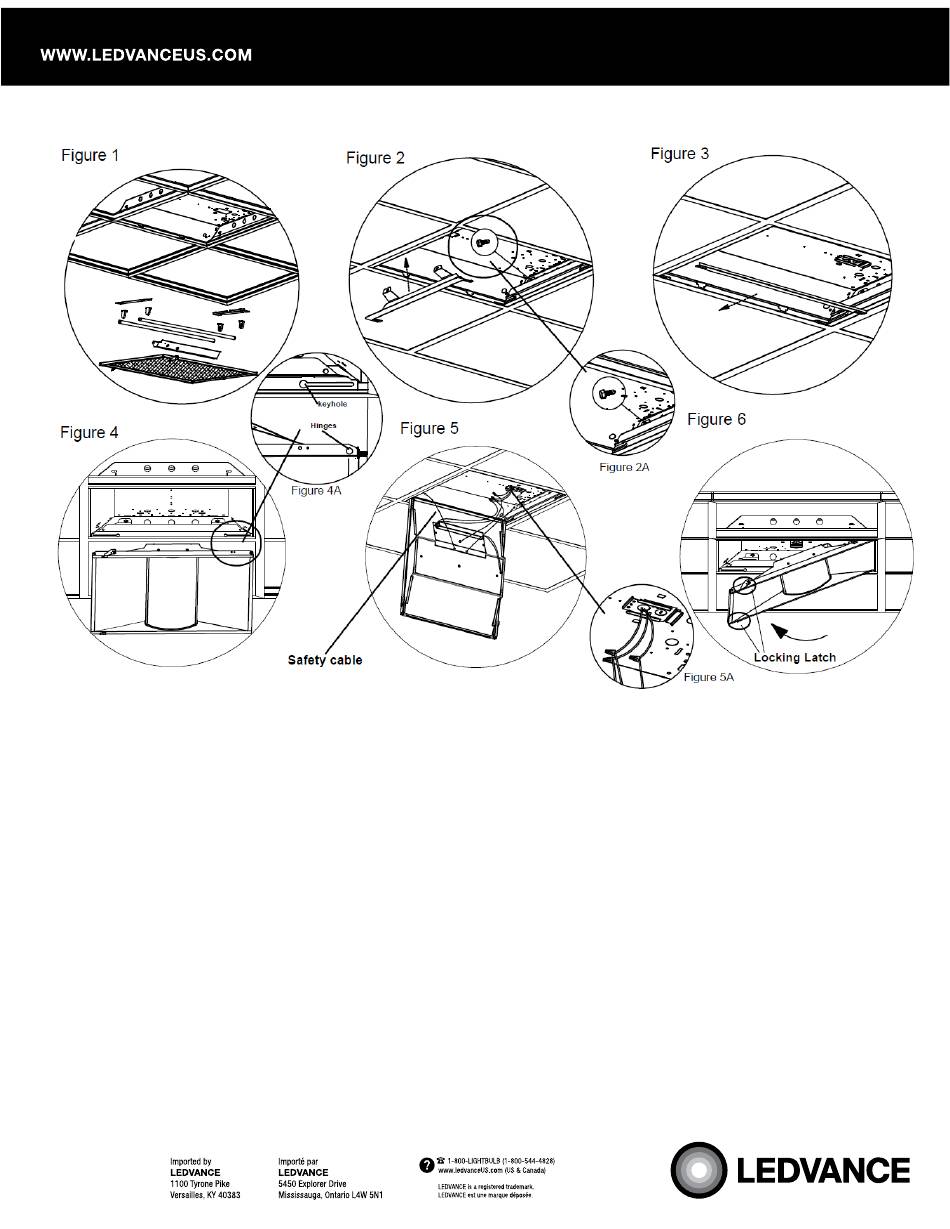

Installation Instructions
Prior to installation, disconnect all incoming power to the existing fixture.
1.
the troffer (lens/lens frame, reflectors/ballast covers brackets, lamps/lamp holders). Leave the supply wires and grounding leads.
(Fig. 1) NOTE: Follow all federal and local regulations when disposing of lamps and components.
2.
Install the end plates (A) at each end of the troffer housing by sliding it between the T-grid and the existing troffer housing and
secure them using the supplied #8x1/2" self-drilling screws (D) (Fig. 2).
3.
Install the side plates (B) into the slots in the end plates (Fig. 3).
Locate the door assembly body (C) into the keyholes in the end brackets, and then slide the door assembly body
4.
horizontally to the end of slots. (Fig.4)
Hook the safety cables into the holes positioned the end brackets (Fig. 5).
5.
A licensed electrician must wire the door kit in accordance with all National Electrical Code requirements as well as all
6.
State and Local requirements and regulations.
Rotate the door kit up into the troffer body and secure the door assembly by locking the latches riveted on each end of
7.
the assembled door frame. (Fig.6)
4120523
Remove existing hardware from inside
