Warning:
For a safe and reliable installation, use only
the accessories and screws provided with the device. Use
of other accessories and screws could result in damage to
the unit. Any damages incurred by using unapproved
accessories are not covered by the warranty.
Avertissement:
Pour une installation sûre et fiable,
utilisez uniquement les accessoires et les vis fournies avec
l'appareil. L'utilisation d'autres accessoires et vis pourrait
endommager l'appareil. Les dommages causés par
l'utilisation d'accessoires non approuvés ne sont pas
couverts par la garantie.
Caution:
The switch includes plug-in power supply (PSU) and
fan tray modules that are installed into its chassis. Make sure all
installed modules have a matching airflow direction (front-to-
back or back-to-front).
Attention:
Le commutateur comprend des modules
d'alimentation et de modules de ventilation installés dans son
châssis. Assurez-vous que tous les modules installés ont une
direction d'air adaptée (avant-arrière ou arrière-avant).
Note:
The switch has the Open Network Install Environment
(ONIE) software installer preloaded on the switch, but no switch
software image. Information about compatible switch software
www.edge-core.com
can be found at
Note:
The switch drawings in this document are for illustration
only and may not match your particular switch model.

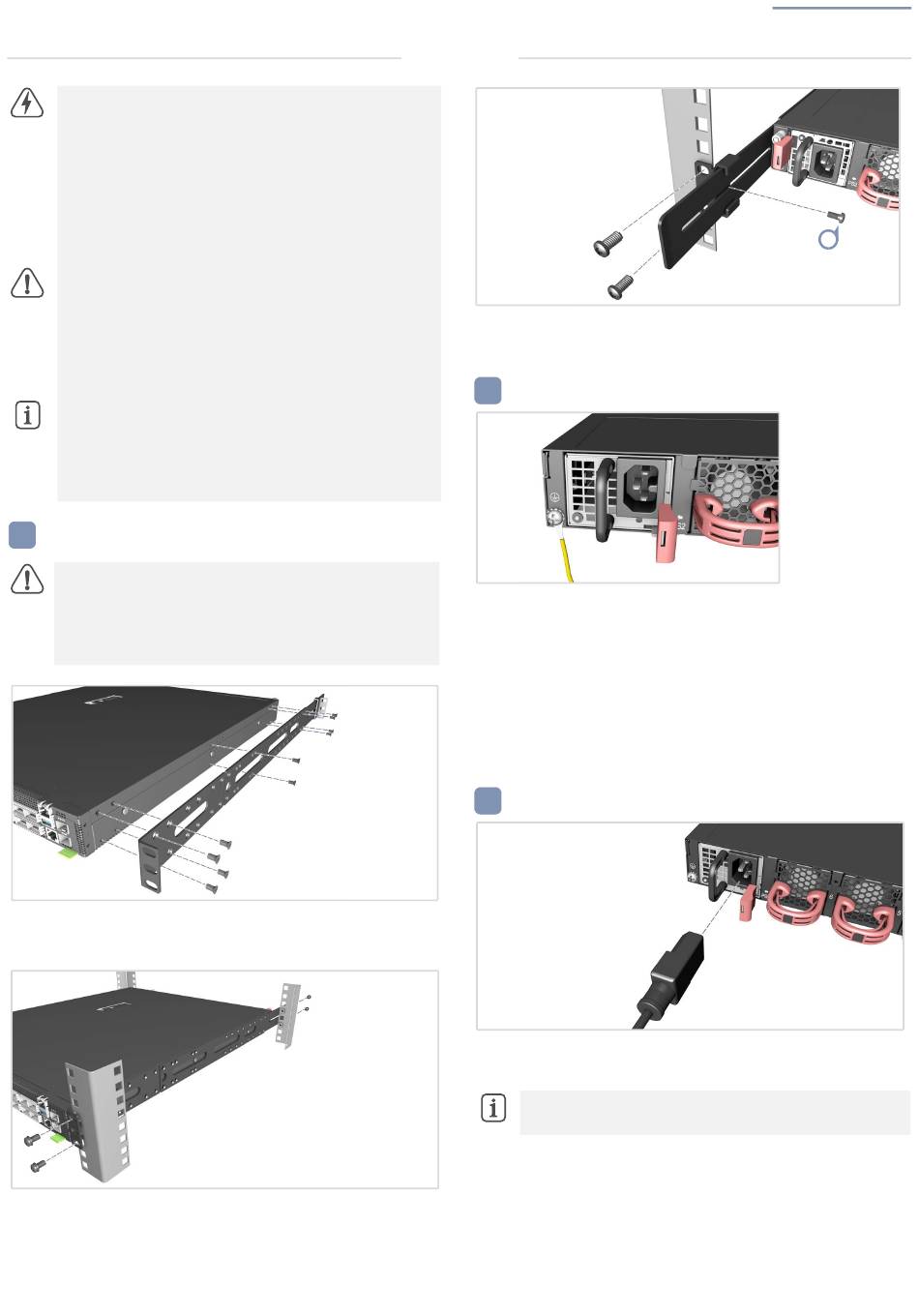

Mount the Switch
1
Caution:
This device must be installed in a
telecommunications room or a server room where only
qualified personnel have access.
Attention:
Cet appareil doit être installé dans une salle de
télécommunications ou une salle de serveurs où seul le
personnel qualifié a accès.
1. Attach the Brackets
Use the included screws to attach the front- and rear-post brackets.
2. Mount the Switch
Mount the switch in the rack and secure it with rack screws.
Installation
.
– 2 –
3. Lock the Rear-Post Brackets
Use the included screws to lock the position of the rear-post brackets.
2
Ground the Switch
Verify Rack Ground
Ensure the rack on which the switch is to be mounted is properly
grounded and in compliance with ETSI ETS 300 253. Verify that there is
a good electrical connection to the grounding point on the rack (no
paint or isolating surface treatment).
Attach Grounding Wire
Attach the included grounding wire to the grounding point on the
switch rear panel. Then connect the other end of the wire to rack
ground.
3
Connect Power
Install one or two AC or DC PSUs and connect them to an AC or DC
power source.
Note:
When using only one AC PSU to power a fully loaded
system, be sure to use a high-voltage source (220–240 VAC).
Quick Start Guide
