Operating instructions
Wireless doorbell RF1
Item no. 1462836
Intended use
This wireless doorbell set is equipped with acoustic and optical call signalling (flashlight). No further wiring
is necessary to connect sender and wireless doorbell. When the sender (with a bell button) is pushed, the
acoustic signal is converted into a radio signal and sent to the wireless doorbell. The wireless doorbell is
powered by 2 type C/baby batteries. To operate the bell button you need a lithium battery. The bell button of
the sender can be integrated into an existing bell system like an ordinary wired bell button.
This product is intended for indoor use only. Do not use it outdoors. Contact with moisture, e.g. in bathrooms,
must be avoided under all circumstances.
For safety and approval purposes, you must not rebuild and/or modify this product. If you use the product
for purposes other than those described above, the product may be damaged. In addition, improper use can
cause hazards such as short circuiting, fire, electric shock etc. Read the instructions carefully and keep them.
Make this product available to third parties only together with its operating instructions.
This product complies with the statutory national and European requirements. All company names and
product names are trademarks of their respective owners. All rights reserved.
Delivery content
• Wireless doorbell
• Sender
• 4 x screws
• 4 x dowels
• Operating instructions
• 1 x CR123A battery
Up-to-date Operating Instructions
Download the latest operating instructions at www.conrad.com/downloads or scan the QR code above.
Follow the instructions on the website.
Explanation of symbols
When drilling or screwing, make sure that no cables or wires are damaged. Danger of electric
shock and injury!
The symbol with the exclamation mark in the triangle is used to highlight important information
in these operating instructions. Always read this information carefully.
The arrow symbol indicates special information and advice on operation.
Safety instructions
Read the operating instructions carefully and especially observe the safety information.
If you do not follow the safety instructions and information on proper handling in this
manual, we assume no liability for any resulting personal injury or damage to property.
Such cases will invalidate the warranty/guarantee.
a) General information
• The device is not a toy. Keep it out of the reach of children and pets.
• Do not leave packaging material lying around carelessly. This may become dangerous playing
material for children.
• Protect the product from extreme temperatures, direct sunlight, strong jolts, high humidity,
moisture, flammable gases, vapours and solvents.
• Do not place the product under any mechanical stress.
• If it is no longer possible to operate the product safely, take it out of operation and protect it
from any accidental use. Safe operation can no longer be guaranteed if the product:
- is visibly damaged,
- is no longer working properly,
- has been stored for extended periods in poor ambient conditions or
- has been subjected to any serious transport-related stresses.
• Please handle the product carefully. Jolts, impacts or a fall even from a low height can damage
the product.
• The whole product is not allowed to get damp or wet, never touch it with wet hands!
• Consult an expert when in doubt about the operation, safety or connection of the device.
• Maintenance, modifications and repairs are to be performed exclusively by an expert or at a
qualified shop.
• If you have questions which remain unanswered by these operating instructions, contact our
technical support service or other technical personnel.
b) Batteries
• Correct polarity must be observed while inserting the batteries.
• Batteries should be removed from the device if it is not used for a long period of time to
avoid damage through leaking. Leaking or damaged batteries might cause acid burns when
in contact with skin, therefore use suitable protective gloves to handle corrupted batteries.
• Batteries must be kept out of reach of children. Do not leave batteries lying around, as there
is a risk that children or pets may swallow them.
• All batteries should be replaced at the same time. Mixing old and new batteries in the device
can lead to battery leakage and device damage.
• Batteries must not be dismantled, short-circuited or thrown into fire. Never recharge non-
rechargeable batteries. There is a risk of explosion!
All manuals and user guides at all-guides.com

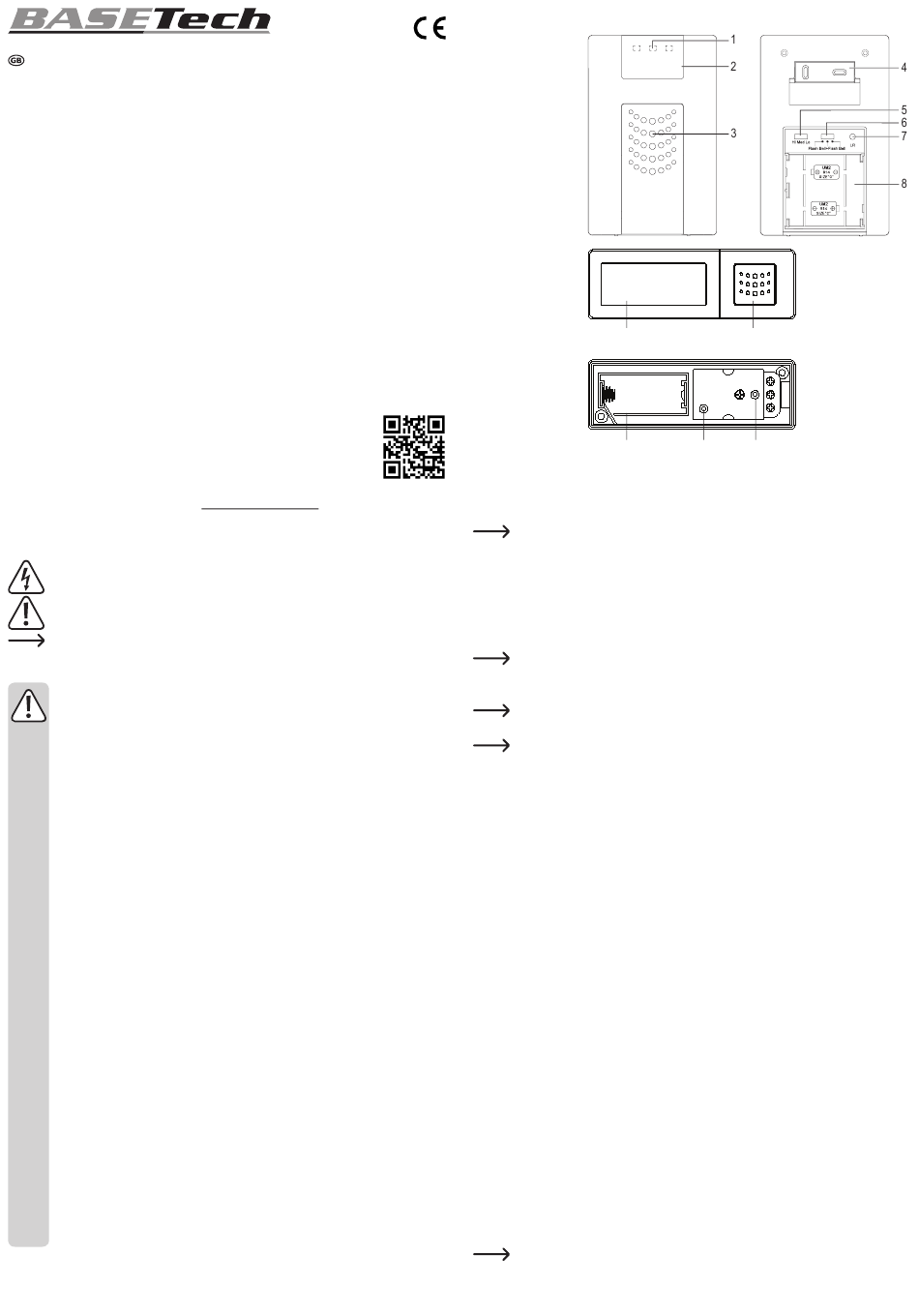

Operating elements
Wireless doorbell
1 Indicator light
2 Flashlight
3 Speaker
4 Mounting plate
5 Volume control
6 Slide switch for bell/
7 LR button
8 Battery compartment
Sender
9 Bell button
10 Name plate
11 Push button
12 Sound button
13 Battery compartment
Insert/replace the batteries
a) Wireless doorbell
• Move the cover of the battery compartment (8) in the direction indicated by the arrow by applying light
• Insert 2 new type C/baby batteries (not supplied) into the battery compartment (8). Observe the correct
• Reattach the battery compartment cover and lock the battery compartment. The cover must audibly lock
• A change of battery is necessary if the indicator light (1) on the front of the wireless doorbell flashes red.
b) Sender
• Open the battery compartment (13) by removing the housing from the bell button (sender). Press the
• Insert a lithium battery CR123A (included in delivery) into the battery compartment (13). Observe the
• The sender will send an RF-signal to the wireless doorbell. The wireless doorbell will respond by emitting
• The sender and wireless doorbell are ready to use.
Operation
a) First time of use
• After inserting the batteries in the wireless doorbell and in the sender, the sender automatically sets a
• This frequency will be transmitted to the wireless doorbell, which then emits an audible tone via its speaker (3)
b) Pair several senders with the wireless doorbell
You can pair a maximum of 4 senders with the wireless doorbell. Proceed as follows to pair the second
sender with the wireless doorbell:
• Open the battery compartment cover on the reverse of the wireless doorbell, by pushing it in the direction
• Hold the LR button (7) for approx. 4 seconds. The indicator light (1) on the front of the wireless doorbell
• To pair the second sender with the wireless doorbell, insert a battery into the sender.
• If you have already inserted the battery, press the sound button (12).
• If the wireless signal is correctly received, the wireless doorbell emits an acoustic and/or an optical signal
• Proceed as described above to pair the third and fourth sender.
flashlight
10
13
Insert the batteries into the wireless doorbell first.
pressure, and remove it from the reverse of the wireless doorbell.
polarity while doing so ("+" = positive; "-" = negative). When you insert the second battery two short beeps
are emitted.
into place.
It is possible to use rechargeable batteries. Due to the lower operating voltage (rechargeable
battery = 1.2 V, battery = 1.5 V) and the low capacity, the operating life is however reduced.
Note that the wireless doorbell will be reset if you change the batteries. You have to pair all
senders again with the wireless doorbell.
The batteries need to be replaced when the indicator light (1) on the front of the wireless doorbell
flashes red once every 6 seconds.
locking tongue inside the opening on the side of the housing to release, and pull away the whole housing.
correct polarity while doing so ("+" = positive; "-" = negative).
a sound signal. Reattach the housing and lock the battery compartment. Observe the orientation of all
three locking tongues. They must fit snugly in their positions on the housing. The housing must audibly
lock into place.
frequency.
and/or optical signal (flashlight); (see chapter "Settings, c) Bell/flashlight").
indicated by the arrow by applying light pressure.
turns orange.
(flashlight). This depends on the position of the switch (6); (see chapter "Settings, c) Bell/flashlight. The
indicator light (1) turns green. The pairing process has been successfully completed.
After pressing the LR button the sender has to be paired within 10 minutes. If several senders
are used you can set a different ring tone for each sender. By doing so you can tell which sender
sent the signal to the wireless doorbell by the sound it makes.
9
12
11
