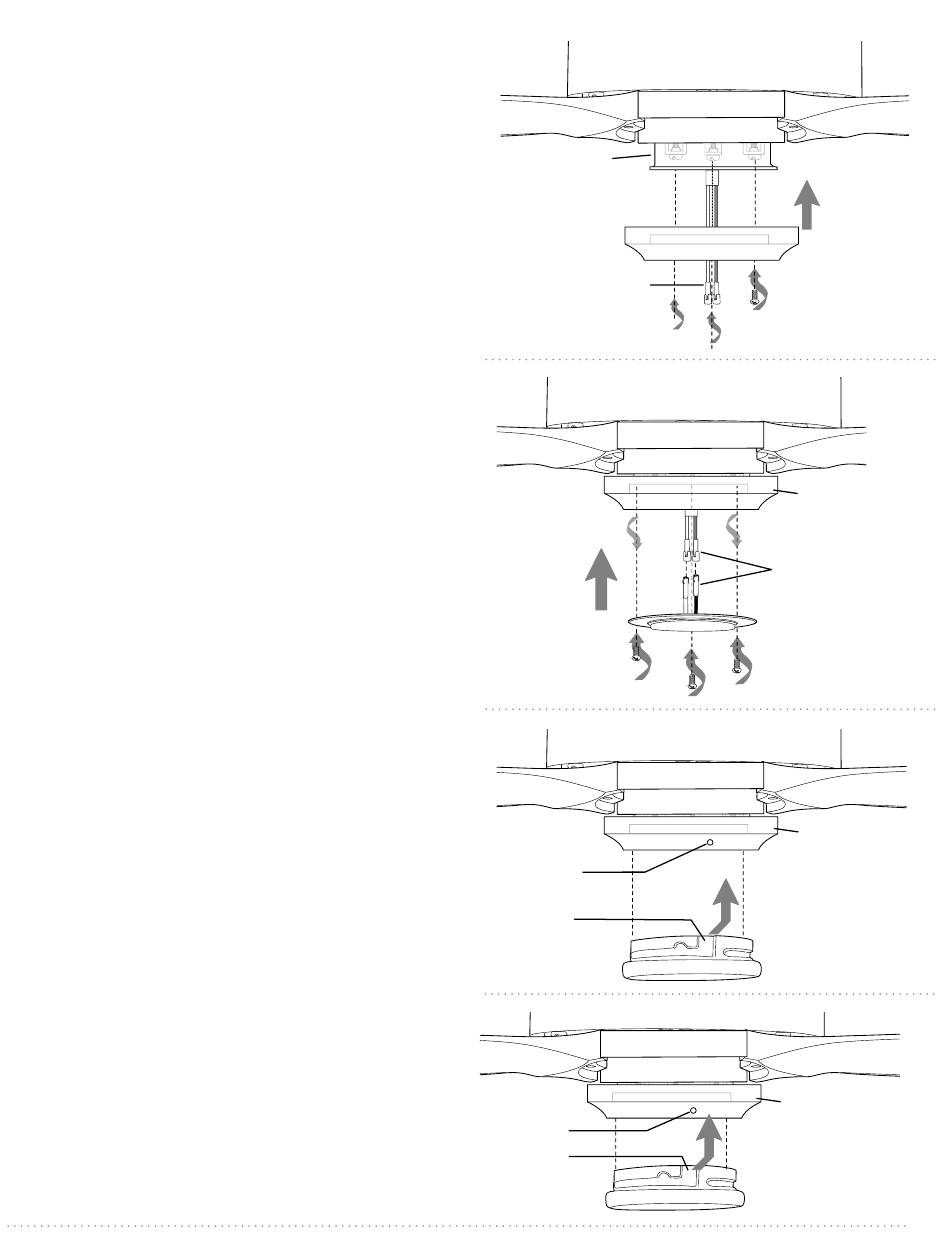

9. Light Kit Assembly.
Remove 1 screw from motor plate (on underside
of motor housing) and partially loosen the other
2 screws. Align slotted holes in fitter plate with
loosened screws in motor plate, allowing molex
connections from motor housing to come
through hole in middle of fitter plate. Twist
fitter plate to lock. Re-insert screw that was
just removed and tighten all 3 screws securely
with a Phillips screwdriver .
Remove 3 screws from underside of fitter plate.
Connect WHITE wire from motor housing to
WHITE wire from LED light kit. Connect BLUE (or
BLACK) wire from motor housing to BLACK wire
from LED light kit. Be sure molex connections
snap together securely.
Carefully arrange wiring within fitter plate. Align
holes in LED light kit with holes in fitter plate.
Re-insert screws that were previously removed
and securely tighten all 3 screws with a Phillips
screwdriver.
If you wish to USE the light, align grooves on
shade with nodules on inside of fitter plate and
push up gently on shade. Turn shade to the
RIGHT (clockwise) until shade slides completely
into place.
NOTE: Pull down VERY GENTLY on shade to make
sure that shade is secure.
If you do NOT wish to use the light,
on metal cover and align with nodules inside
fitter plate. Gently push up on metal cover and
turn to the
RIGHT (clockwise)
turns.
WARNING: Metal cover will be HOT if light is left
on.
locate slots
until it no longer
page 9
motor plate
molex
connections
LED light kit
nodules
slots
nodules
slots
motor
housing
fitter plate
motor
housing
fitter plate
molex connections
motor
housing
fitter plate
shade
motor housing
fitter plate
metal cover
