NGS Technology DOMO Mode D'emploi page 7

USER'S MANUAL
HOW TO cOnfIgURE yOUR cOMPUTER/LAPTOP
WITH THE nETWORk IP ADDRESS

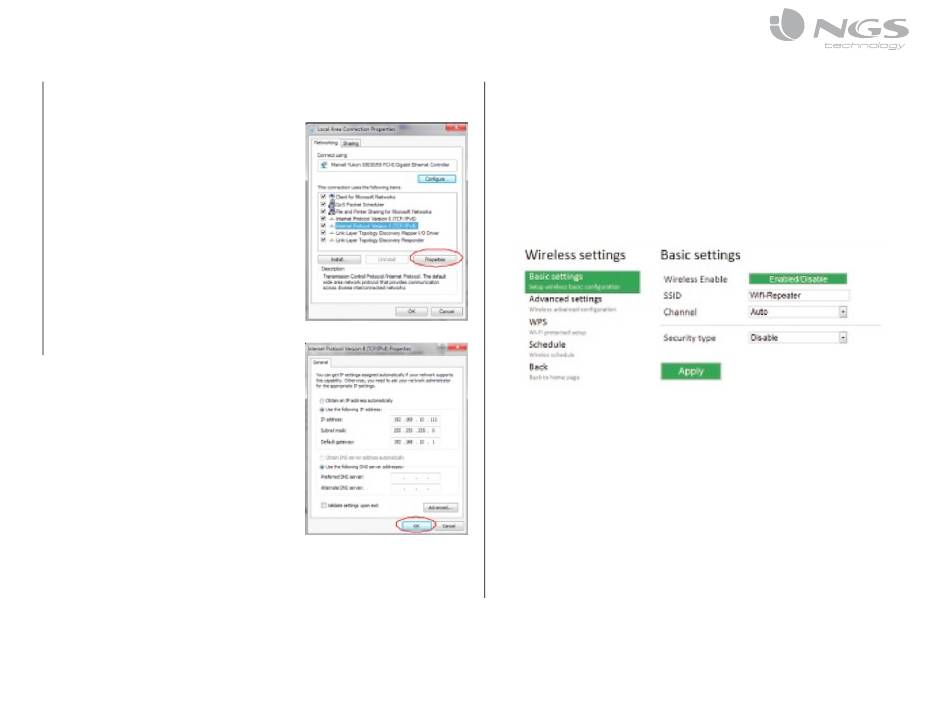

1. Log on to the computer.
2. Click the "Start" button (it should be
located at the lower-left corner of your
screen), then click "Control Panel". Click
"View Network Status and Tasks", and
then click "Manage Network Connections".
Right-click "Local Area Network", then
select "Properties". When the "Local Area
Connection Properties" window appears,
select "Internet Protocol Version 4 (TCP/
IPv4)" and then click "Properties".
3. Setting IP address manually: Type IP
address is 192.168.10.x (x is from 2 to 254),
and Subnet mask is 255.255.255.0.
Type the Router's LAN IP address (the
default IP is 192.168.10.1) into the Default
gateway field.
All manuals and user guides at all-guides.com
cOnfIgURIng vIA WEB BROWSER
Wireless Base configuration - AP Mode
In AP mode and click "Wireless → Basic Settings" located at the web
management interface, the following message will be displayed on your web
browser:
You could configure the minimum number of Wireless settings for
communication, such as Network Name (SSID) and Channel. The Access Point
can be set simply with only the minimum setting items.
Wireless Enable
SSID
Channel
Security type
Security key
Click "Apply" button, the Domo Repeater will restart.
7
Wireless On/Off
The "SSID" of your wireless network
Auto (recommend)
Setup the wireless security and encryption to
Prevent from unauthorized access and monitoring
Supports 64/128-bit WEP, WPA, WPA2,
WPA/WPA2 encryption methods
The "Password" of your wireless network
