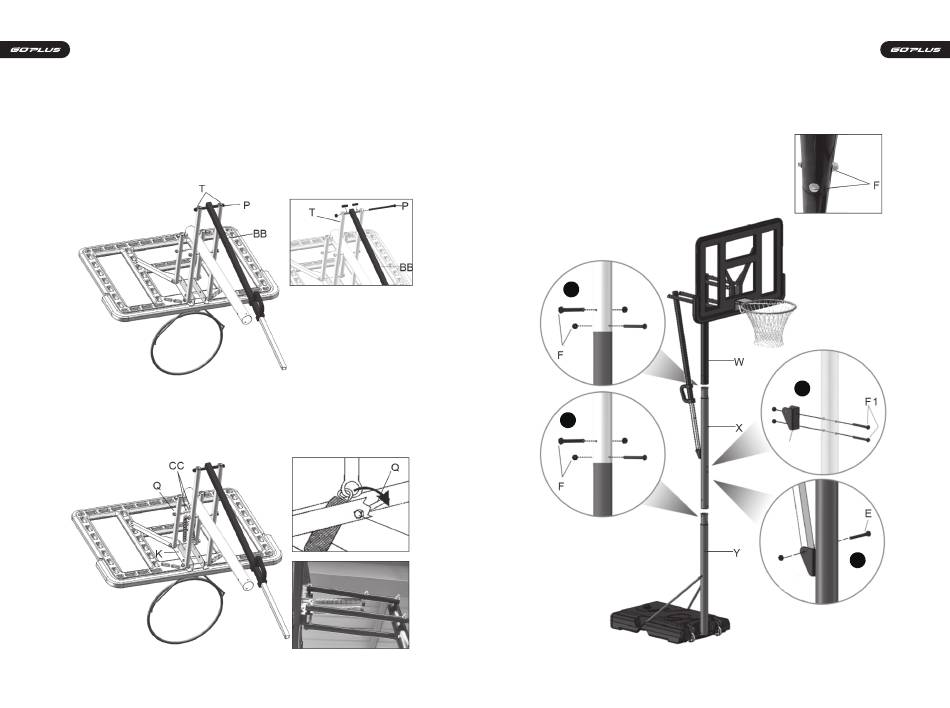

5)Install the long support rod, lifting rod and spring:
As shown, Fix the long support rod (T) and lifting rod (BB)
with screws (P). Then hook one end of the spring (CC) onto
any small hole of the Board Bracket (K), and then use a
2mm thick rope loop to cover the other end of the spring
(CC) and pull it towards the screw (Q) in the middle of the
short support rod (S).
12
6) Mounting the base bracket:
As shown, fix top pole (W) and middle pole (X) together by 2
pcs of bolt (F), and then fix middle pole (X) and bottom pole
(Y) together by 2 pcs bolt (F). After that, fix the triangular
fixed block (AA) on the middle pipe (X) with bolts (F1), and
finally fix the lifting rod (BB) and triangular
block (AA) with bolt (E).
1
2
WXY Tube
connecting
mode
3
AA
4
