GE Lumination IS Serie Guide D'installation page 5

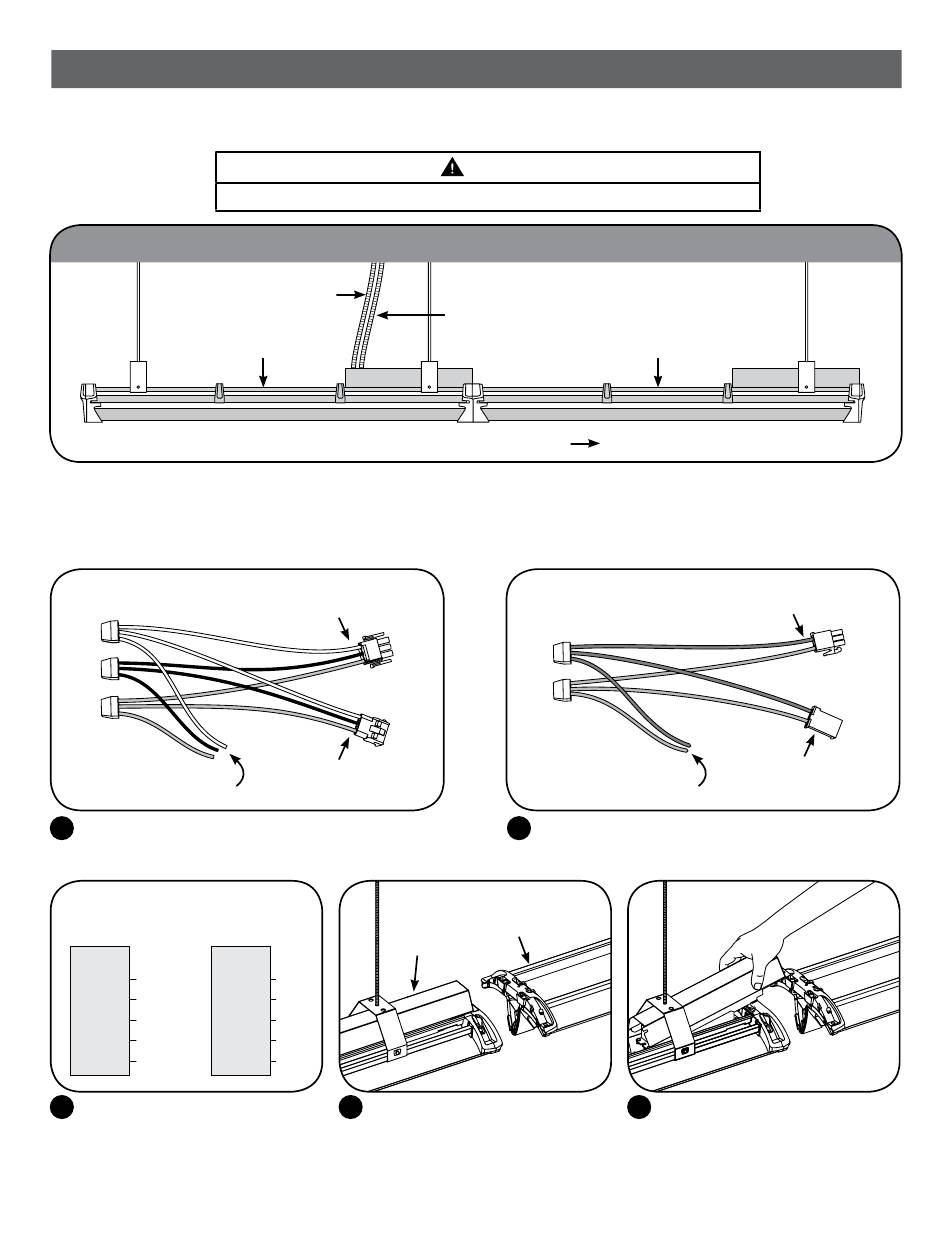

Installation of a Continuous Row using a Starter Kit
Use starter kits as a convenient way to install continuous rows. Starter kits are ordered separately (SKU 93018007 provides parts for
1 continuous row, SKU 93022791 provides parts for 10 continuous rows).
First fixture in
Continuous runs must begin with a first unit that is suspended at both ends. Use provided end-caps from starter kits to begin and
terminate the row.
For mechanical installation, follow steps 1-6 described earlier in these install instructions.
Connect to AC line using
separate UL listed wire nuts
1
Use provided starter power harness as an extension
for the first fixture in the row.
Wiring Diagrams
0-10V
DALI
Fixture Fixture
Line Black
Neutral White
Ground Green
DALI Violet/White (0-10V) +
DALI Violet (0-10V) –
3
THERE IS A REqUIRED DIRECTION FOR ASSEMBLING A CONTINUOUS ROW.
AC line
the row
Direction of continuous row installation
Connect to power harness in
driver enclosure
Connect to next fixture in
continuous row
Previously
hung unit
Line Black
Neutral White
Ground Green
Violet
Grey
4
To add a continuous unit to a continuous
run, first suspend the new unit as it is done
in steps 9 and 10 for the independent unit.
Position the non-power-supply end of the
luminaire near the power-supply end of
the previously hung luminaire.
CAUTION
Ceiling
Dimming line
Next fixture in
(optional)
Connect to dimming line
(optional) using separate
UL listed wire nuts
2
A dimming starter harness is provided to optionally
connect the dimming through wiring to the dimming line.
New unit
5
the row
Connect to dimming harness
in driver enclosure
Connect to next fixture in
continuous row
5
Remove the PSU cover from the
previously hung luminaire if present.
